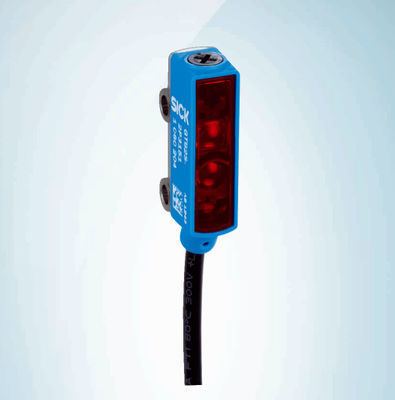

G2 GTB2S-N1451 SICK Laser Sensor De Proximidad Inductivo Part No 1060203

G2 GTB2S-N1451 SICK Laser Sensor De Proximidad Inductivo Part No 1060203

MOQ: 1
Price: 120$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
GTB2S-N1451
Dimensions (W x H x D):
7.7 Mm X 27.5 Mm X 13.5 Mm
Wave Length:
640 Nm
Switching Frequency:
800 Hz
Enclosure Rating:
IP67
Ambient Operating Temperature:
–25 °C ... +50 °C
Ambient Temperature, Storage:
–40 °C ... +75 °C
Highlight:

G2 GTB2S-N1451 SICK Laser Sensor

,

1060203 SICK Laser Sensor

Product Description
Features
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 7.7 mm x 27.5 mm x 13.5 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 120 mm 1)
Sensing range 25 mm ... 90 mm 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 3.5 mm (50 mm)
Wave length 640 nm
Adjustment Potentiometer, 3 turns
1) Object with 90% remission (based on standard white, DIN 5033).
2) Object with 6 % remission.
3) Average service life: 100,000 hat TU = +25 °C.
Mechanics/electronics
Supply voltage UB 10 V DC ... 30 V DC 1)
1) May not fall below or exceed UV tolerances.
Without load.

2)
3)
4) Signal transit time with resistive load.
With light/dark ratio 1:1.
Do not bend below 0 °C.

5)
6)
7) A = VS connections reverse-polarity protected.
C = interference suppression.

8)
9) D = outputs overcurrent and short-circuit protected.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-11-11 13:41:20
  Subject to change without notice
  GTB2S-N1451 | G2
  MINIATURE PHOTOELECTRIC SENSORS
Ripple < 5 Vpp 2)
Current consumption 20 mA 3)
Switching output NPN
Switching mode Light switching
Output current Imax. ≤ 50 mA
Response time < 0.6 ms 4)
Switching frequency 800 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material Plastic, PVC
Cable diameter Ø 3 mm
Circuit protection A 7)
C 8)
D 9)

Weight 34.2 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +50 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) Signal transit time with resistive load.
5) With light/dark ratio 1:1.
6) Do not bend below 0 °C.
7) A = VS connections reverse-polarity protected.
8) C = interference suppression.
9) D = outputs overcurrent and short-circuit protected.
Safety-related parameters
MTTFD 3,378 years
DCavg 0 %
Classifications
ECLASS 5.0 27270904
ECLASS 5.1.4 27270904
ECLASS 6.0 27270904
ECLASS 6.2 27270904
ECLASS 7.0 27270904
ECLASS 8.0 27270904
ECLASS 8.1 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
2024-11-11 13:41:20 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
GTB2S-N1451 | G2
MINIATURE PHOTOELECTRIC SENSORS
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
ETIM 7.0 EC002719
ETIM 8.0 EC002719
UNSPSC 16.0901 39121528
