MOQ: | 1 |
Price: | 223$/piece |
Standard Packaging: | 70*40*40mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | ||||||||||||||||||||||||

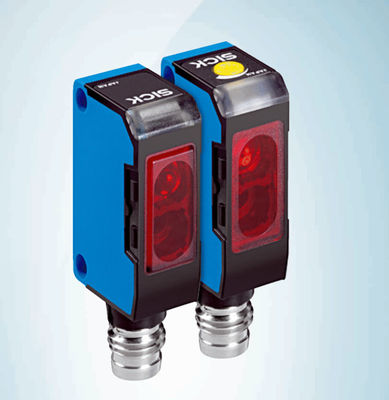

Functional principle | Through-beam photoelectric sensor | |||||||||||||||||||||||
Dimensions (W x H x D) | 10 mm x 28 mm x 17.5 mm | |||||||||||||||||||||||
Housing design (light emission) | Rectangular | |||||||||||||||||||||||
Sensing range max. | 0 m ... 4.4 m | |||||||||||||||||||||||
Sensing range | 0 m ... 4 m | |||||||||||||||||||||||
Focus | 6° | |||||||||||||||||||||||
Type of light | Visible red light | |||||||||||||||||||||||
Light source | LED 1) | |||||||||||||||||||||||
Angle of dispersion | 6° | |||||||||||||||||||||||
Adjustment | Potentiometer, 270° | |||||||||||||||||||||||
1) Average service life: 100,000 hat TU = +25 °C. | ||||||||||||||||||||||||
Mechanics/electronics | ||||||||||||||||||||||||
Supply voltage UB | 10 V DC ... 30 V DC 1) | |||||||||||||||||||||||
Ripple | ± 10 % 2) | |||||||||||||||||||||||
Current consumption | 15 mA, 20 mA | 3) 4) | ||||||||||||||||||||||
Switching output | PNP | |||||||||||||||||||||||
1) Limit values. | ||||||||||||||||||||||||
2) May not fall below or exceed UV tolerances. 3) Sender. 4) Receiver. |
||||||||||||||||||||||||
5) Signal transit time with resistive load. 6) With light/dark ratio 1:1. 7) Do not bend below 0 °C. |
||||||||||||||||||||||||
8) A = VS connections reverse-polarity protected. 9) B = inputs and output reverse-polarity protected. 10) C = interference suppression. |
||||||||||||||||||||||||
11) D = outputs overcurrent and short-circuit protected. | ||||||||||||||||||||||||
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-10-25 15:14:41 | ||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||
WS/WE150-P132 | W150 | ||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||
Switching mode | Light/dark switching | |||||||||||||||||||||||
Switching modeselector | Selectable via L/Dcontrol cable | |||||||||||||||||||||||
Output current Imax. | ≤ 100 mA | |||||||||||||||||||||||
Response time | ≤ 0.5 ms 5) | |||||||||||||||||||||||
Switching frequency | 1,000 Hz 6) | |||||||||||||||||||||||
Angle of reception | 15° | |||||||||||||||||||||||
Connection type | Cable, 4-wire, 2 m 7) | |||||||||||||||||||||||
Cable material | Plastic, PVC | |||||||||||||||||||||||
Conductor cross section | 0.18 mm² | |||||||||||||||||||||||
Circuit protection | A 8) B 9) C 10) D 11) |
|||||||||||||||||||||||
Protection class | II | |||||||||||||||||||||||
Weight | 44 g | |||||||||||||||||||||||
Enclosure rating | IP67 | |||||||||||||||||||||||
Items supplied | BEF-W150-A mounting bracket | |||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +55 °C | |||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +75 °C | |||||||||||||||||||||||
UL File No. | NRNT2.E128350 & NRNT8.E128350 | |||||||||||||||||||||||
1) Limit values. | ||||||||||||||||||||||||
2) May not fall below or exceed UV tolerances. 3) Sender. 4) Receiver. |
||||||||||||||||||||||||
5) Signal transit time with resistive load. 6) With light/dark ratio 1:1. 7) Do not bend below 0 °C. |
||||||||||||||||||||||||
8) A = VS connections reverse-polarity protected. 9) B = inputs and output reverse-polarity protected. 10) C = interference suppression. |
||||||||||||||||||||||||
11) D = outputs overcurrent and short-circuit protected. Safety-related parameters |
||||||||||||||||||||||||
MTTFD | 1,452 years | |||||||||||||||||||||||
DCavg | 0 % | |||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||
ECLASS 5.0 | 27270901 | |||||||||||||||||||||||
ECLASS 5.1.4 | 27270901 | |||||||||||||||||||||||
ECLASS 6.0 | 27270901 | |||||||||||||||||||||||
ECLASS 6.2 | 27270901 | |||||||||||||||||||||||
ECLASS 7.0 | 27270901 | |||||||||||||||||||||||
ECLASS 8.0 | 27270901 | |||||||||||||||||||||||
ECLASS 8.1 | 27270901 | |||||||||||||||||||||||
ECLASS 9.0 | 27270901 | |||||||||||||||||||||||
ECLASS 10.0 | 27270901 | |||||||||||||||||||||||
2024-10-25 15:14:41 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3 | ||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||
WS/WE150-P132 | W150 | ||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||
ECLASS 11.0 | 27270901 | |||||||||||||||||||||||
ECLASS 12.0 | 27270901 | |||||||||||||||||||||||
ETIM 5.0 | EC002716 | |||||||||||||||||||||||
ETIM 6.0 | EC002716 | |||||||||||||||||||||||
ETIM 7.0 | EC002716 | |||||||||||||||||||||||
ETIM 8.0 | EC002716 | |||||||||||||||||||||||
UNSPSC 16.0901 | 39121528 |
