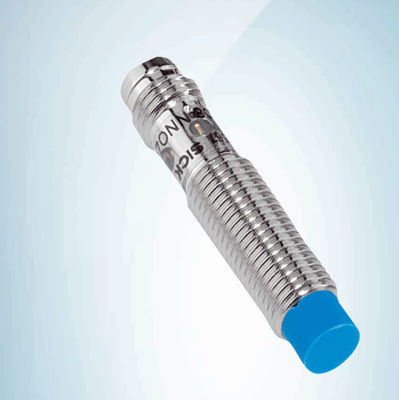

MOQ: | 1 |
Price: | $116/piece |
Standard Packaging: | 80*50*50mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | ||||||||||||||||||||
Housing | Cylindrical thread design | |||||||||||||||||||
Housing | Short-body | |||||||||||||||||||
Thread size | M8 x 1 | |||||||||||||||||||
Diameter | Ø 8 mm | |||||||||||||||||||
Sensing range Sn | 4 mm | |||||||||||||||||||
Safe sensing range Sa | 3.24 mm | |||||||||||||||||||
Installation type | Non-flush | |||||||||||||||||||
Switching frequency | 4,000 Hz | |||||||||||||||||||
Connection type | Connector M8, 3-pin | |||||||||||||||||||
Switching output | PNP | |||||||||||||||||||
Output function | NO | |||||||||||||||||||
Electrical wiring | DC 3-wire | |||||||||||||||||||
Enclosure rating | IP67 1) | |||||||||||||||||||
1) According to EN 60529. | ||||||||||||||||||||
Mechanics/electronics | ||||||||||||||||||||
Supply voltage | 10 V DC ... 30 V DC | |||||||||||||||||||
Ripple | ≤ 10 % | |||||||||||||||||||
Voltage drop | ≤ 2 V 1) | |||||||||||||||||||
Time delay before availability | ≤ 100 ms | |||||||||||||||||||
Hysteresis | 5 % ... 15 % | |||||||||||||||||||
1) | At Ia max. | |||||||||||||||||||
2) | Ub and Ta constant. | |||||||||||||||||||
3) | Of Sr. | |||||||||||||||||||
2 INDUCTIVE PROXIMITY SENSORS | SICK Product data sheet | 2022-03-18 11:57:31 | ||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||
IME08-04NPSZT0K | IME | ||||||||||||||||||||
INDUCTIVE PROXIMITY SENSORS | ||||||||||||||||||||
Reproducibility | ≤ 2 % 2) 3) | |||||||||||||||||||
Temperature drift (of Sr) | ± 10 % | |||||||||||||||||||
EMC | According to EN 60947-5-2 | |||||||||||||||||||
Continuous current Ia | ≤ 200 mA | |||||||||||||||||||
Short-circuit protection | ✔ | |||||||||||||||||||
Reverse polarity protection | ✔ | |||||||||||||||||||
Power-up pulse protection | ✔ | |||||||||||||||||||
Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm | |||||||||||||||||||
Ambient operating temperature | –25 °C ... +75 °C | |||||||||||||||||||
Housing material | Brass, nickel-plated | |||||||||||||||||||
Sensing face material | Plastic, PA 66 | |||||||||||||||||||
Housing length | 41 mm | |||||||||||||||||||
Thread length | 21 mm | |||||||||||||||||||
Tightening torque, max. | ≤ 5 Nm | |||||||||||||||||||
Items supplied | Mounting nut, brass, nickel-plated (2x) | |||||||||||||||||||
UL File No. | NRKH.E181493 | |||||||||||||||||||
1) At Ia max. | ||||||||||||||||||||
2) Ub and Ta constant. | ||||||||||||||||||||
3) Of Sr. | ||||||||||||||||||||
Safety-related parameters | ||||||||||||||||||||
MTTFD | 1,735 years | |||||||||||||||||||
DCavg | 0 % | |||||||||||||||||||
Reduction factors | ||||||||||||||||||||
Note | The values are reference values which may vary | |||||||||||||||||||
St37 steel (Fe) | 1 | |||||||||||||||||||
Stainless steel (V2A, 304) | Approx. 0.8 | |||||||||||||||||||
Aluminum (Al) | Approx. 0.45 | |||||||||||||||||||
Copper (Cu) | Approx. 0.4 | |||||||||||||||||||
Brass (Br) | Approx. 0.4 | |||||||||||||||||||
Installation note | ||||||||||||||||||||
Remark | Associated graphic see "Installation" | |||||||||||||||||||
A | 8 mm | |||||||||||||||||||
B | 18 mm | |||||||||||||||||||
C | 8 mm | |||||||||||||||||||
D | 12 mm | |||||||||||||||||||
E | 8 mm | |||||||||||||||||||
F | 32 mm | |||||||||||||||||||
Classifications | ||||||||||||||||||||
ECl@ss 5.0 | 27270101 | |||||||||||||||||||
ECl@ss 5.1.4 | 27270101 | |||||||||||||||||||
2022-03-18 11:57:31 | Product data sheet INDUCTIVE PROXIMITY SENSORS | SICK 3 | ||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||
IME08-04NPSZT0K | IME | ||||||||||||||||||||
INDUCTIVE PROXIMITY SENSORS | ||||||||||||||||||||
ECl@ss 6.0 | 27270101 | |||||||||||||||||||
ECl@ss 6.2 | 27270101 | |||||||||||||||||||
ECl@ss 7.0 | 27270101 | |||||||||||||||||||
ECl@ss 8.0 | 27270101 | |||||||||||||||||||
ECl@ss 8.1 | 27270101 | |||||||||||||||||||
ECl@ss 9.0 | 27270101 | |||||||||||||||||||
ECl@ss 10.0 | 27270101 | |||||||||||||||||||
ECl@ss 11.0 | 27270101 | |||||||||||||||||||
ETIM 5.0 | EC002714 | |||||||||||||||||||
ETIM 6.0 | EC002714 | |||||||||||||||||||
ETIM 7.0 | EC002714 | |||||||||||||||||||
ETIM 8.0 | EC002714 | |||||||||||||||||||
UNSPSC 16.0901 | 39122230 |
