MOQ: | 1 |
Price: | 102$/piece |
Standard Packaging: | 110*60*60mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | |||||||||||||

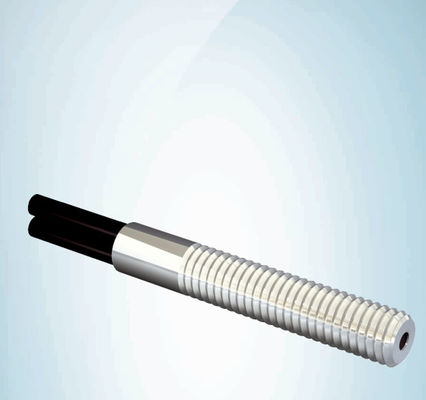

Device type | Fiber-optic cables | ||||||||||||
Functional principle | Proximity system | ||||||||||||
Fiber-optic head design | Threaded sleeve | ||||||||||||
Application | Standard | ||||||||||||
Compatible fiber-optic amplifiers | WLL80, WLL180, GLL170(T) | ||||||||||||
Sensing range max. | 710 mm (Sensing range of WLL80 at 8 ms) | ||||||||||||
Minimal object diameter | 0.015 mm 1) | ||||||||||||
Optical fiber head Angle of dispersion Integrated lens Compatibility tip adapters |
60° No Yes |
||||||||||||
Optical fiber Compatibility with infrared light Optical fiber cable can be shortened Adapter end sleeves required |
No ✔ Yes |
||||||||||||
Included with delivery | Mounting, 2 x M3 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) |
||||||||||||
1) Minimum detectable object was determined at optimum measuring distance and optimum setting. Mechanics |
|||||||||||||
Optical fiber head Light emission Thread diameter (housing) |
Axial M3 |
||||||||||||
Optical fiber | |||||||||||||
Fiber length | 2,000 mm | ||||||||||||
Bending radius | 15 mm | ||||||||||||
Dynamic flexibility (robotics) | No | ||||||||||||
Outside diameter, optical fiber cable connection | 1.3 mm | ||||||||||||
Fiber arrangement | Coaxial | ||||||||||||
Core structure | S: Ø 0,5 mm, R: 9 x Ø 0,25 mm 1) Coaxial | ||||||||||||
Material | |||||||||||||
Optical fiber head | Stainless steel | ||||||||||||
1) | C = Coaxial, S = Sender, E = Receiver. | ||||||||||||
2 FIBER-OPTIC SENSORS | SICK Product data sheet | 2025-02-20 18:42:21 | |||||||||||||
Subject to change without notice | |||||||||||||
LL3-DT01 | Fiber-optic cables | |||||||||||||
FIBERS | |||||||||||||
Sheath Fibers |
Polyethylen (PE) Polymethylmethacrylat (PMMA) |
||||||||||||
Weight | 20 g | ||||||||||||
1) C = Coaxial, S = Sender, E = Receiver. | |||||||||||||
Ambient data | |||||||||||||
Ambient operating temperature | –40 °C ... +70 °C | ||||||||||||
Classifications | |||||||||||||
ECLASS 5.0 | 27270905 | ||||||||||||
ECLASS 5.1.4 | 27270905 | ||||||||||||
ECLASS 6.0 | 27270905 | ||||||||||||
ECLASS 6.2 | 27270905 | ||||||||||||
ECLASS 7.0 | 27270905 | ||||||||||||
ECLASS 8.0 | 27270905 | ||||||||||||
ECLASS 8.1 | 27270905 | ||||||||||||
ECLASS 9.0 | 27270905 | ||||||||||||
ECLASS 10.0 | 27270905 | ||||||||||||
ECLASS 11.0 | 27270905 | ||||||||||||
ECLASS 12.0 | 27270905 | ||||||||||||
ETIM 5.0 | EC002651 | ||||||||||||
ETIM 6.0 | EC002651 | ||||||||||||
ETIM 7.0 | EC002651 | ||||||||||||
ETIM 8.0 | EC002651 | ||||||||||||
UNSPSC 16.0901 | 39121528 | ||||||||||||
Sensing ranges with WLL80 | |||||||||||||
Operating mode 16 µs | 45 mm | ||||||||||||
Operating mode 70 µs | 170 mm | ||||||||||||
Operating mode 250 µs | 265 mm | ||||||||||||
Operating mode 500 µs | 320 mm | ||||||||||||
Operating mode 1 ms | 380 mm | ||||||||||||
Operating mode 2 ms | 505 mm | ||||||||||||
Operating mode 8 ms | 710 mm | ||||||||||||
Sensing ranges with WLL180T | |||||||||||||
Operating mode 16 µs | 40 mm | ||||||||||||
Operating mode 70 µs | 130 mm | ||||||||||||
Operating mode 250 µs | 200 mm | ||||||||||||
Operating mode 2 ms | 350 mm | ||||||||||||
Operating mode 8 ms | 600 mm | ||||||||||||
Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
