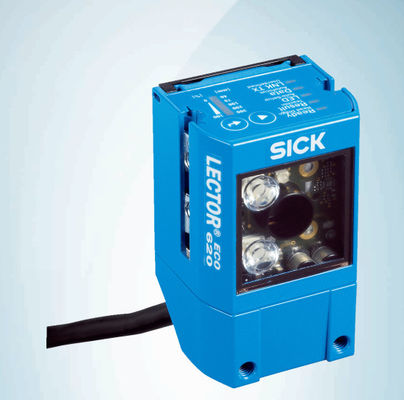

Lector62x ICR620E-H12013 ECO - SICK Miniature Photoelectric Sensor | part no : 1054507

Lector62x ICR620E-H12013 ECO - SICK Miniature Photoelectric Sensor | part no : 1054507

MOQ: 1
Price: 350$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
ICR620E-H12013
Dimensions (L x W x H):
71 Mm X 43 Mm X 35.6 Mm
Distancia De Lectura:
40 Mm ... 1.500 Mm
Weight:
170 G
Product Description
Detailed technical data
Features
Optical focus Adjustable focus (electric)
Sensor CMOS matrix sensor, grayscale values
Sensor resolution 752 px x 480 px (WVGA)
Illumination Integrated
Illumination color Red, LED, Visible, 617 nm
LED class 1 (IEC 62471:2006-07, EN 62471:2008-09)
Feedback spot LED,Visible, green, 525 nm
Laser class EN 60825-1:2014+A11:2021
Lens

Focal length
7 mm
Reading distance 40 mm ... 1,500 mm 1) 2)
Scanning frequency 25 Hz, WVGA resolution
Code resolution ≥ 0.1 mm 1)
1) Valid for Data Matrix, PDF417, and 1D codes with good print quality.
2) For details see reading field diagram.
Mechanics/electronics
Connection type 1 x 15-pin D-Sub HD male connector (0.9 m)
Supply voltage 10 V DC ... 30 V DC
Power consumption Typ. 3 W
Output current ≤ 100 mA
1) Swivel connector is 17.8 mm longer.
2 IMAGE-BASED CODE READERS | SICK Product data sheet | 2024-11-19 14:44:40
  Subject to change without notice
  ICR620E-H12013 ECO | Lector62x
  IMAGE-BASED CODE READERS
Housing material Aluminum die cast
Housing color Light blue (RAL 5012)
Window material Glass
Enclosure rating IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
Protection class III
Electrical safety EN 60950-1 (2006-04) / EN 60950-1/A11 (2009-03)
Weight 170 g
Dimensions (L x W x H) 71 mm x 43 mm x 35.6 mm 1)
MTBF 75,000 h
1) Swivel connector is 17.8 mm longer.
Performance
Readable code structures 1D codes, Stacked, 2D codes
Bar code types GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code
39, Code 128, Codabar, Code 32, Code 93

2D code types Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code
No. of codes per reading interval 1 ... 50
No. of characters per reading interval 500 (for multiplexer function in CAN operation)
Internal image storage 135 MB
Transport speed 2 m/s
Interfaces
PROFINET
Type of fieldbus integration Optional over external fieldbus module CDF600-2
Function PROFINET Single Port, PROFINET Dual Port
EtherCAT
Type of fieldbus integration Optional over external fieldbus module CDF600-2
Serial ✔, RS-232, RS-422
Function Data interface (read result output), Service interface
Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
CAN
Function SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
Data transmission rate 20 kbit/s ... 1 Mbit/s
CANopen
Data transmission rate 20 kbit/s ... 1 Mbit/s
PROFIBUS DP
Type of fieldbus integration Optional over external fieldbus module CDF600-2
Digital inputs 4 (“Sensor 1”,“Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/
CDM420)

Digital outputs 4 (“Result 1”,“Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/
CDM420)

Reading pulse Digital inputs, non-powered, serial interface, CAN, auto pulse, presentation mode
Optical indicators 16 LEDs (5 x status display, 10 x LED bar graph, 1 green feedback spot)
Acoustic indicators Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
2024-11-19 14:44:40 | Product data sheet IMAGE-BASED CODE READERS | SICK 3
Subject to change without notice
ICR620E-H12013 ECO | Lector62x
IMAGE-BASED CODE READERS
Control elements 2 buttons (choose and start/stop functions)
Operator interfaces Web server
Configuration software SOPAS ET
Data storage and retrieval Image and data storage via microSD memory card and external FTP
Maximum encoder frequency Max. 300 Hz
External illumination control Via digital output (max. 24 V trigger)
Ambient data
Electromagnetic compatibility (EMC) EN 61000-6-2 (2006-03) / EN 61000-6-2 (2009-05)
Vibration resistance EN 60068-2-6:2008-02
Shock resistance EN 60068-2-27:2009-05
Ambient operating temperature 0 °C ... +50 °C
Storage temperature –20 °C ... +70 °C
Permissible relative humidity 90 %, Non-condensing
Ambient light immunity 2,000 lx, on code
Classifications
ECLASS 5.0 27280103
ECLASS 5.1.4 27280103
ECLASS 6.0 27280103
ECLASS 6.2 27280103
ECLASS 7.0 27280103
ECLASS 8.0 27280103
ECLASS 8.1 27280103
ECLASS 9.0 27280103
ECLASS 10.0 27280103
ECLASS 11.0 27280103
ECLASS 12.0 27280103
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002999
ETIM 8.0 EC002999
UNSPSC 16.0901 43211701
