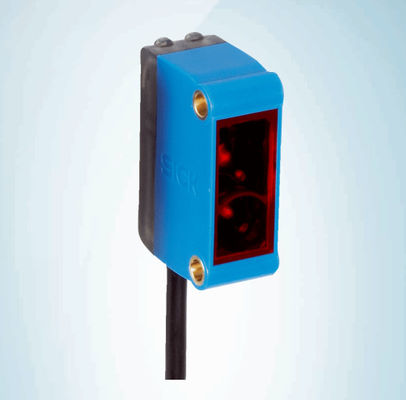

GL6-P1112 SICK Retroreflective Photoelectric Sensor Part No 1051779

MOQ:	1
Price:	205$/piece
Standard Packaging:	1106060mm
Delivery Period:	3 day
Payment Method:	T/T
Supply Capacity:	1piece in stock

Details Information

Product Description

Detail Information

Place of Origin

GERMANY

Brand Name

Certification

Model Number

GL6-P1112

Supply Voltage UB:

10 V DC ... 30 V DC

Type:

Switching Frequency:

1,000 Hz

Dimensions (W x H x D):

12 Mm X 31.5 Mm X 21 Mm

Weight:

Highlight:

GL6-P1112 Retroreflective Photoelectric Sensor

1051779 Retroreflective Photoelectric Sensor

SICK Retroreflective Photoelectric Sensor

Product Description

Features

Device type

Photoelectric sensors

Functional principle

Photoelectric retro-reflective sensor

Functional principle detail

Dual lens

Sensing range max.

≤ 6 m 1)

Sensing range

≤ 5 m 1)

Polarisation filters

Yes

Emitted beam
Light source

Type of light
Light spot size (distance)

PinPoint LED 2)

Visible red light
Ø 8 mm (350 mm)

Key LED figures
Wave length

650 nm

Adjustment

None

1) Reflector PL80A.

2) Average service life: 100,000 hat TU = +25 °C.

Safety-related parameters

MTTFD

2,325 years

DCavg

0 %

2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2021-12-07 22:21:40

Subject to change without notice

GL6-P1112 | G6

MINIATURE PHOTOELECTRIC SENSORS

Electrical data

Supply voltage UB

10 V DC ... 30 V DC 1)

Ripple

± 10 % 2)

Power consumption

30 mA 3)

Protection class

III

Digital output
Type
Signal voltage PNP HIGH/LOW
Output current Imax.

Response time

Switching frequency

PNP

VS - (≤ 3 V) / approx. 0 V

≤ 100 mA 4)

< 625 µs 5)

1,000 Hz 6)

Switching mode

Light/dark switching

Switching modeselector

Selectable via light/dark selector

Circuit protection

A 7)
B 8)
D 9)

1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not exceed or fall below Uv tolerances.
3) Without load.

4) At Uv > 24 V, IA max. = 50 mA.

5) Signal transit time with resistive load.
6) With light/dark ratio 1:1.

7) A = VS connections reverse-polarity protected.
8) B = inputs and output reverse-polarity protected.
9) D = outputs overcurrent and short-circuit protected.
Mechanical data

Housing

Rectangular

Dimensions (W x H x D)

12 mm x 31.5 mm x 21 mm

Connection

Cable, 3-wire, 2 m 1)

Connection detail
Conductor size
Length of cable

0.14 mm²

2 m

Material

Housing
Front screen

Cable

Plastic, ABS/PC
Plastic, PMMA
PVC

Weight

60 g

Items supplied

Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250

1) Do not bend below 0 °C.

Ambient data

Enclosure rating IP67

Temperature stability following adjustment +/-10 °C.

2021-12-07 22:21:40 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3

Subject to change without notice

GL6-P1112 | G6

MINIATURE PHOTOELECTRIC SENSORS

Ambient operating temperature

–25 °C ... +55 °C 1)

Ambient temperature, storage

–40 °C ... +70 °C

UL File No.

NRKH.E348498 & NRKH7.E348498

1) Temperature stability following adjustment +/-10 °C.

Classifications

ECl@ss 5.0

27270902

ECl@ss 5.1.4

27270902

ECl@ss 6.0

27270902

ECl@ss 6.2

27270902

ECl@ss 7.0

27270902

ECl@ss 8.0

27270902

ECl@ss 8.1

27270902

ECl@ss 9.0

27270902

ECl@ss 10.0

27270902

ECl@ss 11.0

27270902

ETIM 5.0

EC002717

ETIM 6.0

EC002717

ETIM 7.0

EC002717

ETIM 8.0

EC002717

UNSPSC 16.0901

39121528
