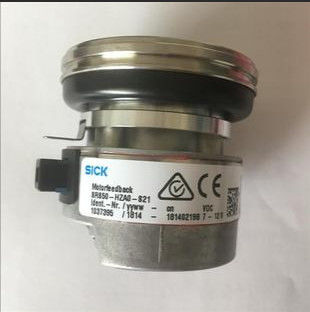

New In Box SICK SRS50-HZA0-S21 Motor Encoder Part No 1037195
  • Name

New In Box SICK SRS50-HZA0-S21 Motor Encoder Part No 1037195

MOQ: 1
Price: 455$/piece
Standard Packaging: 100*100*100mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
SRS50-HZA0-S21
Shaft Version:
Hollow Shaft
Weight:
≤ 0.2 Kg
Operating Temperature Range:
–30 °C ... +115 °C
Storage Temperature Range:
–40 °C ... +125 °C, Without Package
Highlight:

1037195 SICK SRS50-HZA0-S21 Motor Encoder

,

SICK SRS50-HZA0-S21 Motor Encoder

Product Description
Features
Special device √
Specialty Customized hollow shaft (see dimensional drawing)
Fixing screw M5 x 45 (Torx), screwed into EFx50 on delivery
Programming of the position value (zero point marking: resolver support)
Standard reference device SRS50-HAA0-K22, 1037060
Items supplied Mounting screws for stator coupling or servo clamps not included with delivery.
Performance
Sine/cosine periods per revolution 1,024
Number of the absolute ascertainable revo-
lutions		 1
Total number of steps 32,768
Measuring step ≤ 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits
Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the
stator coupling
Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period
Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced
Available memory area 1,792 Byte
System accuracy ± 52 ″
Interfaces
Type of code for the absolute value Binary
Code sequence Increasing,when turning the shaft For clockwise rotation, looking in direction“A”(seedimen-
sional drawing), For clockwise shaft rotation, looking in direction“A”(see dimensional drawing)
Communication interface HIPERFACE®
Electrical data
Connection type Male connector, 8-pin, radial
Supply voltage 7 V ... 12 V
Recommended supply voltage 8 V DC
Current consumption 80 mA 1)
Output frequency for sine/cosine signals ≤ 200 kHz
1) Without load.
2 MOTOR FEEDBACK SYSTEMS | SICK Product data sheet | 2024-11-14 19:16:37
  Subject to change without notice
  SRS50-HZA0-S21 | SRS/SRM50
    MOTOR FEEDBACK SYSTEMS
Mechanical data
Shaft version Hollow shaft
Flange type/ stator coupling Rubber support
Dimensions See dimensional drawing
Weight ≤ 0.2 kg
Operating speed ≤ 12,000 min⁻¹
Angular acceleration ≤ 200,000 rad/s²
Operating torque 0.2 Ncm
Start up torque + 0.4 Ncm
Permissible movement static ± 0.2 mm radial
± 0.8 mm axial
Permissible movement dynamic ± 0.15 mm radial
± 0.2 mm axial
Angular motion perpendicular to the rota-
tional axis, static		 ± 0.005 mm/mm
Angular motion perpendicular to the rota-
tional axis, dynamic		 ± 0.0025 mm/mm
Life of ball bearings 3.6 x 109 revolutions
Ambient data
Operating temperature range –30 °C ... +115 °C
Storage temperature range –40 °C ... +125 °C,without package
Relative humidity/condensation 90 %, Condensation not permitted
Resistance to shocks 100 g, 10 ms, 10 ms (according to EN 60068-2-27)
Frequency range of resistance to vibrations 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EMC According to EN 61000-6-2 and EN 61000-6-3 1)
Enclosure rating IP40, with mating connector inserted (IEC 60529)
1) The EMC according to the standards quoted is achieved when the motor feedback system is mounted in an electrically conductive housing, which is connected to
the central earthing point of the motor controller via a cable screen. The GND-(0 V) connection of the supply voltage is also grounded here. If other shielding concepts
are used, users must perform their own tests.
Classifications
ECLASS 5.0 27270590
ECLASS 5.1.4 27270590
ECLASS 6.0 27270590
ECLASS 6.2 27270590
ECLASS 7.0 27270590
ECLASS 8.0 27270590
ECLASS 8.1 27270590
ECLASS 9.0 27270590
ECLASS 10.0 27273805
ECLASS 11.0 27273901
ECLASS 12.0 27273901
ETIM 5.0 EC001486
ETIM 6.0 EC001486
2024-11-14 19:16:37 | Product data sheet MOTOR FEEDBACK SYSTEMS | SICK 3
Subject to change without notice
SRS50-HZA0-S21 | SRS/SRM50
MOTOR FEEDBACK SYSTEMS
ETIM 7.0 EC001486
ETIM 8.0 EC001486
UNSPSC 16.0901 41112113
Tags:

Sick Detection and Distance sensors sensors,

Sick LiDAR and radar sensors,

Sick Flow measurement
