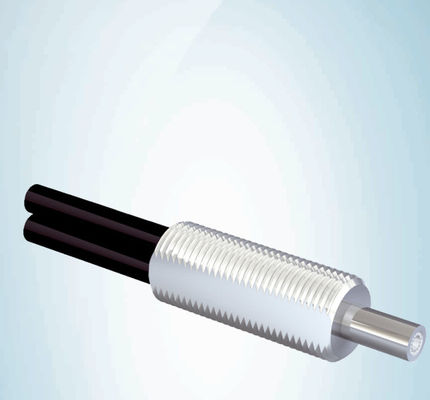

LL3 LL3-DB01 Online Data Sheet RS Components Part No 5308074
  • Name

LL3 LL3-DB01 Online Data Sheet RS Components Part No 5308074

MOQ: 1
Price: 99$/piece
Standard Packaging: 70*40*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
LL3 LL3-DB01
Device Type:
Fiber-optic Cables
Sensing Range Max:
1,250 Mm (Sensing Range Of WLL80 At 8 Ms
Weight:
31 G
Ambient Operating Temperature:
–40 °C ... +70 °C
Highlight:

LL3-DB01 Online data sheet

,

LL3-DB01 RS Components

Product Description
Features
Device type Fiber-optic cables
Functional principle Proximity system
Fiber-optic head design Threaded sleeve
Application Standard
Compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), KTL180
Sensing range max. 1,250 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter 0.015 mm 1)
Optical fiber head
Angle of dispersion
Integrated lens
Compatibility tip adapters
60°

No

No
Optical fiber
Compatibility with infrared light
Optical fiber cable can be shortened
Adapter end sleeves required
No

✔
No
Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
1) Minimum detectable object was determined at optimum measuring distance and optimum setting.
Mechanics
Optical fiber head
Light emission
Thread diameter (housing)
Optical fiber taper diameter
Optical fiber taper length after 2 mm
Axial

M6

≥ 2.8 mm

≥ 5 mm
Optical fiber
Fiber length
Bending radius
Dynamic flexibility (robotics)
Outside diameter, optical fiber cable connection
Fiber arrangement
Core structure
2,000 mm
25 mm

No

2.2 mm

Coaxial

S: Ø 1 mm, R: 16 x Ø 0,25 mm 1) Coaxial
1) C = Coaxial, S = Sender, E = Receiver.
2 FIBER-OPTIC SENSORS | SICK Product data sheet | 2025-02-05 14:47:59
  Subject to change without notice
  LL3-DB01 | Fiber-optic cables
    FIBERS
Material
Optical fiber head
Sheath

Fibers
Stainless steel
Polyethylen (PE)
Polymethylmethacrylat (PMMA)
Weight   31 g
1) C = Coaxial, S = Sender, E = Receiver.
Ambient data
Ambient operating temperature –40 °C ... +70 °C
Classifications
ECLASS 5.0 27270905
ECLASS 5.1.4 27270905
ECLASS 6.0 27270905
ECLASS 6.2 27270905
ECLASS 7.0 27270905
ECLASS 8.0 27270905
ECLASS 8.1 27270905
ECLASS 9.0 27270905
ECLASS 10.0 27270905
ECLASS 11.0 27270905
ECLASS 12.0 27270905
ETIM 5.0 EC002651
ETIM 6.0 EC002651
ETIM 7.0 EC002651
ETIM 8.0 EC002651
UNSPSC 16.0901 39121528
Sensing ranges with WLL80
Operating mode 16 µs 120 mm
Operating mode 70 µs 300 mm
Operating mode 250 µs 500 mm
Operating mode 500 µs 600 mm
Operating mode 1 ms 700 mm
Operating mode 2 ms 800 mm
Operating mode 8 ms 1,250 mm
Sensing ranges with WLL180T
Operating mode 16 µs 90 mm
Operating mode 70 µs 280 mm
Operating mode 250 µs 500 mm
Operating mode 2 ms 900 mm
Operating mode 8 ms 1,350 mm
Note Sensing ranges related to fiber-optic sensors with type of light: visible red light
2025-02-05 14:47:59 | Product data sheet FIBER-OPTIC SENSORS | SICK 3
Subject to change without notice
LL3-DB01 | Fiber-optic cables
FIBERS
Sensing ranges with GLL170
Operating mode 250 µs 160 mm
Sensing ranges with GLL170T
Operating mode 50 µs 150 mm
Operating mode 250 µs 290 mm
Sensing ranges with KTL180
Operating mode 16 µs 2 mm
Operating mode 200 µs 2 mm
