Features | ||||||||||||||||||||||||||||||||
Device type | Fiber-optic amplifier | |||||||||||||||||||||||||||||||
Device type detail | Stand-alone | |||||||||||||||||||||||||||||||
Dimensions (W x H x D) | 10 mm x 31.7 mm x 72.5 mm | |||||||||||||||||||||||||||||||
Housing design (light emission) | Rectangular | |||||||||||||||||||||||||||||||
Sensing range max. | 0 mm ... 400 mm (Proximity system) 1) 2) 0 mm ... 1,320 mm (Through-beam system) |
3) | ||||||||||||||||||||||||||||||
Sensing range | 0 mm ... 350 mm, Proximity system 0 mm ... 1,100 mm, Through-beam |
1) 2) system |
3) | |||||||||||||||||||||||||||||
Type of light | Visible red light | |||||||||||||||||||||||||||||||
Light source | LED 4) | |||||||||||||||||||||||||||||||
Wave length | 632 nm | |||||||||||||||||||||||||||||||
Adjustment | Teach-in button Cable Plus/minus button |
|||||||||||||||||||||||||||||||
Indication | 7-segment | |||||||||||||||||||||||||||||||
Display | Status LEDs, 4-digit digital display, display selectable between percentage value, absolute digit value and bar display / display of parameters |
|||||||||||||||||||||||||||||||
1) | Object with 90% remission (based on standard white, DIN 5033). | |||||||||||||||||||||||||||||||
2) | LL3-DK06. | |||||||||||||||||||||||||||||||
3) | LL3-TB02. | |||||||||||||||||||||||||||||||
4) | Average service life: 100,000 hat TU = +25 °C. | |||||||||||||||||||||||||||||||
2 FIBER-OPTIC SENSORS | SICK Product data sheet | 2024-12-12 15:53:32 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||

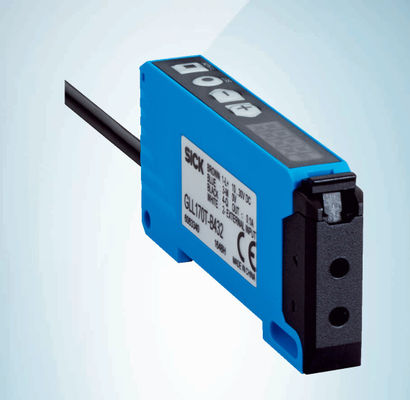

GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Mechanics/electronics | ||||||||||||||||||||||||||||||||
Supply voltage UB | 10 V DC ... 30 V DC 1) | |||||||||||||||||||||||||||||||
Ripple | ≤ 10 % 2) | |||||||||||||||||||||||||||||||
Current consumption | 40 mA 3) | |||||||||||||||||||||||||||||||
Switching output | PNP, NPN, Selectable via menu | |||||||||||||||||||||||||||||||
Number of switching outputs | 1 | |||||||||||||||||||||||||||||||
Switching mode | Light/dark switching | |||||||||||||||||||||||||||||||
Switching modeselector | Selectable via menu | |||||||||||||||||||||||||||||||
Response time | ≤ 250 µs, ≤ 50 µs, Selectable via menu | 4) 4) | ||||||||||||||||||||||||||||||
Switching frequency | 2 kHz, 10 kHz | |||||||||||||||||||||||||||||||
Time functions | Switch-on delayoff delayone shotWithout time delay | |||||||||||||||||||||||||||||||
Delay time | Programmable, 0 ms ... 9,999 ms | |||||||||||||||||||||||||||||||
Input | Teach-in input | |||||||||||||||||||||||||||||||
Connection type | Cable, 4-wire, 2 m 5) | |||||||||||||||||||||||||||||||
Cable material | Plastic, PVC | |||||||||||||||||||||||||||||||
Conductor cross section | 0.2 mm² | |||||||||||||||||||||||||||||||
Cable diameter | Ø 3.8 mm | |||||||||||||||||||||||||||||||
Circuit protection | A 6) B 7) C 8) D 9) |
|||||||||||||||||||||||||||||||
Protection class | III | |||||||||||||||||||||||||||||||
Weight | 66 g | |||||||||||||||||||||||||||||||
Housing material | Plastic, PC/POM | |||||||||||||||||||||||||||||||
Tightening torque, max. | 0.5 Nm | |||||||||||||||||||||||||||||||
Enclosure rating | IP66 10) | |||||||||||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +55 °C | |||||||||||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +70 °C | |||||||||||||||||||||||||||||||
UL File No. | NRKH2.E300503 & NRKH8.E300503 | |||||||||||||||||||||||||||||||
1) Limit values. | ||||||||||||||||||||||||||||||||
2) May not fall below or exceed UV tolerances. | ||||||||||||||||||||||||||||||||
3) Without load. | ||||||||||||||||||||||||||||||||
4) Signal transit time with resistive load. | ||||||||||||||||||||||||||||||||
5) Do not bend below 0 °C. | ||||||||||||||||||||||||||||||||
6) A = VS connections reverse-polarity protected. | ||||||||||||||||||||||||||||||||
7) B = inputs and output reverse-polarity protected. | ||||||||||||||||||||||||||||||||
8) C = interference suppression. | ||||||||||||||||||||||||||||||||
9) D = outputs overcurrent and short-circuit protected. | ||||||||||||||||||||||||||||||||
10) With correctly attached fibre-optic cable LL3. | ||||||||||||||||||||||||||||||||
Safety-related parameters | ||||||||||||||||||||||||||||||||
MTTFD | 300 years | |||||||||||||||||||||||||||||||
DCavg | 0 % | |||||||||||||||||||||||||||||||
2024-12-12 15:53:32 | Product data sheet FIBER-OPTIC SENSORS | SICK 3 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||
ECLASS 5.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 5.1.4 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 6.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 6.2 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 7.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 8.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 8.1 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 9.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 10.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 11.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 12.0 | 27270905 | |||||||||||||||||||||||||||||||
ETIM 5.0 | EC002651 | |||||||||||||||||||||||||||||||
ETIM 6.0 | EC002651 | |||||||||||||||||||||||||||||||
ETIM 7.0 | EC002651 | |||||||||||||||||||||||||||||||
ETIM 8.0 | EC002651 | |||||||||||||||||||||||||||||||
UNSPSC 16.0901 | 39121528 | |||||||||||||||||||||||||||||||
Adjustments | ||||||||||||||||||||||||||||||||
GLL170T | ||||||||||||||||||||||||||||||||
① ② ③ ④ | ||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
⑦ ⑥ ⑤ | ||||||||||||||||||||||||||||||||
① LED indicator orange, lights up when switching output is active ② Plus/minus button ③ SET button |
||||||||||||||||||||||||||||||||
④ Teach-in button ⑤ Display |
||||||||||||||||||||||||||||||||
⑥ LED indicator green: Supply voltage active ⑦ Locking the fiber-optic cables |
||||||||||||||||||||||||||||||||
Connection diagram | ||||||||||||||||||||||||||||||||
Cd-093 | ||||||||||||||||||||||||||||||||
![]() |
+ (L+) | |||||||||||||||||||||||||||||||
BU | ||||||||||||||||||||||||||||||||
- (M) | ||||||||||||||||||||||||||||||||
BK | ||||||||||||||||||||||||||||||||
Q | ||||||||||||||||||||||||||||||||
WH | ||||||||||||||||||||||||||||||||
Teach | ||||||||||||||||||||||||||||||||
4 FIBER-OPTIC SENSORS | SICK Product data sheet | 2024-12-12 15:53:32 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Dimensional drawing (Dimensions in mm (inch)) | ||||||||||||||||||||||||||||||||
![]() |
10 (0.39) | |||||||||||||||||||||||||||||||
![]() ![]() |
![]() ![]() |
|||||||||||||||||||||||||||||||
![]() ![]() ![]() |
||||||||||||||||||||||||||||||||
![]() |
![]() |
|||||||||||||||||||||||||||||||
![]() ![]() ![]() |
||||||||||||||||||||||||||||||||
![]() ![]() |
![]() ![]() ![]() |
|||||||||||||||||||||||||||||||
3.2 | ||||||||||||||||||||||||||||||||
![]() |
![]() ![]() ![]() |
2.3 | ||||||||||||||||||||||||||||||
5.9 | ![]() ![]() |
(0.09) | ||||||||||||||||||||||||||||||
(0.23) | ![]() |
|||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
~160° | ||||||||||||||||||||||||||||||||
![]() ![]() |
![]() |
![]() ![]() ![]() |
||||||||||||||||||||||||||||||
![]() |
![]() |
③ | ![]() |
④ |
||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
① Mounting holes | ||||||||||||||||||||||||||||||||
② Protective hood (optional), opens approx. 160° | ||||||||||||||||||||||||||||||||
③ Connector M8 | ||||||||||||||||||||||||||||||||
④ Cable | ||||||||||||||||||||||||||||||||
Recommended accessories | ||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
![]() |
Type | ![]() |
Part no. | |||||||||||||||||||||||||||||
Device protection (mechanical) | ||||||||||||||||||||||||||||||||
![]() |
Protective Hood for GLL170, opens approx. 160°, PC | BF-GLL170 | 5336263 | |||||||||||||||||||||||||||||
Mounting brackets and plates | ||||||||||||||||||||||||||||||||
![]() |
Mounting bracket, steel, zinc coated, without mounting hardware | BEF-WLL180 | 5325812 | |||||||||||||||||||||||||||||
Others | ||||||||||||||||||||||||||||||||
![]() |
![]() • Description: Unshielded • Connection systems: Screw-type terminals • Permitted cross-section: 0.14 mm² ... 0.5 mm² |
STE-0804-G | 6037323 | |||||||||||||||||||||||||||||
• Connection type head A: Female connector, M8, 4-pin, straight, A-coded • Description: Unshielded • Connection systems: Screw-type terminals • Permitted cross-section: 0.14 mm² ... 0.5 mm² |
DOS-0804-G | 6009974 | ||||||||||||||||||||||||||||||
• Connection type head A: Female connector, M8, 4-pin, angled, A-coded • Description: Unshielded |
DOS-0804-W 6009975 | |||||||||||||||||||||||||||||||
• Connection systems: Solder connection • Permitted cross-section: ≤ 0.25 mm² |
||||||||||||||||||||||||||||||||
2024-12-12 15:53:32 | Product data sheet FIBER-OPTIC SENSORS |SICK 5 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Brief description Type | Part no. | |||||||||||||||||||||||||||||||
Fibers | ||||||||||||||||||||||||||||||||
LL3-DB01 | LL3-DB01 | 5308074 | ||||||||||||||||||||||||||||||
LL3-DB02 | LL3-DB02 | 5308083 | ||||||||||||||||||||||||||||||
LL3-DC38 | LL3-DC38 | 5322472 | ||||||||||||||||||||||||||||||
LL3-DR11 | LL3-DR11 | 5326000 | ||||||||||||||||||||||||||||||
LL3-DT01 | LL3-DT01 | 5308076 | ||||||||||||||||||||||||||||||
LL3-DV05 | LL3-DV05 | 5322549 | ||||||||||||||||||||||||||||||
LL3-TB01 | LL3-TB01 | 5308050 | ||||||||||||||||||||||||||||||
LL3-TH08 | LL3-TH08 | 5325978 | ||||||||||||||||||||||||||||||
LL3-TS40 | LL3-TS40 | 5323971 | ||||||||||||||||||||||||||||||
![]() |
LL3-TV05 | LL3-TV05 | 5322546 | |||||||||||||||||||||||||||||
LL3-TX01 | LL3-TX01 | 5324173 | ||||||||||||||||||||||||||||||
LL3-TY01 | LL3-TY01 | 5308066 | ||||||||||||||||||||||||||||||

6 FIBER-OPTIC SENSORS | SICK Product data sheet | 2024-12-12 15:53:32 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
SICK At A GlAnCe | ||||||||||||||||||||||||||||||||
SICK is one of the leading manufacturers of intelligent sensors and sensor solutions for industrial applica- tions. A unique range of products and services creates the perfect basis for controlling processes securely and efficiently, protecting individuals from accidents and preventing damage to the environment. |
||||||||||||||||||||||||||||||||
We have extensive experience in a wide range of industries and understand their processes and require- ments.With intelligent sensors,we can deliver exactly what our customers need. In application centers in Europe,Asia and North America,system solutions are tested and optimized in accordance with customer specifications.All this makes us a reliable supplier and development partner. |
||||||||||||||||||||||||||||||||
Comprehensive services complete our offering:SICK lifetime Services provide support throughout the ma- chine life cycle and ensure safety and productivity. |
||||||||||||||||||||||||||||||||
For us,that is“Sensor Intelligence.” |
MOQ: | 1 |
Price: | 306$/piece |
Standard Packaging: | 80*50*50mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | ||||||||||||||||||||||||||||||||
Device type | Fiber-optic amplifier | |||||||||||||||||||||||||||||||
Device type detail | Stand-alone | |||||||||||||||||||||||||||||||
Dimensions (W x H x D) | 10 mm x 31.7 mm x 72.5 mm | |||||||||||||||||||||||||||||||
Housing design (light emission) | Rectangular | |||||||||||||||||||||||||||||||
Sensing range max. | 0 mm ... 400 mm (Proximity system) 1) 2) 0 mm ... 1,320 mm (Through-beam system) |
3) | ||||||||||||||||||||||||||||||
Sensing range | 0 mm ... 350 mm, Proximity system 0 mm ... 1,100 mm, Through-beam |
1) 2) system |
3) | |||||||||||||||||||||||||||||
Type of light | Visible red light | |||||||||||||||||||||||||||||||
Light source | LED 4) | |||||||||||||||||||||||||||||||
Wave length | 632 nm | |||||||||||||||||||||||||||||||
Adjustment | Teach-in button Cable Plus/minus button |
|||||||||||||||||||||||||||||||
Indication | 7-segment | |||||||||||||||||||||||||||||||
Display | Status LEDs, 4-digit digital display, display selectable between percentage value, absolute digit value and bar display / display of parameters |
|||||||||||||||||||||||||||||||
1) | Object with 90% remission (based on standard white, DIN 5033). | |||||||||||||||||||||||||||||||
2) | LL3-DK06. | |||||||||||||||||||||||||||||||
3) | LL3-TB02. | |||||||||||||||||||||||||||||||
4) | Average service life: 100,000 hat TU = +25 °C. | |||||||||||||||||||||||||||||||
2 FIBER-OPTIC SENSORS | SICK Product data sheet | 2024-12-12 15:53:32 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Mechanics/electronics | ||||||||||||||||||||||||||||||||
Supply voltage UB | 10 V DC ... 30 V DC 1) | |||||||||||||||||||||||||||||||
Ripple | ≤ 10 % 2) | |||||||||||||||||||||||||||||||
Current consumption | 40 mA 3) | |||||||||||||||||||||||||||||||
Switching output | PNP, NPN, Selectable via menu | |||||||||||||||||||||||||||||||
Number of switching outputs | 1 | |||||||||||||||||||||||||||||||
Switching mode | Light/dark switching | |||||||||||||||||||||||||||||||
Switching modeselector | Selectable via menu | |||||||||||||||||||||||||||||||
Response time | ≤ 250 µs, ≤ 50 µs, Selectable via menu | 4) 4) | ||||||||||||||||||||||||||||||
Switching frequency | 2 kHz, 10 kHz | |||||||||||||||||||||||||||||||
Time functions | Switch-on delayoff delayone shotWithout time delay | |||||||||||||||||||||||||||||||
Delay time | Programmable, 0 ms ... 9,999 ms | |||||||||||||||||||||||||||||||
Input | Teach-in input | |||||||||||||||||||||||||||||||
Connection type | Cable, 4-wire, 2 m 5) | |||||||||||||||||||||||||||||||
Cable material | Plastic, PVC | |||||||||||||||||||||||||||||||
Conductor cross section | 0.2 mm² | |||||||||||||||||||||||||||||||
Cable diameter | Ø 3.8 mm | |||||||||||||||||||||||||||||||
Circuit protection | A 6) B 7) C 8) D 9) |
|||||||||||||||||||||||||||||||
Protection class | III | |||||||||||||||||||||||||||||||
Weight | 66 g | |||||||||||||||||||||||||||||||
Housing material | Plastic, PC/POM | |||||||||||||||||||||||||||||||
Tightening torque, max. | 0.5 Nm | |||||||||||||||||||||||||||||||
Enclosure rating | IP66 10) | |||||||||||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +55 °C | |||||||||||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +70 °C | |||||||||||||||||||||||||||||||
UL File No. | NRKH2.E300503 & NRKH8.E300503 | |||||||||||||||||||||||||||||||
1) Limit values. | ||||||||||||||||||||||||||||||||
2) May not fall below or exceed UV tolerances. | ||||||||||||||||||||||||||||||||
3) Without load. | ||||||||||||||||||||||||||||||||
4) Signal transit time with resistive load. | ||||||||||||||||||||||||||||||||
5) Do not bend below 0 °C. | ||||||||||||||||||||||||||||||||
6) A = VS connections reverse-polarity protected. | ||||||||||||||||||||||||||||||||
7) B = inputs and output reverse-polarity protected. | ||||||||||||||||||||||||||||||||
8) C = interference suppression. | ||||||||||||||||||||||||||||||||
9) D = outputs overcurrent and short-circuit protected. | ||||||||||||||||||||||||||||||||
10) With correctly attached fibre-optic cable LL3. | ||||||||||||||||||||||||||||||||
Safety-related parameters | ||||||||||||||||||||||||||||||||
MTTFD | 300 years | |||||||||||||||||||||||||||||||
DCavg | 0 % | |||||||||||||||||||||||||||||||
2024-12-12 15:53:32 | Product data sheet FIBER-OPTIC SENSORS | SICK 3 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||
ECLASS 5.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 5.1.4 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 6.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 6.2 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 7.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 8.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 8.1 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 9.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 10.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 11.0 | 27270905 | |||||||||||||||||||||||||||||||
ECLASS 12.0 | 27270905 | |||||||||||||||||||||||||||||||
ETIM 5.0 | EC002651 | |||||||||||||||||||||||||||||||
ETIM 6.0 | EC002651 | |||||||||||||||||||||||||||||||
ETIM 7.0 | EC002651 | |||||||||||||||||||||||||||||||
ETIM 8.0 | EC002651 | |||||||||||||||||||||||||||||||
UNSPSC 16.0901 | 39121528 | |||||||||||||||||||||||||||||||
Adjustments | ||||||||||||||||||||||||||||||||
GLL170T | ||||||||||||||||||||||||||||||||
① ② ③ ④ | ||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
⑦ ⑥ ⑤ | ||||||||||||||||||||||||||||||||
① LED indicator orange, lights up when switching output is active ② Plus/minus button ③ SET button |
||||||||||||||||||||||||||||||||
④ Teach-in button ⑤ Display |
||||||||||||||||||||||||||||||||
⑥ LED indicator green: Supply voltage active ⑦ Locking the fiber-optic cables |
||||||||||||||||||||||||||||||||
Connection diagram | ||||||||||||||||||||||||||||||||
Cd-093 | ||||||||||||||||||||||||||||||||
![]() |
+ (L+) | |||||||||||||||||||||||||||||||
BU | ||||||||||||||||||||||||||||||||
- (M) | ||||||||||||||||||||||||||||||||
BK | ||||||||||||||||||||||||||||||||
Q | ||||||||||||||||||||||||||||||||
WH | ||||||||||||||||||||||||||||||||
Teach | ||||||||||||||||||||||||||||||||
4 FIBER-OPTIC SENSORS | SICK Product data sheet | 2024-12-12 15:53:32 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Dimensional drawing (Dimensions in mm (inch)) | ||||||||||||||||||||||||||||||||
![]() |
10 (0.39) | |||||||||||||||||||||||||||||||
![]() ![]() |
![]() ![]() |
|||||||||||||||||||||||||||||||
![]() ![]() ![]() |
||||||||||||||||||||||||||||||||
![]() |
![]() |
|||||||||||||||||||||||||||||||
![]() ![]() ![]() |
||||||||||||||||||||||||||||||||
![]() ![]() |
![]() ![]() ![]() |
|||||||||||||||||||||||||||||||
3.2 | ||||||||||||||||||||||||||||||||
![]() |
![]() ![]() ![]() |
2.3 | ||||||||||||||||||||||||||||||
5.9 | ![]() ![]() |
(0.09) | ||||||||||||||||||||||||||||||
(0.23) | ![]() |
|||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
~160° | ||||||||||||||||||||||||||||||||
![]() ![]() |
![]() |
![]() ![]() ![]() |
||||||||||||||||||||||||||||||
![]() |
![]() |
③ | ![]() |
④ |
||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
① Mounting holes | ||||||||||||||||||||||||||||||||
② Protective hood (optional), opens approx. 160° | ||||||||||||||||||||||||||||||||
③ Connector M8 | ||||||||||||||||||||||||||||||||
④ Cable | ||||||||||||||||||||||||||||||||
Recommended accessories | ||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||
![]() |
Type | ![]() |
Part no. | |||||||||||||||||||||||||||||
Device protection (mechanical) | ||||||||||||||||||||||||||||||||
![]() |
Protective Hood for GLL170, opens approx. 160°, PC | BF-GLL170 | 5336263 | |||||||||||||||||||||||||||||
Mounting brackets and plates | ||||||||||||||||||||||||||||||||
![]() |
Mounting bracket, steel, zinc coated, without mounting hardware | BEF-WLL180 | 5325812 | |||||||||||||||||||||||||||||
Others | ||||||||||||||||||||||||||||||||
![]() |
![]() • Description: Unshielded • Connection systems: Screw-type terminals • Permitted cross-section: 0.14 mm² ... 0.5 mm² |
STE-0804-G | 6037323 | |||||||||||||||||||||||||||||
• Connection type head A: Female connector, M8, 4-pin, straight, A-coded • Description: Unshielded • Connection systems: Screw-type terminals • Permitted cross-section: 0.14 mm² ... 0.5 mm² |
DOS-0804-G | 6009974 | ||||||||||||||||||||||||||||||
• Connection type head A: Female connector, M8, 4-pin, angled, A-coded • Description: Unshielded |
DOS-0804-W 6009975 | |||||||||||||||||||||||||||||||
• Connection systems: Solder connection • Permitted cross-section: ≤ 0.25 mm² |
||||||||||||||||||||||||||||||||
2024-12-12 15:53:32 | Product data sheet FIBER-OPTIC SENSORS |SICK 5 | ||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||
GLL170T-B432 | GLL170 | ||||||||||||||||||||||||||||||||
FIBER-OPTIC AMPLIFIER | ||||||||||||||||||||||||||||||||
Brief description Type | Part no. | |||||||||||||||||||||||||||||||
Fibers | ||||||||||||||||||||||||||||||||
LL3-DB01 | LL3-DB01 | 5308074 | ||||||||||||||||||||||||||||||
LL3-DB02 | LL3-DB02 | 5308083 | ||||||||||||||||||||||||||||||
LL3-DC38 | LL3-DC38 | 5322472 | ||||||||||||||||||||||||||||||
LL3-DR11 | LL3-DR11 | 5326000 | ||||||||||||||||||||||||||||||
LL3-DT01 | LL3-DT01 | 5308076 | ||||||||||||||||||||||||||||||
LL3-DV05 | LL3-DV05 | 5322549 | ||||||||||||||||||||||||||||||
LL3-TB01 | LL3-TB01 | 5308050 | ||||||||||||||||||||||||||||||
LL3-TH08 | LL3-TH08 | 5325978 | ||||||||||||||||||||||||||||||
LL3-TS40 | LL3-TS40 | 5323971 | ||||||||||||||||||||||||||||||
![]() |
LL3-TV05 | LL3-TV05 | 5322546 | |||||||||||||||||||||||||||||
LL3-TX01 | LL3-TX01 | 5324173 | ||||||||||||||||||||||||||||||
LL3-TY01 | LL3-TY01 | 5308066 | ||||||||||||||||||||||||||||||
