MOQ: | 1 |
Price: | 146$/piece |
Standard Packaging: | 110*60*60mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | ||||||||||||||||||||||||
Housing | Metric | |||||||||||||||||||||||
Housing | Standard design | |||||||||||||||||||||||
Thread size | M12 x 1 | |||||||||||||||||||||||
Diameter | Ø 12 mm | |||||||||||||||||||||||
Sensing range Sn | 10 mm | |||||||||||||||||||||||
Safe sensing range Sa | 8.1 mm | |||||||||||||||||||||||
Installation type | Non-flush | |||||||||||||||||||||||
Switching frequency | 400 Hz | |||||||||||||||||||||||
Connection type | Male connector M12, 4-pin | |||||||||||||||||||||||
Switching output | PNP | |||||||||||||||||||||||
Output function | NO | |||||||||||||||||||||||
Electrical wiring | DC 3-wire | |||||||||||||||||||||||
Enclosure rating | IP67 1) | |||||||||||||||||||||||
Special features | Triple sensing range | |||||||||||||||||||||||
Items supplied | Mounting nut, brass, chromium-plated (2x) Washer, brass, chromium-plated, with locking teeth (2x) |
|||||||||||||||||||||||
1) According to EN 60529. | ||||||||||||||||||||||||
Mechanics/electronics | ||||||||||||||||||||||||
Supply voltage | 10 V DC ... 30 V DC | |||||||||||||||||||||||
Ripple | ≤ 10 % 1) | |||||||||||||||||||||||
Voltage drop | ≤ 2 V 2) | |||||||||||||||||||||||
1) | Of VS. | |||||||||||||||||||||||
2) | At Ia max. | |||||||||||||||||||||||
3) | Of Sr. | |||||||||||||||||||||||
4) | UB = 20 V DC ... 30 V DC, TA = 23 °C ± 5 °C. | |||||||||||||||||||||||
5) | LED lights continuously (0 ≤ s ≤ 0.8 Sr); LED flashing (0.8 Sr < s ≤ Sr). | |||||||||||||||||||||||
2 INDUCTIVE PROXIMITY SENSORS | SICK Product data sheet | 2024-10-22 14:07:27 | ||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||

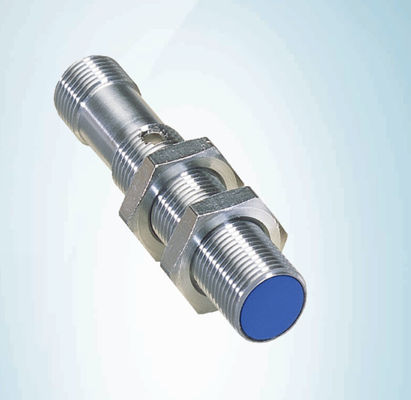

IM12-10NPS-ZC1 | IML | ||||||||||||||||||||||||
INDUCTIVE PROXIMITY SENSORS | ||||||||||||||||||||||||
Time delay before availability | ≤ 50 ms | |||||||||||||||||||||||
Hysteresis | 1 % ... 15 % | |||||||||||||||||||||||
Reproducibility | ≤ 5 % 3) 4) | |||||||||||||||||||||||
Temperature drift (of Sr) | ± 10 % | |||||||||||||||||||||||
EMC | According to EN 60947-5-2 | |||||||||||||||||||||||
Continuous current Ia | ≤ 200 mA | |||||||||||||||||||||||
Short-circuit protection | ✔ | |||||||||||||||||||||||
Power-up pulse protection | ✔ | |||||||||||||||||||||||
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | |||||||||||||||||||||||
Installation aid | ✔ 5) | |||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +70 °C | |||||||||||||||||||||||
Housing material | Brass, chromium-plated | |||||||||||||||||||||||
Sensing face material | Plastic, PTB | |||||||||||||||||||||||
Housing length | 60 mm | |||||||||||||||||||||||
Thread length | 35 mm | |||||||||||||||||||||||
Tightening torque, max. | ≤ 10 Nm | |||||||||||||||||||||||
1) Of VS. 2) At Ia max. 3) Of Sr. |
||||||||||||||||||||||||
4) UB = 20 V DC ... 30 V DC, TA = 23 °C ± 5 °C. | ||||||||||||||||||||||||
5) LED lights continuously (0 ≤ s ≤ 0.8 Sr); LED flashing (0.8 Sr < s ≤ Sr). Safety-related parameters |
||||||||||||||||||||||||
MTTFD | 171 years | |||||||||||||||||||||||
DCavg | 0% | |||||||||||||||||||||||
TM (mission time) | 20 years | |||||||||||||||||||||||
Reduction factors | ||||||||||||||||||||||||
Note | The values are reference values which may vary | |||||||||||||||||||||||
Stainless steel (V2A, 304) | Approx. 0.77 | |||||||||||||||||||||||
Aluminum (Al) | Approx. 0.49 | |||||||||||||||||||||||
Copper (Cu) | Approx. 0.45 | |||||||||||||||||||||||
Brass (Br) | Approx. 0.56 | |||||||||||||||||||||||
Installation note | ||||||||||||||||||||||||
Remark | Associated graphic see "Installation" | |||||||||||||||||||||||
A | 10 mm | |||||||||||||||||||||||
B | 30 mm | |||||||||||||||||||||||
C | 12 mm | |||||||||||||||||||||||
D | 30 mm | |||||||||||||||||||||||
E | 13 mm | |||||||||||||||||||||||
F | 100 mm | |||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||
ECLASS 5.0 27270101 | ||||||||||||||||||||||||
2024-10-22 14:07:27 | Product data sheet INDUCTIVE PROXIMITY SENSORS | SICK 3 | ||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||
IM12-10NPS-ZC1 | IML | ||||||||||||||||||||||||
INDUCTIVE PROXIMITY SENSORS | ||||||||||||||||||||||||
ECLASS 5.1.4 | 27270101 | |||||||||||||||||||||||
ECLASS 6.0 | 27270101 | |||||||||||||||||||||||
ECLASS 6.2 | 27270101 | |||||||||||||||||||||||
ECLASS 7.0 | 27270101 | |||||||||||||||||||||||
ECLASS 8.0 | 27270101 | |||||||||||||||||||||||
ECLASS 8.1 | 27270101 | |||||||||||||||||||||||
ECLASS 9.0 | 27270101 | |||||||||||||||||||||||
ECLASS 10.0 | 27270101 | |||||||||||||||||||||||
ECLASS 11.0 | 27270101 | |||||||||||||||||||||||
ECLASS 12.0 | 27274001 | |||||||||||||||||||||||
ETIM 5.0 | EC002714 | |||||||||||||||||||||||
ETIM 6.0 | EC002714 | |||||||||||||||||||||||
ETIM 7.0 | EC002714 | |||||||||||||||||||||||
ETIM 8.0 | EC002714 | |||||||||||||||||||||||
UNSPSC 16.0901 | 39122230 |
