MOQ: | 1 |
Price: | 156$/piece |
Standard Packaging: | 110*60*60mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
GTE6-P1212 | G6 | ||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||||||
Ordering information | ||||||||||||||||||||||||||||
Type | Part no. | |||||||||||||||||||||||||||
GTE6-P1212 | 1051783 | |||||||||||||||||||||||||||
Included in delivery: BEF-W100-A (1) | ||||||||||||||||||||||||||||
Other models and accessories → www.sick.com/G6 | ||||||||||||||||||||||||||||

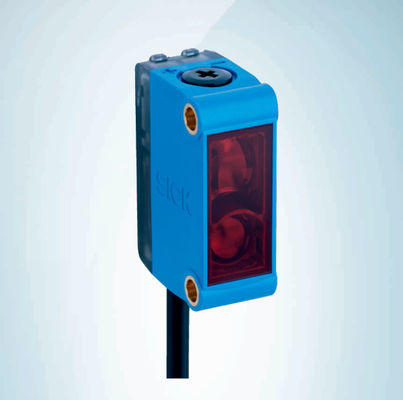

Illustration may differ | ||||||||||||||||||||||||||||
![]() ![]() ![]() |
||||||||||||||||||||||||||||
![]() ![]() byslck |
||||||||||||||||||||||||||||
Detailed technical data | ||||||||||||||||||||||||||||
Features | ||||||||||||||||||||||||||||
Functional principle | Photoelectric proximity sensor | |||||||||||||||||||||||||||
Functional principle detail | Energetic | |||||||||||||||||||||||||||
Sensing range max. | ≤ 300 mm 1) | |||||||||||||||||||||||||||
Sensing range | ≤ 250 mm | |||||||||||||||||||||||||||
Polarisation filters | No | |||||||||||||||||||||||||||
Emitted beam Light source Type of light Light spot size (distance) |
PinPoint LED 2) Visible red light Ø 7 mm (90 mm) |
|||||||||||||||||||||||||||
Key LED figures Wave length |
650 nm | |||||||||||||||||||||||||||
Adjustment | Mechanical spindle, 5 turns | |||||||||||||||||||||||||||
Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A | |||||||||||||||||||||||||||
1) Object with 90% remission (based on standard white, DIN 5033). | ||||||||||||||||||||||||||||
2) Average service life: 100,000 hat TU = +25 °C. | ||||||||||||||||||||||||||||
Safety-related parameters | ||||||||||||||||||||||||||||
MTTFD | 1,896 years | |||||||||||||||||||||||||||
DCavg | 0 % | |||||||||||||||||||||||||||
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-02-15 11:38:29 | ||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||
GTE6-P1212 | G6 | ||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||||||
Electronics | ||||||||||||||||||||||||||||
Supply voltage UB | 10 V DC ... 30 V DC 1) | |||||||||||||||||||||||||||
Ripple | ± 10 % 2) | |||||||||||||||||||||||||||
Current consumption | 30 mA 3) | |||||||||||||||||||||||||||
Protection class | III | |||||||||||||||||||||||||||
Digital output Type Switching mode Switching modeselector Signal voltage PNP HIGH/LOW Output current Imax. Response time Switching frequency |
PNP Light/dark switching Selectable via light/dark selector VS - (≤ 3 V) / approx. 0 V ≤ 100 mA 4) < 1.25 ms 5) 500 Hz 6) |
|||||||||||||||||||||||||||
Circuit protection | A 7) B 8) D 9) |
|||||||||||||||||||||||||||
1) Limit values when operated in short-circuit protected network: max. 8 A. 2) May not fall below or exceed UV tolerances. 3) Without load. |
||||||||||||||||||||||||||||
4) At Uv > 24 V, IA max. = 50 mA. | ||||||||||||||||||||||||||||
5) Signal transit time with resistive load. 6) With light/dark ratio 1:1. |
||||||||||||||||||||||||||||
7) A = VS connections reverse-polarity protected. 8) B = inputs and output reverse-polarity protected. 9) D = outputs overcurrent and short-circuit protected. |
||||||||||||||||||||||||||||
Mechanics | ||||||||||||||||||||||||||||
Housing | Rectangular | |||||||||||||||||||||||||||
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm | |||||||||||||||||||||||||||
Connection | Cable, 3-wire, 2 m 1) | |||||||||||||||||||||||||||
Connection detail Conductor size Length of cable (L) |
0.14 mm² 2 m 1) |
|||||||||||||||||||||||||||
Material Housing Front screen Cable |
Plastic, ABS/PC Plastic, PMMA Plastic, PVC |
|||||||||||||||||||||||||||
Weight | 60 g | |||||||||||||||||||||||||||
1) Do not bend below 0 °C. | ||||||||||||||||||||||||||||
Ambient data | ||||||||||||||||||||||||||||
Enclosure rating | IP67 | |||||||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +55 °C 1) | |||||||||||||||||||||||||||
1) | Temperature stability following adjustment +/-10 °C. | |||||||||||||||||||||||||||
2025-02-15 11:38:29 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3 | ||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||
GTE6-P1212 | G6 | ||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +70 °C | |||||||||||||||||||||||||||
UL File No. | NRKH.E348498 & NRKH7.E348498 | |||||||||||||||||||||||||||
1) Temperature stability following adjustment +/-10 °C. | ||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||
ECLASS 5.0 | 27270903 | |||||||||||||||||||||||||||
ECLASS 5.1.4 | 27270903 | |||||||||||||||||||||||||||
ECLASS 6.0 | 27270903 | |||||||||||||||||||||||||||
ECLASS 6.2 | 27270903 | |||||||||||||||||||||||||||
ECLASS 7.0 | 27270903 | |||||||||||||||||||||||||||
ECLASS 8.0 | 27270903 | |||||||||||||||||||||||||||
ECLASS 8.1 | 27270903 | |||||||||||||||||||||||||||
ECLASS 9.0 | 27270903 | |||||||||||||||||||||||||||
ECLASS 10.0 | 27270904 | |||||||||||||||||||||||||||
ECLASS 11.0 | 27270904 | |||||||||||||||||||||||||||
ECLASS 12.0 | 27270903 | |||||||||||||||||||||||||||
ETIM 5.0 | EC001821 | |||||||||||||||||||||||||||
ETIM 6.0 | EC001821 | |||||||||||||||||||||||||||
ETIM 7.0 | EC002719 | |||||||||||||||||||||||||||
ETIM 8.0 | EC002719 | |||||||||||||||||||||||||||
UNSPSC 16.0901 | 39121528 |
