MOQ: | 1 |
Price: | 136$/piece |
Standard Packaging: | 200*50*50mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | ||||||||||||||||||||||||||||||||||

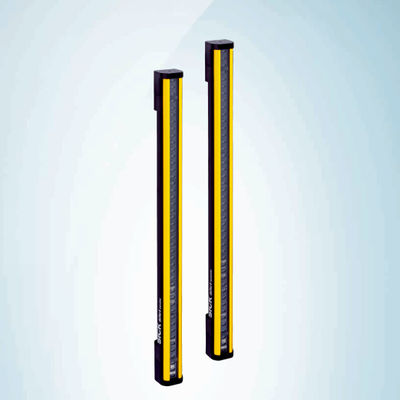

Sub product family | deTec4 Prime | |||||||||||||||||||||||||||||||||
Application | Normal industrial environment | |||||||||||||||||||||||||||||||||
System part | Sender | |||||||||||||||||||||||||||||||||
Resolution | 30 mm | |||||||||||||||||||||||||||||||||
Scanning range | 30 m | |||||||||||||||||||||||||||||||||
Protective field height | 1,200 mm | |||||||||||||||||||||||||||||||||
No blind zones | Yes | |||||||||||||||||||||||||||||||||
Synchronization | Optical synchronization | |||||||||||||||||||||||||||||||||
Integrated laser alignment aid | ✔ | |||||||||||||||||||||||||||||||||
Items supplied | Sender | |||||||||||||||||||||||||||||||||
Safety-related parameters | ||||||||||||||||||||||||||||||||||
Type | Type 4 (IEC 61496-1) | |||||||||||||||||||||||||||||||||
Safety integrity level | SIL 3 (IEC 61508) | |||||||||||||||||||||||||||||||||
Category | Category 4 (ISO 13849-1) | |||||||||||||||||||||||||||||||||
Performance level | PL e (ISO 13849-1) | |||||||||||||||||||||||||||||||||
PFHD (mean probability of a dangerous fail- | ||||||||||||||||||||||||||||||||||
ure per hour) | ||||||||||||||||||||||||||||||||||
Single device | 9.6 x 10-9 | |||||||||||||||||||||||||||||||||
Cascade with one guest | 1.9 x 10-8 | |||||||||||||||||||||||||||||||||
Cascade with two guest devices | 2.9 x 10-8 | |||||||||||||||||||||||||||||||||
TM (mission time) | 20 years (ISO 13849-1) | |||||||||||||||||||||||||||||||||
2 SAFETY LIGHT CURTAINS | SICK Product data sheet | 2025-01-27 16:05:04 | ||||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||||
C4P-SA12030A00 | deTec | ||||||||||||||||||||||||||||||||||
SAFETY LIGHT CURTAINS | ||||||||||||||||||||||||||||||||||
Safe state in the event of a fault | At least one OSSD is in the OFF state. | |||||||||||||||||||||||||||||||||
Functions | ||||||||||||||||||||||||||||||||||
Protective operation | ✔ | |||||||||||||||||||||||||||||||||
Automatic calibration of the protective field width |
✔ | |||||||||||||||||||||||||||||||||
Beam coding | ✔ | |||||||||||||||||||||||||||||||||
Cascading | ✔ | |||||||||||||||||||||||||||||||||
Interfaces | ||||||||||||||||||||||||||||||||||
System connection | Depending on system plug (M12 male connector, 5-pin or 8-pin) | |||||||||||||||||||||||||||||||||
Extension connection | Depending on system plug (without extension connection or with M12 female connector, 5-pin) | |||||||||||||||||||||||||||||||||
Configuration method | DIP switch on system plug | |||||||||||||||||||||||||||||||||
Display elements | LEDs | |||||||||||||||||||||||||||||||||
Electronics | ||||||||||||||||||||||||||||||||||
Protection class | III (IEC 61140) | |||||||||||||||||||||||||||||||||
Supply voltage VS | 24 V DC (19.2 V ... 28.8 V) | |||||||||||||||||||||||||||||||||
Ripple | ≤ 10 % | |||||||||||||||||||||||||||||||||
Power consumption typical | 1.68 W (DC) | |||||||||||||||||||||||||||||||||
Mechanics | ||||||||||||||||||||||||||||||||||
Dimensions | See dimensional drawing | |||||||||||||||||||||||||||||||||
Housing material | Aluminum extruded profile | |||||||||||||||||||||||||||||||||
Ambient data | ||||||||||||||||||||||||||||||||||
Enclosure rating | IP65 (IEC 60529) IP67 (IEC 60529) |
|||||||||||||||||||||||||||||||||
Ambient operating temperature | –30 °C ... +55 °C | |||||||||||||||||||||||||||||||||
Storage temperature | –30 °C ... +70 °C | |||||||||||||||||||||||||||||||||
Air humidity | 15 % ... 95 %, Non-condensing | |||||||||||||||||||||||||||||||||
Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) | |||||||||||||||||||||||||||||||||
Shock resistance | 10 g, 16 ms (IEC 60068-2-27) | |||||||||||||||||||||||||||||||||
Other information | ||||||||||||||||||||||||||||||||||
Wave length | 850 nm | |||||||||||||||||||||||||||||||||
Type of light | Near-infrared (NIR), invisible | |||||||||||||||||||||||||||||||||
Integrated laser alignment aid | ✔ | |||||||||||||||||||||||||||||||||
Laser class | 1 | |||||||||||||||||||||||||||||||||
Wave length | 650 nm | |||||||||||||||||||||||||||||||||
Type of light | Visible red light | |||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||
ECLASS 5.0 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 5.1.4 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 6.0 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 6.2 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 7.0 | 27272704 | |||||||||||||||||||||||||||||||||
2025-01-27 16:05:04 | Product data sheet SAFETY LIGHT CURTAINS | SICK 3 | ||||||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||||||
C4P-SA12030A00 | deTec | ||||||||||||||||||||||||||||||||||
SAFETY LIGHT CURTAINS | ||||||||||||||||||||||||||||||||||
ECLASS 8.0 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 8.1 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 9.0 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 10.0 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 11.0 | 27272704 | |||||||||||||||||||||||||||||||||
ECLASS 12.0 | 27272704 | |||||||||||||||||||||||||||||||||
ETIM 5.0 | EC002549 | |||||||||||||||||||||||||||||||||
ETIM 6.0 | EC002549 | |||||||||||||||||||||||||||||||||
ETIM 7.0 | EC002549 | |||||||||||||||||||||||||||||||||
ETIM 8.0 | EC002549 | |||||||||||||||||||||||||||||||||
UNSPSC 16.0901 | 46171620 |
