deTec C4P-EA12030A00, Product data sheet - SICK part no : 1215314

deTec C4P-EA12030A00, Product data sheet - SICK part no : 1215314

MOQ: 1
Price: 156$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
C4P-EA12030A00
C4P-EA12030A00:
Receiver
Resolution:
30 Mm
Type:
Type 4 (IEC 61496-1)
Product Description

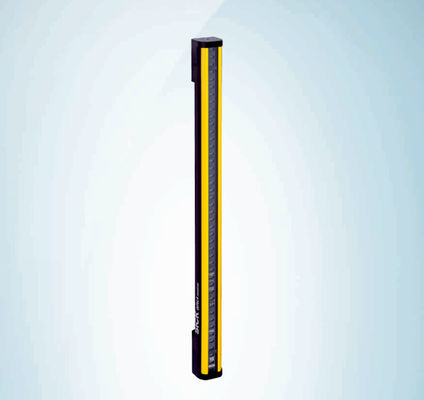

C4P-EA12030A00 | deTec
SAFETY LIGHT CURTAINS
Ordering information
deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 0 deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 1 deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 2       deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 3 deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 4
  The system
  plug has to
  be ordered
  separately.
  For details,
  see“Acces-
  sories”., The
  system plug
  has to be or-
Illustration may differ dered sepa-
rately. For de-
  tails, see“Ac-
  cessories”.
  deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 5The system plug has to be ordered separately. For details, see“Accessories”.
Other models and accessories www.sick.com/deTec

deTec C4P-EA12030A00, Product data sheet - SICK  part no : 1215314 6 US
Detailed technical data
Features
Sub product family deTec4 Prime
Application Normal industrial environment
System part Receiver
Resolution 30 mm
Scanning range 30 m
Protective field height 1,200 mm
Response time 12 ms (Uncoded)
20 ms (code 1 or code 2)

No blind zones Yes
Synchronization Optical synchronization
Items supplied Receiver
Test rod with diameter corresponding to the resolution of the safety light curtain
Safety instruction
Mounting instructions
Operating instructions for download

Safety-related parameters
Type Type 4 (IEC 61496-1)
Safety integrity level SIL 3 (IEC 61508)
Category Category 4 (ISO 13849-1)
Performance level PL e (ISO 13849-1)
PFHD (mean probability of a dangerous fail-
ure per hour)
Single device
9.6 x 10-9
2 SAFETY LIGHT CURTAINS | SICK Product data sheet | 2025-01-27 16:05:04
