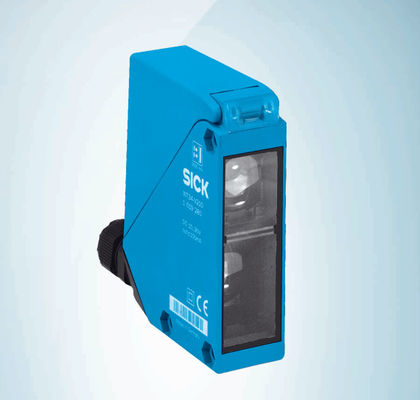

SICK - WL34-B430 - Photoelectric RetroReflective Sensor
  • Name

SICK - WL34-B430 - Photoelectric RetroReflective Sensor

MOQ: 1
Price: 233$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
WL34-B430
WL34-B430:
27 Mm X 92 Mm X 70 Mm
Switching Frequency:
1,000 Hz
Weight:
140 G
Enclosure Rating:
IP67
Product Description
WL34-B430 | W34
COMPACT PHOTOELECTRIC SENSORS
Ordering information
  Type Part no.
  WL34-B430 1019245
Other models and accessories → www.sick.com/W34
Illustration may differ
SICK - WL34-B430 - Photoelectric RetroReflective Sensor 0 SICK - WL34-B430 - Photoelectric RetroReflective Sensor 1 SICK - WL34-B430 - Photoelectric RetroReflective Sensor 2
LISTED
Detailed technical data
Features
Functional principle Photoelectric retro-reflective sensor
Functional principle detail With minimum distance to reflector (dual lens system)
Dimensions (W x H x D) 27 mm x 92 mm x 70 mm
Housing design (light emission) Rectangular
Sensing range max. 0.03 m ... 22 m 1)
Sensing range 0.03 m ... 15 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 250 mm (15 m)
Wave length 660 nm
Adjustment Potentiometer
1) Reflector PL80A.
2) Average service life: 100,000 hat TU = +25 °C.
Mechanics/electronics
Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Current consumption 50 mA
Switching output NPN, PNP
1) Limit values.
2) May not fall below or exceed UV tolerances.
3) Signal transit time with resistive load.
4) With light/dark ratio 1:1.
5) A = VS connections reverse-polarity protected.
6) C = interference suppression.
7) D = outputs overcurrent and short-circuit protected.
8) Reference voltage: 50 V DC.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-09-25 17:23:43
  Subject to change without notice
  WL34-B430 | W34
  COMPACT PHOTOELECTRIC SENSORS
Switching mode Light switching, Dark switching
Switching modeselector Selectable via PNP/NPNselector, selectable via light/dark selector
Output current Imax. ≤ 100 mA
Response time ≤ 500 µs 3)
Switching frequency 1,000 Hz 4)
Connection type Male connector M12, 4-pin
Circuit protection A 5)
C 6)
D 7)
Protection class II 8)
Weight 140 g
Polarisation filter ✔
Housing material Plastic, ABS
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature –40 °C ... +60 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
1) Limit values.
2) May not fall below or exceed UV tolerances.
3) Signal transit time with resistive load.
4) With light/dark ratio 1:1.
5) A = VS connections reverse-polarity protected.
6) C = interference suppression.
7) D = outputs overcurrent and short-circuit protected.
8) Reference voltage: 50 V DC.
Safety-related parameters
MTTFD 834 years
DCavg 0 %
Classifications
ECLASS 5.0 27270902
ECLASS 5.1.4 27270902
ECLASS 6.0 27270902
ECLASS 6.2 27270902
ECLASS 7.0 27270902
ECLASS 8.0 27270902
ECLASS 8.1 27270902
ECLASS 9.0 27270902
ECLASS 10.0 27270902
ECLASS 11.0 27270902
ECLASS 12.0 27270902
ETIM 5.0 EC002717
2024-09-25 17:23:43 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
WL34-B430 | W34
COMPACT PHOTOELECTRIC SENSORS
ETIM 6.0 EC002717
ETIM 7.0 EC002717
ETIM 8.0 EC002717
UNSPSC 16.0901 39121528
