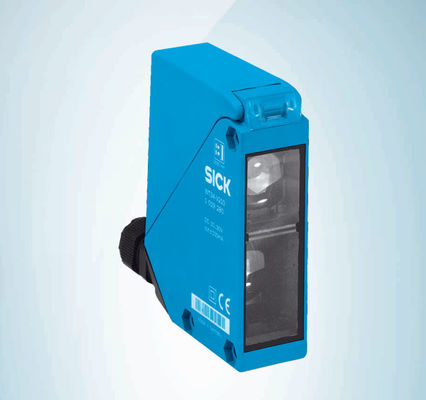

WL34-R230 | SICK Retroreflective Photoelectric Sensor part no : 1019249
  • Name

WL34-R230 | SICK Retroreflective Photoelectric Sensor part no : 1019249

MOQ: 1
Price: 331$/piece
Standard Packaging: 110*80*40mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
WL34-R230
Dimensions (W x H x D):
27 Mm X 92 Mm X 70 Mm
Weight:
140 G
Enclosure Rating:
IP67
Product Description
Features
Functional principle Photoelectric retro-reflective sensor
Functional principle detail With minimum distance to reflector (dual lens system)
Dimensions (W x H x D) 27 mm x 92 mm x 70 mm
Housing design (light emission) Rectangular
Sensing range max. 0.03 m ... 22 m 1)
Sensing range 0.03 m ... 15 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 250 mm (15 m)
Wave length 660 nm
Adjustment Potentiometer
1) Reflector PL80A.
2) Average service life: 100,000 hat TU = +25 °C.
Mechanics/electronics
Supply voltage UB 20 V AC/DC ... 250 V AC/DC
Power consumption < 2 VA
Switching output Relay, electrically isolated 1)
Output function Change-over contacts
Switching mode Light switching, Dark switching 1)
Switching modeselector Selectable via light/dark selector
1) Provide suitable spark suppression for inductive or capacitive loads.
2) With light/dark ratio 1:1.
3) A = VS connections reverse-polarity protected.
4) C = interference suppression.
5) Rated voltage: 250 V AC/DC.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-09-25 17:23:43
  Subject to change without notice
  WL34-R230 | W34
  COMPACT PHOTOELECTRIC SENSORS
Switching current (switching voltage) 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 250 V DC
UL: 4 A @ 250 V AC, general use / 4 A @ 250 V AC, resistive (NO) / 3 A @ 250 V AC, resistive
(NC) / 4 A @ 24 V DC, NO, general use / 3 A @ 24 V DC, NC, general use / R300 / B300 (NO
contacts only)
Response time ≤ 10 ms
Switching frequency 10 Hz 2)
Connection type Terminal connection with M16 gland
Circuit protection A 3)
C 4)
Protection class II 5)
Weight 140 g
Polarisation filter ✔
Housing material Plastic, ABS
Enclosure rating IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
1) Provide suitable spark suppression for inductive or capacitive loads.
2) With light/dark ratio 1:1.
3) A = VS connections reverse-polarity protected.
4) C = interference suppression.
5) Rated voltage: 250 V AC/DC.
Safety-related parameters
MTTFD 478 years
DCavg 0 %
TM (mission time) 20 years
B10d 59,123 Switching cycles 1)
1) Only for devices containing electro-mechanical components. In this case, the MTTFD value of the entire device must be calculated from the given B10D value, the
number of switching cycles and the given MTTFD value.
Classifications
ECLASS 5.0 27270902
ECLASS 5.1.4 27270902
ECLASS 6.0 27270902
ECLASS 6.2 27270902
ECLASS 7.0 27270902
ECLASS 8.0 27270902
ECLASS 8.1 27270902
ECLASS 9.0 27270902
ECLASS 10.0 27270902
ECLASS 11.0 27270902
ECLASS 12.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
2024-09-25 17:23:43 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
WL34-R230 | W34
COMPACT PHOTOELECTRIC SENSORS
ETIM 7.0 EC002717
ETIM 8.0 EC002717
UNSPSC 16.0901 39121528
