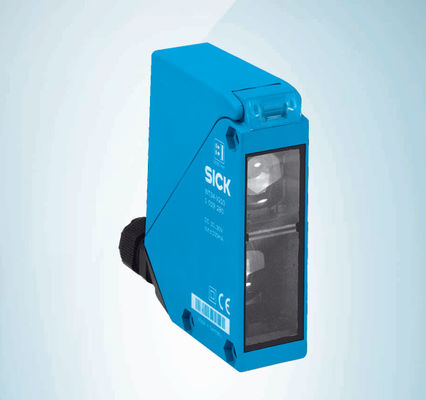

WT34-V210 | SICK Background Suppression Photoelectric part no : 1019280

WT34-V210 | SICK Background Suppression Photoelectric part no : 1019280

MOQ: 1
Price: 302$/piece
Standard Packaging: 110*80*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
WT34-V210
Dimensions (W x H x D):
27 Mm X 92 Mm X 70 Mm
Switching Frequency:
1,000 Hz
Weight:
140 G
Product Description
WT34-V210 | W34
COMPACT PHOTOELECTRIC SENSORS
Ordering information
  Type Part no.
  WT34-V210 1019280
Other models and accessories → www.sick.com/W34
Illustration may differ
WT34-V210 | SICK Background Suppression Photoelectric part no : 1019280 0 WT34-V210 | SICK Background Suppression Photoelectric part no : 1019280 1 WT34-V210 | SICK Background Suppression Photoelectric part no : 1019280 2
LISTED
Detailed technical data
Features
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 27 mm x 92 mm x 70 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 2,500 mm 1)
Sensing range 100 mm ... 2,500 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 80 mm (2,500 mm)
Adjustment Potentiometer
Alarm output
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 hat TU = +25 °C.
Mechanics/electronics
Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Current consumption 50 mA
Switching output NPN, PNP
1) Limit values.
2) May not fall below or exceed UV tolerances.
3) Signal transit time with resistive load.
4) With light/dark ratio 1:1.
5) A = VS connections reverse-polarity protected.
6) C = interference suppression.
7) D = outputs overcurrent and short-circuit protected.
8) Reference voltage: 50 V DC.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-09-25 17:23:43
  Subject to change without notice
  WT34-V210 | W34
  COMPACT PHOTOELECTRIC SENSORS
Switching mode Light switching, Dark switching
Switching modeselector Selectable via PNP/NPNselector, selectable via light/dark selector
Output current Imax. ≤ 100 mA
Response time ≤ 500 µs 3)
Switching frequency 1,000 Hz 4)
Connection type Terminal connection with M16 gland
Circuit protection A 5)
C 6)
D 7)

Protection class II 8)
Weight 140 g
Housing material Plastic, ABS
Enclosure rating IP67
Test input sender off TE to 0 V
Ambient operating temperature –40 °C ... +60 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
1) Limit values.
2) May not fall below or exceed UV tolerances.
3) Signal transit time with resistive load.
4) With light/dark ratio 1:1.
5) A = VS connections reverse-polarity protected.
6) C = interference suppression.
7) D = outputs overcurrent and short-circuit protected.
8) Reference voltage: 50 V DC.
Safety-related parameters
MTTFD 807 years
DCavg 0 %
Classifications
ECLASS 5.0 27270904
ECLASS 5.1.4 27270904
ECLASS 6.0 27270904
ECLASS 6.2 27270904
ECLASS 7.0 27270904
ECLASS 8.0 27270904
ECLASS 8.1 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
2024-09-25 17:23:43 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
WT34-V210 | W34
COMPACT PHOTOELECTRIC SENSORS
ETIM 7.0 EC002719
ETIM 8.0 EC002719
UNSPSC 16.0901 39121528
