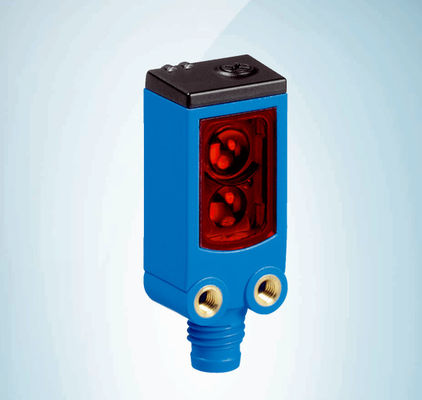

W4 WTB4-3N1361, Product data sheet - SICK

W4 WTB4-3N1361, Product data sheet - SICK

MOQ: 1
Price: 134$/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
WTB4-3N1361
Housing:
Rectangular
Dimensions (W x H x D):
16 Mm X 39.5 Mm X 12 Mm
Weight:
30 G
Product Description
Features
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Sensing range max. 4 mm ... 150 mm 1)
Sensing range 15 mm ... 150 mm 1)
Emitted beam
Light source

Type of light
Light spot size (distance)

PinPoint LED 2)

Visible red light
Ø 7 mm (50 mm)

Key LED figures
Wave length
650 nm
Adjustment Potentiometer, 5 turns
Special applications Detecting small objects
  1) Object with 90% remission (based on standard white, DIN 5033).
  2) Average service life: 100,000 hat TU = +25 °C.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-02-06 21:22:03
  Subject to change without notice
  WTB4-3N1361 | W4
  MINIATURE PHOTOELECTRIC SENSORS
Electronics
Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Current consumption 20 mA 3)
Protection class III
Digital output
Type
Switching mode
Output current Imax.
Response time

Switching frequency

NPN

Light switching
≤ 100 mA

< 0.5 ms 4)

1,000 Hz 5)

Circuit protection A 6)
C 7)
D 8)

1) Limit values.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) Signal transit time with resistive load.
5) With light/dark ratio 1:1.
6) A = VS connections reverse-polarity protected.
7) C = interference suppression.
8) D = outputs overcurrent and short-circuit protected.
Mechanics
Housing Rectangular
Design detail Flat
Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm
Connection Cable, 3-wire, 2 m 1)
Connection detail
Conductor size
Cable diameter
Length of cable (L)

0.14 mm²

Ø 3.4 mm

2 m 1)

Material

Housing
Front screen

Cable

Plastic, ABS

Plastic, PMMA

Plastic, PVC

Weight 30 g
1) Do not bend below 0 °C.
Ambient data
Enclosure rating IP67
IP66

Ambient operating temperature –40 °C ... +60 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
2025-02-06 21:22:03 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
WTB4-3N1361 | W4
MINIATURE PHOTOELECTRIC SENSORS
Classifications
ECLASS 5.0 27270904
ECLASS 5.1.4 27270904
ECLASS 6.0 27270904
ECLASS 6.2 27270904
ECLASS 7.0 27270904
ECLASS 8.0 27270904
ECLASS 8.1 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
ETIM 7.0 EC002719
ETIM 8.0 EC002719
UNSPSC 16.0901 39121528
