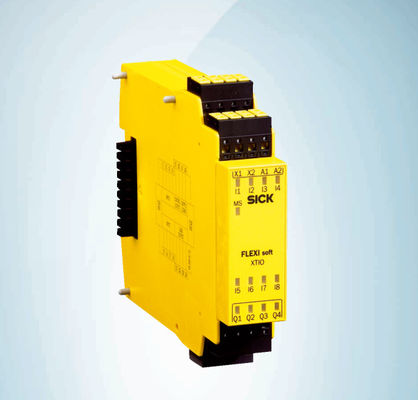

Sick - FX3-XTIO84002 FLEXI SOFT EXTENSION UNIT Part no : 1044125

Sick - FX3-XTIO84002 FLEXI SOFT EXTENSION UNIT Part no : 1044125

MOQ: 1
Price: $116/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
FX3-XTIO84002
Dimensions (W x H x D):
22.5 Mm X 96.5 Mm X 120.6 Mm
Weight:
164 G (± 5 %)
Ambient Operating Temperature:
–25 °C ... +55 °C
Storage Temperature:
–25 °C ... +70 °C
Product Description
Features
Module I/O module
Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
Safety-related parameters
Safety integrity level SIL 3 (IEC 61508)
Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
PFHD (mean probability of a dangerous fail-
ure per hour)
4.8 x 10-9 (EN ISO 13849) 1)
0.9 x 10-9 (EN ISO 13849) 2)

TM (mission time) 20 years (EN ISO 13849)
1) For single channel outputs.
2) For dual channel outputs.
Functions
Flexi Loop-compatible
Fast shut-off
Fast shut-off time 8 ms
Interfaces
Number of safety inputs 8
Number of test outputs 2
Number of safe outputs 4
Connection type Plug-in spring terminals
2 SAFETY CONTROLLERS | SICK Product data sheet | 2024-11-27 22:21:16
  Subject to change without notice
  FX3-XTIO84002 | Flexi Soft
    SAFETY CONTROLLERS
Electrical data
Protection class III (EN 61140)
Voltage supply Via FLEXBUS+
Internal power consumption ≤ 2.2 W 1)
Inputs
Input voltage HIGH
Input voltage LOW
Input current HIGH
Input current LOW

13 V DC ... 30 V DC

–5 V DC ... 5 V DC

2.4 mA ... 3.8 mA

–2.5 mA ... 2.1 mA

Test outputs
Voltage supply Via FLEXBUS+
Type of output PNP semiconductors, short-circuit protected
Test pulse generator 2
Output voltage HIGH 15 V DC ... 30 V DC
Output current ≤ 120 mA 2)
Outputs
Voltage supply Via A1, A2
Supply voltage 24 V DC (16.8 V DC ... 30 V DC)
Type of supply voltage PELV or SELV 3)
Type of output PNP semiconductors, short-circuit protected
Output voltage HIGH 16 V DC ... 30 V DC
Output current ≤ 2 A
1) Via FLEXBUS+, without streams attest outputs.
2) On each of the two test pulse generators. This makes max. 8 testable safe series connections possible per module, each with max. 30 mA.
3) The current of the power supply that powers the module must be limited to a maximum of 4 A, either through the power supply itself or a fuse.
Mechanical data
Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm
Weight 164 g (± 5 %)
Ambient data
Enclosure rating IP20 (EN 60529)
Ambient operating temperature –25 °C ... +55 °C
Storage temperature –25 °C ... +70 °C
Air humidity ≤ 95 %, Non-condensing
Classifications
ECLASS 5.0 27243001
ECLASS 5.1.4 27243101
ECLASS 6.0 27243101
ECLASS 6.2 27243101
ECLASS 7.0 27243101
ECLASS 8.0 27243101
ECLASS 8.1 27243101
ECLASS 9.0 27243101
2024-11-27 22:21:16 | Product data sheet SAFETY CONTROLLERS | SICK 3
Subject to change without notice
FX3-XTIO84002 | Flexi Soft
SAFETY CONTROLLERS
ECLASS 10.0 27243101
ECLASS 11.0 27243101
ECLASS 12.0 27243101
ETIM 5.0 EC001449
ETIM 6.0 EC001449
ETIM 7.0 EC001449
ETIM 8.0 EC001449
UNSPSC 16.0901 32151705
