MOQ: | 1 |
Price: | 130$/piece |
Standard Packaging: | 80*50*50mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | |||||||||||||||||||||||||||||||||||
Device type | Photoelectric sensors | ||||||||||||||||||||||||||||||||||
Functional principle | Photoelectric proximity sensor | ||||||||||||||||||||||||||||||||||
Functional principle detail | Energetic | ||||||||||||||||||||||||||||||||||
Sensing range max. | ≤ 300 mm 1) | ||||||||||||||||||||||||||||||||||
Sensing range | ≤ 250 mm | ||||||||||||||||||||||||||||||||||
Polarisation filters | No | ||||||||||||||||||||||||||||||||||
Emitted beam Light source Type of light Light spot size (distance) |
PinPoint LED 2) Visible red light Ø 7 mm (90 mm) |
||||||||||||||||||||||||||||||||||
Key LED figures Wave length |
650 nm | ||||||||||||||||||||||||||||||||||
Adjustment | Mechanical spindle, 5 turns | ||||||||||||||||||||||||||||||||||
1) | Object with 90 % reflectance (referred to standard white, DIN 5033). | ||||||||||||||||||||||||||||||||||
2) | Average service life: 100,000 hat TU = +25 °C. | ||||||||||||||||||||||||||||||||||
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2021-12-07 22:21:40 | |||||||||||||||||||||||||||||||||||
Subject to change without notice | |||||||||||||||||||||||||||||||||||

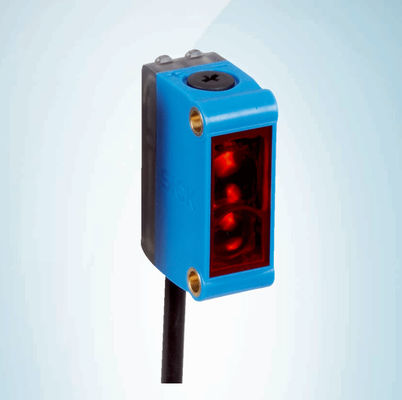

GTE6-N1212 | G6 | |||||||||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | |||||||||||||||||||||||||||||||||||
Electrical data | |||||||||||||||||||||||||||||||||||
Supply voltage UB | 10 V DC ... 30 V DC 1) | ||||||||||||||||||||||||||||||||||
Ripple | ± 10 % 2) | ||||||||||||||||||||||||||||||||||
Power consumption | 30 mA 3) | ||||||||||||||||||||||||||||||||||
Protection class | III | ||||||||||||||||||||||||||||||||||
Digital output Type Signal voltage NPN HIGH/LOW Output current Imax. Response time Switching frequency |
NPN Approx. VS / ≤ 3 V ≤ 100 mA 4) < 1,250 ms 5) 500 Hz 6) |
||||||||||||||||||||||||||||||||||
Switching mode | Light/dark switching | ||||||||||||||||||||||||||||||||||
Switching modeselector | Selectable via light/dark selector | ||||||||||||||||||||||||||||||||||
Circuit protection | A 7) B 8) D 9) |
||||||||||||||||||||||||||||||||||
1) Limit values when operated in short-circuit protected network: max. 8 A. 2) May not exceed or fall below Uv tolerances. 3) Without load. |
|||||||||||||||||||||||||||||||||||
4) At Uv > 24 V, IA max. = 50 mA. | |||||||||||||||||||||||||||||||||||
5) Signal transit time with resistive load. 6) With light/dark ratio 1:1. |
|||||||||||||||||||||||||||||||||||
7) A = VS connections reverse-polarity protected. 8) B = inputs and output reverse-polarity protected. 9) D = outputs overcurrent and short-circuit protected. Mechanical data |
|||||||||||||||||||||||||||||||||||
Housing | Rectangular | ||||||||||||||||||||||||||||||||||
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm | ||||||||||||||||||||||||||||||||||
Connection | Cable, 3-wire, 2 m 1) | ||||||||||||||||||||||||||||||||||
Connection detail Conductor size Length of cable |
0.14 mm² 2 m |
||||||||||||||||||||||||||||||||||
Material Housing Front screen Cable |
Plastic, ABS/PC Plastic, PMMA PVC |
||||||||||||||||||||||||||||||||||
Weight | 60 g | ||||||||||||||||||||||||||||||||||
Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A | ||||||||||||||||||||||||||||||||||
1) Do not bend below 0 °C. | |||||||||||||||||||||||||||||||||||
Ambient data | |||||||||||||||||||||||||||||||||||
Enclosure rating IP67 | |||||||||||||||||||||||||||||||||||
1) | Temperature stability following adjustment +/-10 °C. | ||||||||||||||||||||||||||||||||||
2021-12-07 22:21:40 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3 | |||||||||||||||||||||||||||||||||||
Subject to change without notice | |||||||||||||||||||||||||||||||||||
GTE6-N1212 | G6 | |||||||||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | |||||||||||||||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +55 °C 1) | ||||||||||||||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +70 °C | ||||||||||||||||||||||||||||||||||
UL File No. | NRKH.E348498 & NRKH7.E348498 | ||||||||||||||||||||||||||||||||||
1) Temperature stability following adjustment +/-10 °C. | |||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||
ECl@ss 5.0 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 5.1.4 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 6.0 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 6.2 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 7.0 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 8.0 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 8.1 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 9.0 | 27270903 | ||||||||||||||||||||||||||||||||||
ECl@ss 10.0 | 27270904 | ||||||||||||||||||||||||||||||||||
ECl@ss 11.0 | 27270904 | ||||||||||||||||||||||||||||||||||
ETIM 5.0 | EC001821 | ||||||||||||||||||||||||||||||||||
ETIM 6.0 | EC001821 | ||||||||||||||||||||||||||||||||||
ETIM 7.0 | EC002719 | ||||||||||||||||||||||||||||||||||
ETIM 8.0 | EC002719 | ||||||||||||||||||||||||||||||||||
UNSPSC 16.0901 | 39121528 |
