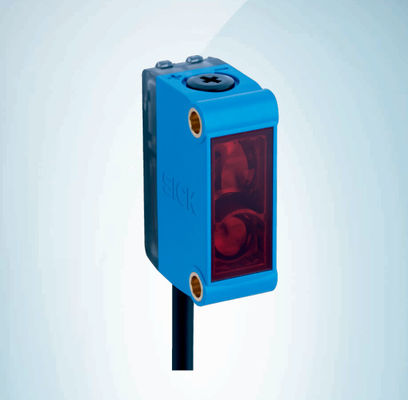

G6 GTB6-N1212, Product data sheet - RS Components Part no : 1052445

G6 GTB6-N1212, Product data sheet - RS Components Part no : 1052445

MOQ: 1
Price: 235$/piece
Standard Packaging: 80*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
GTB6-N1212
Dimensions (W x H x D):
12 Mm X 31.5 Mm X 21 Mm
Weight:
60 G
Ambient Operating Temperature:
–25 °C ... +55 °C
Product Description
Features
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Sensing range max. 5 mm ... 250 mm 1)
Sensing range 35 mm ... 140 mm
Polarisation filters No
Emitted beam
Light source

Type of light
Light spot size (distance)

PinPoint LED 2)

Visible red light
Ø 6 mm (100 mm)

Key LED figures
Wave length
650 nm
Adjustment Mechanical spindle, 5 turns
Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 hat TU = +25 °C.
Safety-related parameters
MTTFD 1,770 years
DCavg 0%
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-02-15 11:38:29
  Subject to change without notice
  GTB6-N1212 | G6
  MINIATURE PHOTOELECTRIC SENSORS
Electronics
Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Current consumption 30 mA 3)
Protection class III
Digital output
Type
Switching mode
Switching modeselector
Signal voltage NPN HIGH/LOW
Output current Imax.

Response time

Switching frequency

NPN

Light/dark switching
Selectable via light/dark selector
Approx. VS / ≤ 3 V

≤ 100 mA 4)

< 625 µs 5)

1,000 Hz 6)

Circuit protection A 7)
B 8)
D 9)

1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) At Uv > 24 V, IA max. = 50 mA.
5) Signal transit time with resistive load.
6) With light/dark ratio 1:1.
7) A = VS connections reverse-polarity protected.
8) B = inputs and output reverse-polarity protected.
9) D = outputs overcurrent and short-circuit protected.
Mechanics
Housing Rectangular
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Connection Cable, 3-wire, 2 m 1)
Connection detail
Conductor size
Length of cable (L)

0.14 mm²

2 m 1)

Material

Housing
Front screen

Cable

Plastic, ABS/PC
Plastic, PMMA

Plastic, PVC

Weight 60 g
1) Do not bend below 0 °C.
Ambient data
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C 1)
1) Temperature stability following adjustment +/-10 °C.
2025-02-15 11:38:29 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
GTB6-N1212 | G6
MINIATURE PHOTOELECTRIC SENSORS
Ambient temperature, storage –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
1) Temperature stability following adjustment +/-10 °C.
Classifications
ECLASS 5.0 27270904
ECLASS 5.1.4 27270904
ECLASS 6.0 27270904
ECLASS 6.2 27270904
ECLASS 7.0 27270904
ECLASS 8.0 27270904
ECLASS 8.1 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
ETIM 7.0 EC002719
ETIM 8.0 EC002719
UNSPSC 16.0901 39121528
