MOQ: | 1 |
Price: | $73/piece |
Standard Packaging: | 70*40*40mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |

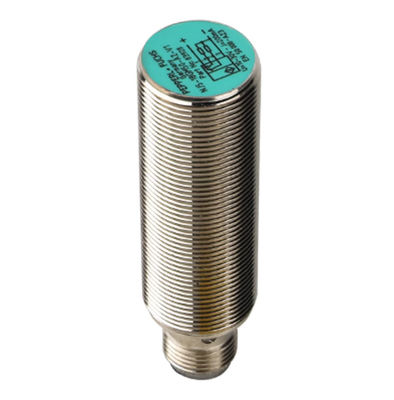

Inductive sensor NBN4-12GM50-E2-V1 | ||||||||||||||||||
![]() |
||||||||||||||||||
Switching frequency | f | 0 ... 1200 Hz | ||||||||||||||||
Reverse polarity protection | reverse polarity protected | |||||||||||||||||
Short-circuit protection | pulsing | |||||||||||||||||
Voltage drop | Ud | ≤ 3 V | ||||||||||||||||
Repeat accuracy | R | ≤ 0.01 mm | ||||||||||||||||
Operating current | IL | 0 ... 200 mA | ||||||||||||||||
Off-state current | Ir | 0 ... 0.5 mA typ. 0.1 µA at 25 °C | ||||||||||||||||
No-load supply current | I0 | ≤ 17 mA | ||||||||||||||||
Time delay before availability | tv | ≤ 8 ms | ||||||||||||||||
Switching state indicator | Multihole-LED, yellow | |||||||||||||||||
Functional safety related parameters | ||||||||||||||||||
MTTFd | 990 a | |||||||||||||||||
Mission Time (TM) | 20 a | |||||||||||||||||
Diagnostic Coverage (DC) | 0 % | |||||||||||||||||
Compliance with standards and directives | ||||||||||||||||||
Standard conformity | ||||||||||||||||||
Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|||||||||||||||||
Approvals and certificates | ||||||||||||||||||
EAC conformity | TR CU 020/2011 | |||||||||||||||||
UL approval | cULus Listed, General Purpose | |||||||||||||||||
CSA approval | cCSAus Listed, General Purpose | |||||||||||||||||
CCC approval | CCC approval / marking not required for products rated ≤36 V | |||||||||||||||||
Ambient conditions | ||||||||||||||||||
Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |||||||||||||||||
Mechanical specifications | ||||||||||||||||||
Connection type | Connector M12 x 1 , 4-pin | |||||||||||||||||
Housing material | brass, nickel-plated | |||||||||||||||||
Sensing face | PBT | |||||||||||||||||
Degree of protection | IP67 | |||||||||||||||||
General information | ||||||||||||||||||
Scope of delivery | 2 self locking nuts in scope of delivery |
