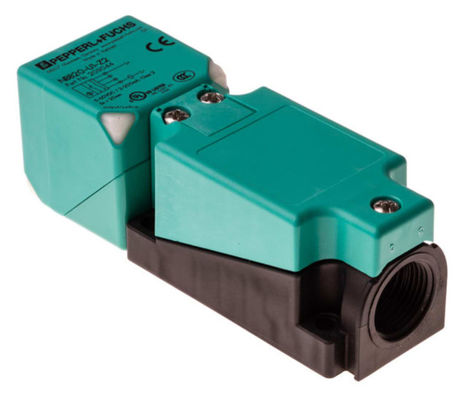

Pepperl-Fuchs Inductive Sensor NBB20-U1-Z2 Sensor Head Bidirectional And Rotatable < 20 Mm Flush< 2-wire DC< 2 LEDs Indicator For 360° Visibility
  • Name
  • Name

Pepperl-Fuchs Inductive Sensor NBB20-U1-Z2 Sensor Head Bidirectional And Rotatable < 20 Mm Flush< 2-wire DC< 2 LEDs Indicator For 360° Visibility

MOQ: 1
Price: $149/PIECE
Standard Packaging: 50*50*120mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
Pepperl-Fuchs
Certification
3C
Model Number
NBB20-U1-Z2
Rated Operating Distance:
20 Mm
Output Type:
2-wire
Highlight:

2 LEDs indicator Inductive sensor

,

Inductive sensor NBB20-U1-Z2

,

360° visibility Inductive sensor

Product Description
Inductive sensor NBB20-U1-Z2
  Technical Data
  Switching frequency f 0 ... 250 Hz
  Hysteresis H typ. 5 %
  Reverse polarity protection   reverse polarity tolerant
  Short-circuit protection   yes
  Voltage drop Ud ≤ 5 V
  Voltage drop at IL
  Voltage drop IL = 100 mA, switching
element on		 Ud ... 5 V
  Operating current IL 2 ... 200 mA
  Off-state current Ir 0 ... 0.5 mA
  Switching state indicator   2 LED, yellow
  Functional safety related parameters
  MTTFd   1162 a
  Mission Time (TM)   20 a
  Diagnostic Coverage (DC)   0 %
  Compliance with standards and directives
  Standard conformity
  Standards   EN IEC 60947-5-2
  Approvals and certificates
  UL approval   cULus Listed, General Purpose
  CCC approval   Certified by China Compulsory Certification (CCC)
  Ambient conditions
  Ambient temperature   -25 ... 85 °C (-13 ... 185 °F)
  Mechanical specifications
  Connection type   screw terminals
  Information for connection   A maximum of two conductors with the same core cross section may be mounted on
one terminal connection!
tightening torque 1.2 Nm + 10 %
  Core cross section   up to 2.5 mm2
  Minimum core cross-section   without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2
  Maximum core cross-section   without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2
  Housing material   PA/metal with epoxy powder coating
  Sensing face   PA
  Housing base   plastic
  Degree of protection   IP68 / IP69K
  Mass   225 g
  Dimensions
  Height   40 mm
  Width   40 mm
  Length   118 mm
  Note   Tightening torque: 1.8 Nm (housing)
