MOQ: | 1 |
Price: | $73/piece |
Standard Packaging: | 70*40*40mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Technical Data | ![]() |
||||||||||||||||||
![]() |
General specifications | ||||||||||||||||||
Switching function | Normally open (NO) | ||||||||||||||||||
Output type | NPN | ||||||||||||||||||
Rated operating distance | sn | 2 mm | |||||||||||||||||
Installation | flush | ||||||||||||||||||
Output polarity | DC | ||||||||||||||||||
Assured operating distance | sa | 0 ... 1.62 mm | |||||||||||||||||
Reduction factor rAl | 0.3 | ||||||||||||||||||
Reduction factor rCu | 0.2 | ||||||||||||||||||
Reduction factor r304 | 0.7 | ||||||||||||||||||
Nominal ratings | |||||||||||||||||||
Operating voltage | UB | 10 ... 30 V | |||||||||||||||||
Switching frequency | f | 0 ... 1500 Hz | |||||||||||||||||
Reverse polarity protection | reverse polarity protected | ||||||||||||||||||
Short-circuit protection | pulsing | ||||||||||||||||||
Voltage drop | Ud | ≤ 3 V | |||||||||||||||||
Refer to "General Notes Relating to Pepperl+Fuchs Product Information". | |||||||||||||||||||
Pepperl+Fuchs Group | USA: +1 330 486 0001 | Germany: +49 621 776 1111 | Singapore: +65 6779 9091 | ![]() |
|||||||||||||||
www.pepperl-fuchs.com | fa-info@us.pepperl-fuchs.com | fa-info@de.pepperl-fuchs.com | fa-info@sg.pepperl-fuchs.com | ||||||||||||||||

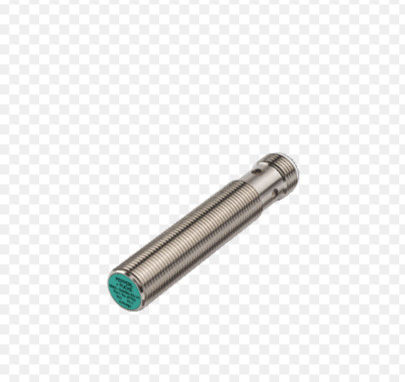

Inductive sensor NBB2-12GM50-E0-V1 | |||||||||||||||||||
![]() |
|||||||||||||||||||
Operating current | IL | 0 ... 200 mA | |||||||||||||||||
Off-state current | Ir | 0 ... 0.5 mA typ. 0.1 µA | |||||||||||||||||
No-load supply current | I0 | ≤ 17 mA | |||||||||||||||||
Switching state indicator | Multihole-LED, yellow | ||||||||||||||||||
Functional safety related parameters | |||||||||||||||||||
MTTFd | 1600 a | ||||||||||||||||||
Mission Time (TM) | 20 a | ||||||||||||||||||
Diagnostic Coverage (DC) | 0 % | ||||||||||||||||||
Compliance with standards and directives | |||||||||||||||||||
Standard conformity | |||||||||||||||||||
Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
||||||||||||||||||
Approvals and certificates | |||||||||||||||||||
UL approval | cULus Listed, General Purpose | ||||||||||||||||||
CSA approval | cCSAus Listed, General Purpose | ||||||||||||||||||
CCC approval | CCC approval / marking not required for products rated ≤36 V | ||||||||||||||||||
Ambient conditions | |||||||||||||||||||
Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | ||||||||||||||||||
Mechanical specifications | |||||||||||||||||||
Connection type | Connector M12 x 1 , 4-pin | ||||||||||||||||||
Housing material | brass, nickel-plated | ||||||||||||||||||
Sensing face | PBT | ||||||||||||||||||
Degree of protection | IP67 | ||||||||||||||||||
General information | |||||||||||||||||||
Scope of delivery | 2 self locking nuts in scope of delivery |
