MOQ: | 1 |
Price: | $64/piece |
Standard Packaging: | 80*50*50mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Detailed technical data | ||||||||||||||||||||||||
Features | ||||||||||||||||||||||||
Housing | Metric | |||||||||||||||||||||||
Housing | Standard design | |||||||||||||||||||||||
Thread size | M18 x 1 | |||||||||||||||||||||||
Diameter | Ø 18 mm | |||||||||||||||||||||||
Sensing range Sn | 12 mm | |||||||||||||||||||||||
Installation type | Non-flush | |||||||||||||||||||||||
Switching frequency | 300 Hz | |||||||||||||||||||||||
Connection type | Cable, 3-wire, 2 m | |||||||||||||||||||||||
Switching output | PNP | |||||||||||||||||||||||
Output function | NC | |||||||||||||||||||||||
Electrical wiring | DC 3-wire | |||||||||||||||||||||||
Enclosure rating | IP67 1) | |||||||||||||||||||||||
1) According to EN 60529. | ||||||||||||||||||||||||
Mechanics/electronics | ||||||||||||||||||||||||
Supply voltage | 10 V DC ... 30 V DC | |||||||||||||||||||||||
Ripple | ≤ 10 % | |||||||||||||||||||||||
Voltage drop | ≤ 1 V 1) | |||||||||||||||||||||||
Time delay before availability | ≤ 100 ms | |||||||||||||||||||||||
Hysteresis | 2 % ... 15 % | |||||||||||||||||||||||
Reproducibility | ≤ 5 % 2) 3) | |||||||||||||||||||||||
Temperature drift (of Sr) | ± 10 % | |||||||||||||||||||||||
EMC | According to EN 60947-5-2 | |||||||||||||||||||||||
1) | At Ia max. | |||||||||||||||||||||||
2) | Supply voltage U B and constant ambient temperature Ta. | |||||||||||||||||||||||
3) | Of Sr. | |||||||||||||||||||||||
2 INDUCTIVE PROXIMITY SENSORS | SICK Product data sheet | 2024-10-22 14:07:27 | ||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||

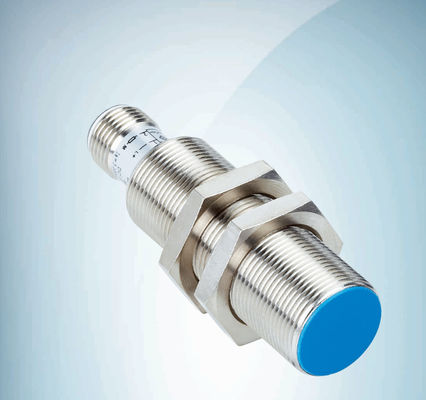

IM18-12NPO-ZW1 | IM Standard | ||||||||||||||||||||||||
INDUCTIVE PROXIMITY SENSORS | ||||||||||||||||||||||||
Continuous current Ia | ≤ 400 mA | |||||||||||||||||||||||
Cable material | PVC | |||||||||||||||||||||||
Conductor size | 0.34 mm² | |||||||||||||||||||||||
Short-circuit protection | ✔ | |||||||||||||||||||||||
Power-up pulse protection | ✔ | |||||||||||||||||||||||
Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm | |||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +70 °C | |||||||||||||||||||||||
Housing material | Brass, Nickel-plated brass | |||||||||||||||||||||||
Sensing face material | Plastic | |||||||||||||||||||||||
Housing length | 50 mm | |||||||||||||||||||||||
Thread length | 32 mm | |||||||||||||||||||||||
Tightening torque, max. | 30 Nm | |||||||||||||||||||||||
1) At Ia max. | ||||||||||||||||||||||||
2) Supply voltage U B and constant ambient temperature Ta. | ||||||||||||||||||||||||
3) Of Sr. |
