MOQ: | 1 |
Price: | $699/piece |
Standard Packaging: | 20*40*40mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Features | ||||||||||||||||||||||||||||||
Functional principle | Photoelectric proximity sensor | |||||||||||||||||||||||||||||
Functional principle detail | Background suppression | |||||||||||||||||||||||||||||
Sensing range max. | 5 mm ... 250 mm 1) | |||||||||||||||||||||||||||||
Sensing range | 35 mm ... 140 mm | |||||||||||||||||||||||||||||
Polarisation filters | No | |||||||||||||||||||||||||||||
Emitted beam Light source Type of light Light spot size (distance) | PinPoint LED 2) Visible red light Ø 6 mm (100 mm) | |||||||||||||||||||||||||||||
Key LED figures Wave length | 650 nm | |||||||||||||||||||||||||||||
Adjustment | Mechanical spindle, 5 turns | |||||||||||||||||||||||||||||
Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A | |||||||||||||||||||||||||||||
1) Object with 90% remission (based on standard white, DIN 5033). | ||||||||||||||||||||||||||||||
2) Average service life: 100,000 hat TU = +25 °C. | ||||||||||||||||||||||||||||||
Safety-related parameters | ||||||||||||||||||||||||||||||
MTTFD | 1,770 years | |||||||||||||||||||||||||||||
DCavg | 0% | |||||||||||||||||||||||||||||
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-12-13 18:32:34 | ||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||

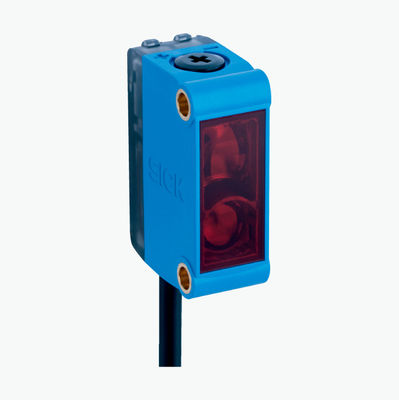

GTB6-N1212 | G6 | ||||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||||||||
Electrical data | ||||||||||||||||||||||||||||||
Supply voltage UB | 10 V DC ... 30 V DC 1) | |||||||||||||||||||||||||||||
Ripple | ± 10 % 2) | |||||||||||||||||||||||||||||
Current consumption | 30 mA 3) | |||||||||||||||||||||||||||||
Protection class | III | |||||||||||||||||||||||||||||
Digital output Type Switching mode Switching modeselector Signal voltage NPN HIGH/LOW Output current Imax. Response time Switching frequency | NPN Light/dark switching Selectable via light/dark selector Approx. VS / ≤ 3 V ≤ 100 mA 4) < 625 µs 5) 1,000 Hz 6) | |||||||||||||||||||||||||||||
Circuit protection | A 7) B 8) D 9) | |||||||||||||||||||||||||||||
1) Limit values when operated in short-circuit protected network: max. 8 A. 2) May not fall below or exceed UV tolerances. 3) Without load. | ||||||||||||||||||||||||||||||
4) At Uv > 24 V, IA max. = 50 mA. | ||||||||||||||||||||||||||||||
5) Signal transit time with resistive load. 6) With light/dark ratio 1:1. | ||||||||||||||||||||||||||||||
7) A = VS connections reverse-polarity protected. 8) B = inputs and output reverse-polarity protected. 9) D = outputs overcurrent and short-circuit protected. Mechanical data | ||||||||||||||||||||||||||||||
Housing | Rectangular | |||||||||||||||||||||||||||||
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm | |||||||||||||||||||||||||||||
Connection | Cable, 3-wire, 2 m 1) | |||||||||||||||||||||||||||||
Connection detail Conductor size Length of cable (L) | 0.14 mm² 2 m 1) | |||||||||||||||||||||||||||||
Material Housing Front screen Cable | Plastic, ABS/PC Plastic, PMMA Plastic, PVC | |||||||||||||||||||||||||||||
Weight | 60 g | |||||||||||||||||||||||||||||
1) Do not bend below 0 °C. | ||||||||||||||||||||||||||||||
Ambient data | ||||||||||||||||||||||||||||||
Enclosure rating | IP67 | |||||||||||||||||||||||||||||
Ambient operating temperature | –25 °C ... +55 °C 1) | |||||||||||||||||||||||||||||
1) | Temperature stability following adjustment +/-10 °C. | |||||||||||||||||||||||||||||
2024-12-13 18:32:34 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3 | ||||||||||||||||||||||||||||||
Subject to change without notice | ||||||||||||||||||||||||||||||
GTB6-N1212 | G6 | ||||||||||||||||||||||||||||||
MINIATURE PHOTOELECTRIC SENSORS | ||||||||||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +70 °C | |||||||||||||||||||||||||||||
UL File No. | NRKH.E348498 & NRKH7.E348498 | |||||||||||||||||||||||||||||
1) Temperature stability following adjustment +/-10 °C. |
