Detailed technical data | |||||||||||||||||||||||||||||||||||||||||||
Features | |||||||||||||||||||||||||||||||||||||||||||
Measuring range | 50 mm ... 12,000 mm, 90% remission factor 50 mm ... 5,300 mm, 18 % remission 50 mm ... 3,100 mm, 6% remission factor |
1) 2) | |||||||||||||||||||||||||||||||||||||||||
Target | Natural objects | ||||||||||||||||||||||||||||||||||||||||||
Resolution | 0.1 mm | ||||||||||||||||||||||||||||||||||||||||||
Repeatability | ≥ 0.5 mm 2) 3) 4) | ||||||||||||||||||||||||||||||||||||||||||
Measurement accuracy | Typ. ± 10 mm | 4) | |||||||||||||||||||||||||||||||||||||||||
Response time | 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms | 5) 6) | |||||||||||||||||||||||||||||||||||||||||
Switching frequency | 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz | 5) 6) | |||||||||||||||||||||||||||||||||||||||||
Output time | 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7) | ||||||||||||||||||||||||||||||||||||||||||
Light source | Laser, red visible red |
8) light |
|||||||||||||||||||||||||||||||||||||||||
Type of light | Visible red light | ||||||||||||||||||||||||||||||||||||||||||
Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) | ||||||||||||||||||||||||||||||||||||||||||
Typ. light spot size (distance) | 15 mm x 15 mm (at 2 m) | ||||||||||||||||||||||||||||||||||||||||||
Additional function | Set speed: Super Fast ... Super Slow Teach-in of analog output and invertible analog output Output Q2 adaptable: Current output / Voltage output / Digital output |
||||||||||||||||||||||||||||||||||||||||||
1) | For speed setting Slow. | ||||||||||||||||||||||||||||||||||||||||||
2) | See repeatability characteristic lines. | ||||||||||||||||||||||||||||||||||||||||||
3) | Equivalent to 1 σ . | ||||||||||||||||||||||||||||||||||||||||||
4) | 6% ... 90% remission factor. | ||||||||||||||||||||||||||||||||||||||||||
5) | Depending on the set speed: Super Fast ... Super Slow. | ||||||||||||||||||||||||||||||||||||||||||
6) | Lateral entry of the object into the measuring range. | ||||||||||||||||||||||||||||||||||||||||||
7) | Continuous change of distance in measuring range. | ||||||||||||||||||||||||||||||||||||||||||
8) | Wavelength: 658 nm; max. output: 250 mW; pulse duration: 4 ns; duty cycle: 1/250. | ||||||||||||||||||||||||||||||||||||||||||
2 LASER DISTANCE SENSORS | SICK Product data sheet | 2024-12-05 16:29:46 | |||||||||||||||||||||||||||||||||||||||||||
Subject to change without notice | |||||||||||||||||||||||||||||||||||||||||||

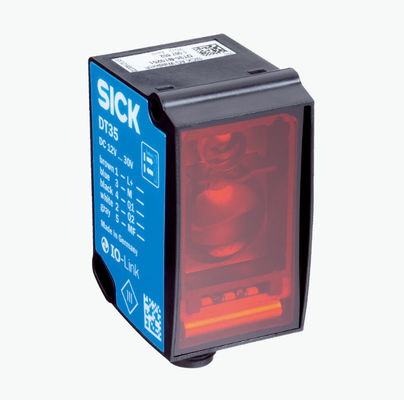

DT35-B15251 | Dx35 | |||||||||||||||||||||||||||||||||||||||||||
MID RANGE DISTANCE SENSORS | |||||||||||||||||||||||||||||||||||||||||||
Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB) Teach-in of digital output and digital output invertible Multifunctional input: laser off/ external teach / deactivated Reset to factory default |
|||||||||||||||||||||||||||||||||||||||||||
Average laser service life (at 25 °C) | 100,000 h | ||||||||||||||||||||||||||||||||||||||||||
Safety-related parameters | MTTFD DCavg |
101 years 0% |
|||||||||||||||||||||||||||||||||||||||||
1) For speed setting Slow. | |||||||||||||||||||||||||||||||||||||||||||
2) See repeatability characteristic lines. | |||||||||||||||||||||||||||||||||||||||||||
3) Equivalent to 1 σ . | |||||||||||||||||||||||||||||||||||||||||||
4) 6% ... 90% remission factor. | |||||||||||||||||||||||||||||||||||||||||||
5) Depending on the set speed: Super Fast ... Super Slow. 6) Lateral entry of the object into the measuring range. 7) Continuous change of distance in measuring range. |
|||||||||||||||||||||||||||||||||||||||||||
8) Wavelength: 658 nm; max. output: 250 mW; pulse duration: 4 ns; duty cycle: 1/250. Interfaces |
|||||||||||||||||||||||||||||||||||||||||||
IO-Link | Function Data transmission rate |
✔, IO-Link V1.1 Process data, parameterization, diagnosis 38.4 kbit/s |
|||||||||||||||||||||||||||||||||||||||||
Digital output | Number Type Function Maximum output current IA |
1 ... 2 1) 2) Push-pull: PNP/NPN Output Q2 adaptable: Current output / Voltage output / Digital output ≤ 100 mA |
|||||||||||||||||||||||||||||||||||||||||
Analog output | Number Type Function Current Voltage Resolution |
1 Current output / voltage output Output Q2 adaptable: Current output / Voltage output / Digital output 4 mA ... 20 mA, ≤ 450 Ω 0 V ... 10 V, ≥ 50,000 Ω 12 bit |
|||||||||||||||||||||||||||||||||||||||||
Multifunctional | input (MF) | 1 x 3) | |||||||||||||||||||||||||||||||||||||||||
Hysteresis | 0 mm ... 11,950 mm 4) | ||||||||||||||||||||||||||||||||||||||||||
1) Output Q short-circuit protected. | |||||||||||||||||||||||||||||||||||||||||||
2) Voltage drop < 3 V. | |||||||||||||||||||||||||||||||||||||||||||
3) Response time ≤ 60 ms. | |||||||||||||||||||||||||||||||||||||||||||
4) Configurable via IO-Link. | |||||||||||||||||||||||||||||||||||||||||||
Electronics | |||||||||||||||||||||||||||||||||||||||||||
Supply voltage UB | DC 12 V ... 30 V 1) 2) | ||||||||||||||||||||||||||||||||||||||||||
Power consumption | ≤ 1.7 W 3) | ||||||||||||||||||||||||||||||||||||||||||
1) | Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A. | ||||||||||||||||||||||||||||||||||||||||||
2) | When using IO-Link output Vs > 18 V. When using analog voltage output Vs > 13 V. | ||||||||||||||||||||||||||||||||||||||||||
3) | Without load, at +20 °C. | ||||||||||||||||||||||||||||||||||||||||||
4) | May not fall short of or exceed VS tolerances. | ||||||||||||||||||||||||||||||||||||||||||
2024-12-05 16:29:46 | Product data sheet LASER DISTANCE SENSORS | SICK 3 | |||||||||||||||||||||||||||||||||||||||||||
Subject to change without notice | |||||||||||||||||||||||||||||||||||||||||||
DT35-B15251 | Dx35 | |||||||||||||||||||||||||||||||||||||||||||
MID RANGE DISTANCE SENSORS | |||||||||||||||||||||||||||||||||||||||||||
Ripple | ≤ 5 Vpp | 4) | |||||||||||||||||||||||||||||||||||||||||
Initialization time | ≤ 500 ms | ||||||||||||||||||||||||||||||||||||||||||
Warm-up time | ≤ 20 min | ||||||||||||||||||||||||||||||||||||||||||
Indication | LEDs | ||||||||||||||||||||||||||||||||||||||||||
Enclosure rating | IP65 IP67 |
||||||||||||||||||||||||||||||||||||||||||
Protection class | III | ||||||||||||||||||||||||||||||||||||||||||
1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A. 2) When using IO-Link output Vs > 18 V. When using analog voltage output Vs > 13 V. 3) Without load, at +20 °C. |
|||||||||||||||||||||||||||||||||||||||||||
4) May not fall short of or exceed VS tolerances. Mechanics |
|||||||||||||||||||||||||||||||||||||||||||
Dimensions (W x H x D) | 32 mm x 58.67 mm x 42.7 mm | ||||||||||||||||||||||||||||||||||||||||||
Housing material | Plastic (ABS/PC) | ||||||||||||||||||||||||||||||||||||||||||
Window material | Plastic (PMMA) | ||||||||||||||||||||||||||||||||||||||||||
Weight | 65 g | ||||||||||||||||||||||||||||||||||||||||||
Connection type | Male connector, M12, 5-pin | ||||||||||||||||||||||||||||||||||||||||||
Ambient data | |||||||||||||||||||||||||||||||||||||||||||
Ambient temperature, operation | –30 °C ... +55 °C, Uv ≤ 24 V | ||||||||||||||||||||||||||||||||||||||||||
Ambient temperature, storage | –40 °C ... +75 °C | ||||||||||||||||||||||||||||||||||||||||||
Max. rel. humidity (not condensing) | ≤ 95 % | ||||||||||||||||||||||||||||||||||||||||||
Vibration resistance | EN 60068-2-6, EN 60068-2-64 | ||||||||||||||||||||||||||||||||||||||||||
Shock resistance | EN 60068-2-27 |
