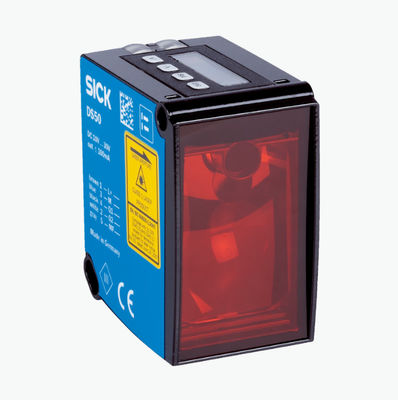

SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361

SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361

MOQ: 1
Price: $706/piece
Standard Packaging: 50*70*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
SICK
Certification
3C
Model Number
DL50-P1123
Dimensions (W x H x D):
36.1 Mm X 62.7 Mm X 57.7 Mm
Weight:
200 G
Part No:
1047361
Product Description
Detailed technical data
Features
Measuring range 200 mm ... 50,000 mm, on“diamond grade”reflective tape 1)
Target Reflector
Resolution 1 mm
Repeatability ≥ 2 mm 2) 3)
Measurement accuracy ± 7 mm
Response time 15 ms ... 30 ms, 15 ms / 30 ms 3) 4)
Output time ≥ 4 ms 5)
Light source Laser, red
visible red light

Type of light Visible red light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) 6)
Typ. light spot size (distance) 15 mm x 15 mm (10 m)
Additional function Set moving average: fast/slow
Switching mode: distance to object (DtO)
Teach-in,scaling and inversion of digital output
Set hysteresis
Teach-in,scaling and inversion of analog output
Multifunctional input: laser off/ external teach / deactivated
Switch-off display
Reset to factory default
Lock user interface

Average laser service life (at 25 °C) 100,000 h
Safety-related parameters
MTTFD
101 years
1) On“diamond grade”reflective tape.
2) Equivalent to 1 σ .
3) Dependent on the averaging setting: fast/slow.
4) Lateral entry of the object into the measuring range.
5) Continuous change of distance in measuring range.
6) Wavelength: 658 nm; max. output: 120 mW; pulse duration: 2.5 ns; duty cycle: 1/400.
2 LASER DISTANCE SENSORS | SICK Product data sheet | 2024-12-05 16:29:46
  Subject to change without notice
  DL50-P1123 | Dx50
  MID RANGE DISTANCE SENSORS
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 0DCavg 0% SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 1
1) On“diamond grade”reflective tape.
2) Equivalent to 1 σ .
3) Dependent on the averaging setting: fast/slow.
4) Lateral entry of the object into the measuring range.
5) Continuous change of distance in measuring range.
6) Wavelength: 658 nm; max. output: 120 mW; pulse duration: 2.5 ns; duty cycle: 1/400.
Interfaces
Digital output
Number

Type
Maximum output current IA

1 1) 2)

PNP

≤ 100 mA

Analog output
Number

Type
Current

Resolution

1

Current output
4 mA ... 20 mA, ≤ 300 Ω
16 bit

Multifunctional input (MF) 1 x 3) 4)
Hysteresis 10 mm ... 1,000 mm
1) Output Q short-circuit protected.
2) PNP: HIGH = VS - (< 2.5 V) / LOW = 0 V.
3) Response time ≤ 15ms.
4) PNP: HIGH = VS/ LOW = ≤ 2.5 V.
Electronics
Supply voltage UB DC 10 V ... 30 V 1)
Power consumption ≤ 2.1 W 2)
Ripple ≤ 5 Vpp 3)
Initialization time ≤ 250 ms
Warm-up time ≤ 15 min
Indication LC display, 2 x LED
Enclosure rating IP65
Protection class III
1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
2) Without load.
3) May not fall short of or exceed VS tolerances.
Mechanics
Dimensions (W x H x D) 36.1 mm x 62.7 mm x 57.7 mm
Housing material Metal (zinc diecast)
Window material Plastic (PMMA)
Weight 200 g
Connection type Male connector, M12, 5-pin
2024-12-05 16:29:46 | Product data sheet LASER DISTANCE SENSORS | SICK 3
Subject to change without notice
DL50-P1123 | Dx50
MID RANGE DISTANCE SENSORS
Ambient data
Ambient temperature, operation –30 °C ... +65 °C
–30 °C ... +80 °C, operation with 2 cooling plates
–30 °C ... +140 °C, operation with 2 cooling plates and protection filter

Ambient temperature, storage –40 °C ... +75 °C
Max. rel. humidity (not condensing) ≤ 95 %
Typ. Ambient light immunity 40,000 lx
Vibration resistance EN 60068-2-6, EN 60068-2-64
Shock resistance EN 60068-2-27
Classifications
ECLASS 5.0 27270801
ECLASS 5.1.4 27270801
ECLASS 6.0 27270801
ECLASS 6.2 27270801
ECLASS 7.0 27270801
ECLASS 8.0 27270801
ECLASS 8.1 27270801
ECLASS 9.0 27270801
ECLASS 10.0 27270801
ECLASS 11.0 27270801
ECLASS 12.0 27270916
ETIM 5.0 EC001825
ETIM 6.0 EC001825
ETIM 7.0 EC001825
ETIM 8.0 EC001825
UNSPSC 16.0901 41111613
4 LASER DISTANCE SENSORS | SICK Product data sheet | 2024-12-05 16:29:46
  Subject to change without notice
  DL50-P1123 | Dx50
  MID RANGE DISTANCE SENSORS
Dimensional drawing (Dimensions in mm (inch))
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 2 36.1 (1.42) SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 3 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 4 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 54.0   SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 647.4 (1.88) SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 7 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 8③ ④   ⑤⑥
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 9 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 10 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 11 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 12 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 13 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 14 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 15(0.16)   SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 16
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 17

SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 18 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 19 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 20
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 21 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 22
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 23
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 24 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 25 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 26 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 27 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 28 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 29 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 30 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 31
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 32 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 33 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 34
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 35 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 36 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 37   SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 38 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 39
    SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 40 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 41 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 42 39.2 (1.54)
    SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 43 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 44 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 45
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 46 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 47 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 48 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 49 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 50
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 51 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 52
① Optical axis, sender
② Optical axis, receiver
③ Fixing hole
④ Reference surface = 0 mm
⑤ Status indicator digital output Q1 (orange)
⑥ DT50/DT50 Hi/DL50: Status display for supply voltage active (green), DS50/DL50 Hi: Status display of digital output Q2 (orange)
⑦ Control elements and display
Connection type
Male connector M12, 5-pin
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 53
Connection diagram
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 54brn   SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 551 L+
wht   SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 562 QA
blu
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 573 M
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 58 blk   SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 594 Q
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 60gra
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 615 MF ①

① Multifunctional input (MF)
2024-12-05 16:29:46 | Product data sheet LASER DISTANCE SENSORS | SICK 5
Subject to change without notice
DL50-P1123 | Dx50
MID RANGE DISTANCE SENSORS
Recommended accessories
Other models and accessories → www.sick.com/Dx50
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 62Brief description Type Part no.
  Reflectors
  SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 63 SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 64Reflector plate,“diamond grade”reflective tape, 330 mm x 330 mm, base plate materi-
al: aluminum, screw connection, Screw-on, 4 hole mounting
PL240DG 1017910
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 65 Terminal and alignment brackets
  Alignment unit, steel, zinc coated, mounting hardware for the sensor included BEF-AH-DX50 2048397
  Others
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 66 • Connection type head A: Female connector, M12, 5-pin, angled, A-coded
• Connection type head B: Flying leads
• Signal type: Sensor/actuator cable
• Cable: 2 m, 5-wire, PVC
• Description: Sensor/actuator cable, unshielded
• Application: Zones with chemicals
YG2A15-
020VB5XLEAX
2096215
SICK DL50-P1123 | Dx50MID RANGE DISTANCE SENSORS | part no : 1047361 67 • Connection type head A: Female connector, M12, 5-pin, straight, A-coded
• Connection type head B: Flying leads
• Signal type: Sensor/actuator cable
• Cable: 2 m, 5-wire, PVC
• Description: Sensor/actuator cable, unshielded
• Application: Zones with chemicals
YF2A15-
020VB5XLEAX
2096239
