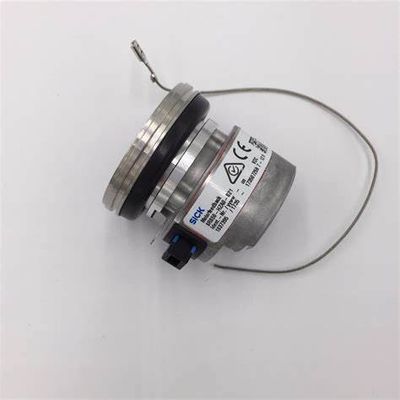

SRS50-HZA0-S21 SICK Motor Feedback Systems SRS/SRM50

SRS50-HZA0-S21 SICK Motor Feedback Systems SRS/SRM50

MOQ: 1set
Price: $10-$1000
Standard Packaging: 100% original carton package
Delivery Period: 5-10 workday
Payment Method: TNT DHL FEDEX EMS UPS
Supply Capacity: 100set/month
Detail Information
Place of Origin
Germany
Brand Name
SICK
Certification
CE.UKCA,ATEX,UL,etc
Model Number
SRS50-HZA0-S21
Application:
Industrial Control
Product Type:
Sensor
Package:
Original Paper Box
Product Name:
SICK Motor Feedback Systems
Payment:
Paypal\TTWestern Unionlali Trade Assurance
Model:
SRS50-HZA0-S21
Condition:
100% Original
Warranty:
1 Year
Highlight:

SRS50-HZA0-S21 Motor feedback systems

,

SRM50 Motor feedback systems

,

SICK Motor feedback systems

Product Description

SRS50-HZA0-S21 SICK Motor feedback systems SRS/SRM50

Product Description:



SRS50-HZA0-S21 SICK Motor feedback systems SRS/SRM50



High-resolution motor feedback system

Used worldwide in a large variety of applications and environments - motor feedback systems of the SRS/SRM50 product family. With 1024 sine/cosine signals per revolution, this family represents the high-end solution of motor feedback systems with HIPERFACE® interface. They use a precise metal code disk and the largest possible distance between the two ball bearings. Absolute location indication with an increment number of 32,768 increments per revolution and a maximum of 4,096 revolutions. Storage of motor-specific data in the electronic type label and the programming are important features of this product family. The motor feedback systems certified to SIL2/PL d meet current requirements with regard to safety technology and make the certification process easier.







Features:





Benefits
  • Motor feedback system with HIPERFACE® interface
  • High shock/vibration resistance thanks to built-in metal code disk
  • Consistent motor design due to identical size of single and multiturn design
  • To use of a motor feedback system certified to SIL2/PL d makes it easier to have your system certified.
  • Very smooth running thanks to maximum ball bearing distance



Features
  • Motor feedback systems for the top performance range
  • 1,024 sine/ cosine periods per revolution
  • Absolute position with a resolution of 32,768 increments per revolution and 4,096 revolutions with the multiturn system
  • HIPERFACE® interface: Programming of the position value and electronic type label
  • Insert shaft or tapered shaft with various torque supports
  • Integrated version, mounted version or stand-alone design
  • Certified according to SIL2/PL d (only valid for SRS50S/SRM50S...)
  • Conforms to RoHs



Specialty

Customized hollow shaft (see dimensional drawing)

Fixing screw M5 x 45 (Torx), screwed into EFx50 on delivery

Programming of the position value (zero point marking: resolver support)

Standard reference device SRS50-HAA0-K22, 1037060



Connection type Male connector, 8-pin, radial
Supply voltage 7 V ... 12 V
Recommended supply voltage 8 V DC
Current consumption 80 mA 1)
Output frequency for sine/cosine signals ≤ 200 kHz



Related Products:





RZT7-03ZUS-KW0 IME12-08NPSZW2S WSE2S-2N1130
IME08-02BNSZT0S GTE6-N1231 DBS36E-S3EK02000
YF2A15-020UB5XLEAX IME12-04BNSZW2K WTB9-3P1161
GRTE18S-P1317 C4P-SA12030A00 I10-M0233
RZT7-03ZRS-KW0 YG8U13-020UA1XLEAX IM12-08NPS-ZC1
BEF-AP-W16 YM2A28-050UA6XLEAX BEF-WN-W18
VTF180-2P41117 GTB6-P4231 GTB2S-N1311
IE15-R2 WT100-P3410 DBS36E-S3EK02500
WT100-P3419 VTE18-3P8240 C20E-090303D51
WTB27-3P2413S09 DOS-1205-G C4M-SE0211A1AA0
WTB16P-24161120A00 GSE6-N1111 ADAPTER M40
WLL180T-P434 WT150-P460 WS/WE100-2P4439
GTE6-P1231 VTF18-3E1212 MZT8-03VPS-KP0
TIM561-2050101S80 KTS-WB41141142ZZZZ YG2A14-050VB3XLEAX
BEF-AH-DX100 IME08-02BPOZT0K STE-0804-G
DOL-127SG2M5E25KM0 YF8U13-020VA1XLEAX IME08-1B5PSZT0S
DOS-1205-GQ WTV4-3N1341 DOS-2312-G
DOL-0804-W02MNI front screen replacement kit GSE2F-E1151
