MOQ: | 1set |
Price: | $10-$1000 |
Standard Packaging: | 100% original carton package |
Delivery Period: | 5-10 workday |
Payment Method: | TNT DHL FEDEX EMS UPS |
Supply Capacity: | 100set/month |

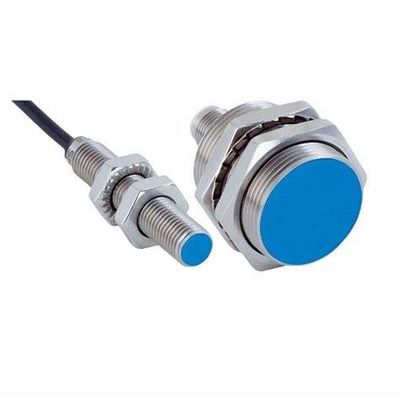

IMB08-04NPOVU2S SICK Inductive proximity sensors IMB
The inductive IMB proximity sensor is a byword for reliability in harsh working conditions, whether it is in contact with cooling lubricants or being used outdoors. With its extended sensing ranges, made highly precise thanks to the use of SICK ASIC technology, the IMB ensures reliable, stable processes. What's more, its wide-ranging specification limits allow the IMB to be used in applications where specialist devices were once the only solution – a huge benefit when it comes to product selection and warehousing. The optical adjustment indicator and self-locking nuts save time during commissioning and help cut down on errors. Communication via IO-Link is also possible, creating more flexibility and adding more functions for automation applications. With an extensive standard product portfolio available, even special devices can be put into action quickly and easily.
Housing | Metric |
Housing | Standard design |
Thread size | M8 x 1 |
Diameter | Ø 8 mm |
Sensing range Sn | 4 mm |
Safe sensing range Sa | 3.24 mm |
Installation type | Non-flush |
Switching frequency | 4,000 Hz |
Connection type | Cable, 3-wire, 2 m |
Switching output | PNP |
Output function | NC |
Electrical wiring | DC 3-wire |
Enclosure rating |
IP68 1) IP69K 2) |
Special features | Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance |
Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Supply voltage | 10 V DC ... 30 V DC |
Ripple | ≤ 10 % |
Voltage drop | ≤ 2 V 1) |
Hysteresis | 3 % ... 20 % |
Reproducibility | ≤ 2 % 2) 3) |
Temperature drift (of Sr) | ± 10 % |
EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 200 mA |
No load current | ≤ 10 mA |
Cable material | PUR |
Conductor size | 0.14 mm² |
Cable diameter | Ø 3 mm |
Shock and vibration resistance | 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 15 g |
Ambient operating temperature | –40 °C ... +100 °C |
Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
Sensing face material | Plastic, LCP |
Housing length | 45 mm |
Thread length | 37 mm |
Tightening torque, max. |
Typ. 7 Nm 4) Typ. 14 Nm 5) |
Protection class | III |
UL File No. | E181493 |
WT27L-2F430 | STE-1205-GQ | WTV4FE-8416A120A00 |
KTM-MB31191P | BEF-KHS-KH3 | GTB2S-N1451 |
YF2A15-100VB5XLEAX | MPS-032TSTP0 | LL3-DT01 |
IME12-04BPSZT0K | WTB26P-24161120A00 | SKS36-HFA0-K02 |
RZT7-03ZUS-KWB | GTB6-N1212 | IE12-S1 |
IME08-02BPSZW2K | IM12-10NPS-ZC1 | GSE6-P1212 |
IME12-04NNSZW2S | DFS60B-S4AB02500 | WL11G-2B2531 |
KTM-MB31194P | WE100-P1432 | RE11-SA03 |
YG2A15-050VB5XLEAX | RZT7-03ZUS-KW0 | IME12-08NPSZW2S |
I10-E0233 | IME08-02BNSZT0S | GTE6-N1231 |
YG8U14-050VA3XLEAX | YF2A15-020UB5XLEAX | IME12-04BNSZW2K |
1. who are we?
We are based in Fijian, China, start from 2017,sell to Mid East(50.00%),Western Europe(25.00%),Southeast Asia(20.00%),Domestic Market(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PLC,SENSOR,HMI,TRANSMITTERS
4. why should you buy from us not from other suppliers?
Zhicheng insists on striving for excellence business philosophy. whether its industrial automation spare parts or delivery efficiency,We are committed to doing better.
