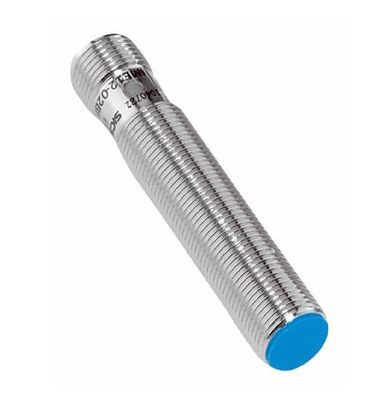

IME12-04BPOZC0S SICK Inductive proximity sensors IME

IME12-04BPOZC0S SICK Inductive proximity sensors IME

MOQ: 1set
Price: $10-$1000
Standard Packaging: 100% original carton package
Delivery Period: 5-10 workday
Payment Method: TNT DHL FEDEX EMS UPS
Supply Capacity: 100set/month
Detail Information
Place of Origin
Germany
Brand Name
SICK
Certification
CE.UKCA,ATEX,UL,etc
Model Number
IME12-04BPOZC0S
Application:
Industrial Control
Product Type:
Sensor
Package:
Original Paper Box
Product Name:
SICK Inductive Proximity Sensors
Payment:
Paypal\TTWestern Unionlali Trade Assurance
Model:
IME12-04BPOZC0S
Condition:
100% Original
Warranty:
1 Year
Highlight:

IME12-04BPOZC0S Inductive proximity sensors

,

SICK Inductive proximity sensors

,

SICK IME12-04BPOZC0S

Product Description

IME12-04BPOZC0S SICK Inductive proximity sensors IME

Product Description:



IME12-04BPOZC0S SICK Inductive proximity sensors IME



The economic standard for use in industrial environments

SICK’s inductive sensors offer precise detection, less downtime and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.







Features:





Benefits
  • High machine availability thanks to rugged design
  • Highly cost-efficient thanks to low purchase costs
  • Wide selection available thanks to extensive standard portfolio
  • High positioning accuracy thanks to precise switching behavior
Features
  • Types: M8 to M30
  • Extended sensing ranges: 1.5 mm to 38 mm
  • Electrical configuration: DC 3-/4-wire, DC 2-wire
  • Enclosure rating: IP67
  • Temperature range: –25 °C to +75 °C
  • Nickel-plated brass housing; plastic sensing face



Housing Metric
Housing Standard design
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NC
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Items supplied Mounting nut, brass, nickel-plated (2x)





Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2 V 1)
Time delay before availability ≤ 100 ms
Hysteresis 5 % ... 15 %
Reproducibility ≤ 2 % 2) 3)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
No load current ≤ 10 mA
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Brass, nickel-plated
Sensing face material Plastic, PA 66
Housing length 65 mm
Thread length 48 mm
Tightening torque, max. ≤ 12 Nm
UL File No. NRKH.E181493

Related Products:





IME18-05BPSZC0K WTB11-2P2431 IME08-02BNSZW2S IME12-08NNSZW2S
WTT280L-2P2536 IH04-0B8NS-VW1 mounting set for photoelectric switch MZC1-2V2PS-KUB
GTB6-P1231 IM18-08NPO-ZC1 WTB8L-P2211 P25
IME18-12NPSZC0S TBS-1DSGT1006NE UM30-214113 DOL-1205-G02MC
IME08-02BNOZW2S STE-1205-G WT27L-2F430 STE-1205-GQ
GTE2F-N1111 RLY3-OSSD400 KTM-MB31191P BEF-KHS-KH3
C110A GTB6-P1212 YF2A15-100VB5XLEAX MPS-032TSTP0
IME12-04NNSZC0S WTB16I-39111120ZZZZ2ZZZZZZZZZ1 IME12-04BPSZT0K WTB26P-24161120A00
WLL180T-L432 WL12G-3B2531 RZT7-03ZUS-KWB GTB6-N1212
VL18-2T2162 PL80A IME08-02BPSZW2K IM12-10NPS-ZC1
DL100-21AA2101 WTB9-3N1161 IME12-04NNSZW2S DFS60B-S4AB02500
IME12-08NNSZW2K IM30-15NUS-ZUX KTM-MB31194P WE100-P1432



FAQ:



1. who are we?
We are based in Fijian, China, start from 2017,sell to Mid East(50.00%),Western Europe(25.00%),Southeast Asia(20.00%),Domestic Market(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PLC,SENSOR,HMI,TRANSMITTERS

4. why should you buy from us not from other suppliers?
Zhicheng insists on striving for excellence business philosophy. whether its industrial automation spare parts or delivery efficiency,We are committed to doing better.
