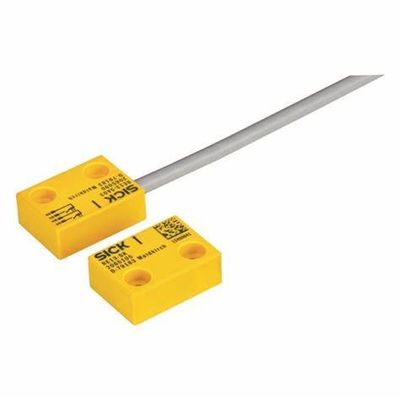

RE13-SA03 SICK Safety switches RE1

RE13-SA03 SICK Safety switches RE1

MOQ: 1set
Price: $10-$1000
Standard Packaging: 100% original carton package
Delivery Period: 5-10 workday
Payment Method: TNT DHL FEDEX EMS UPS
Supply Capacity: 100set/month
Detail Information
Place of Origin
Germany
Brand Name
SICK
Certification
CE.UKCA,ATEX,UL,etc
Model Number
RE13-SA03
Application:
Industrial Control
Product Type:
Sensor
Package:
Original Paper Box
Product Name:
SICK Safety Switches
Payment:
Paypal\TTWestern Unionlali Trade Assurance
Model:
RE13-SA03
Condition:
100% Original
Warranty:
1 Year
Highlight:

SICK Safety switches RE13-SA03

,

RE13-SA03 Safety switches

Product Description

RE13-SA03 SICK Safety switches RE1

Product Description:



RE13-SA03 SICK Safety switches RE1

Small magnetic safety switch for non-contact door monitoring

RE1 magnetic safety switches are equipped with either complementary NC/NO contacts or equivalent N/O contacts which are addressed directly with coded magnetic actuators. Magnetic safety switches are used in areas where a high level of contamination occurs. They are simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances, making them ideal for applications where precise guidance of the protective device is difficult.





Features:



Benefits
  • Long service life due to durable and low-maintenance design
  • Space-saving mounting due to compact housing design
  • Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849)
  • High level of machine availability due to high tolerances for door misalignment
  • The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards
  • Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort.
Features
  • Response range up to 7 mm
  • 2 or 3 contacts
  • Up to performance level PL e (EN ISO 13849)
  • Sensors with plug connector or connected cable
  • Flexi Loop-compatible M12 plug connector (depending on variant)



System part Sensor with actuator
Sensor principle Magnetic
Number of N/O contacts 2
Number of N/C contacts 0
Number of signaling contacts 0
Safe switch on distance Sao 7 mm
Safe switch off distance Sar 20 mm
Active sensor surfaces 1
Actuation directions 3





Connection type Cable
Length of cable 3 m
Cable diameter 5.8 mm
Conductor cross section 0.25 mm²
Bend radius (with fixed installation) > 12 x cable diameter
Bend radius (with moving cable) > 15 x cable diameter
Cable material PVC
Conductor material Copper

Related Products:



CQ4-08ENSKU1 WL100-2N1429 UM30-213118
VL180-2P42431 WTB4-3N1361 YF2A28-050UA6XLEAX
IME18-12NPSZW2S KTM-MB8A191P WLL260-R240
WL2SG-2E1135 P250F WL280-2H4331
IME12-08NNSZW2K IQ40-20BPPKK0S C4C-SA06030A1000E
VTE180-2P42482 IM18-05BPS-ZWB STE-1204-GZ
GSE6-N1112 KTM-WP11182P GRTE18S-P1347
WT100-2N3419 DOL-1204-L02MRN IMB08-02BNSVU2S
BEF-1SHABPKU4 WTE280-2R4331 VS18-0D3112
GTB6-P4212 GTE10-P4212 PRUEFSTAB D=14
SFM60-HPZT4S01 WL4S-3F3130 DOL-1205-G05MC
WT100-2P3439 PL40A S300 MOUNTING KIT 1B
RZT7-03ZUS-KU0 BEF-WN-DX50 OD5-85T20
WTB27-3P2461 DT50-2B215252 IM04-0B6PO-ZU1
IME30-15BPSZC0S WL100-P4430 REF-DG-K 200MMX200MM
WTB9-3N1161P02 WTB250-2R1541 WI180C-EC
DOS-0804-W WTB4FP-21311120ZZZ WLG12-V537
TR4-RDU000 DFS60E-S1AA01024 WT24-2R210
YF2A15-020VB5XLEAX ATM60-A4K12X12 S32B-3011BA
