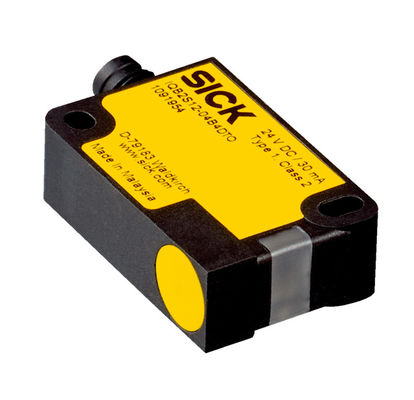

IQB2S12-04B4DT0 SICK Safety switches IQB2S

MOQ:	1set
Price:	$10-$1000
Standard Packaging:	100% original carton package
Delivery Period:	5-10 workday
Payment Method:	TNT DHL FEDEX EMS UPS
Supply Capacity:	100set/month

Details Information

Product Description

Detail Information

Place of Origin

Germany

Brand Name

Certification

CE.UKCA,ATEX,UL,etc

Model Number

IQB2S12-04B4DT0

Application:

Industrial Control

Product Type:

Sensor

Package:

Original Paper Box

Product Name:

SICK Safety Switches

Payment:

Paypal\TTWestern Unionlali Trade Assurance

Model:

IQB2S12-04B4DT0

Condition:

100% Original

Warranty:

1 Year

Product Description

IQB2S12-04B4DT0 SICK Safety switches IQB2S

Product Description:

IQB2S12-04B4DT0 SICK Safety switches IQB2S

Small, cuboid inductive safety switch for position monitoring

The inductive safety switches of the IQB2S product family are used for safe position and area monitoring. Thanks to the very compact design and wide range of connection variants, they offer optimum integration into the machine design. The IQB2S switches work without making contact and are low-wear. The inductive safety switches do not require a separate actuator to do their monitoring tasks. On the contrary, they are generally activated by metals, for example on machines. The IQB2S can be connected to a safe control solution via its self-monitoring switching outputs (OSSDs), allowing for high safety with PL d (EN ISO 13849).

Features:

Benefits

Compact design for easy and ergonomic integration into the machine design without separate actuator
High machine availability thanks to low susceptibility to dirt and moisture
Long product service life due to low-wear and low-maintenance workings
Fast diagnostics via 270° LED output state display
High reliability and precise switching behavior due to proven ASIC technology
Safe, direct connection to a safe control solution by means of OSSDs
Easy and flexible connection options thanks to variants with male connector, cable or cable with male connector

Features

Rectangular type: 12 mm x 26 mm x 40 mm
Response range: 4 mm
Two OSSD safety outputs
Enclosure rating: IP67
Temperature range: –25 °C bis +70 °C
Rugged VISTAL® housing
Up to performance level PL d (EN ISO 13849)
Connection variants: M8 male connector, cable or cable with M12 male connector

Protection class	III (IEC 61140)
Rated insulation voltage Ui	28.8 V
Rated impulse withstand voltage Uimp	1,500 V
Supply voltage Vs	24 V DC (19.2 V DC ... 28.8 V DC)
Power consumption	≤ 20 mA
Type of output	Self-monitoring semiconductor outputs (OSSDs)
Response time	≤ 1 ms
Release time	≤ 2 ms
Risk time	≤ 20 ms
Switch-on time	≤ 1 s

Related Products:

IQ40-20NPP-KK0	IMB08-04NPOVU2S	IE12-F1
BEF-W100-A	WL100-2P3439	YF2A14-020UB3XLEAX
WT24-2B410	SRS50-HZA0-S21	GL10-R3811
IME08-04NPSZT0K	IME12-04BPSZC0S	IME12-04BNSZC0K
SEK37-HFB0-K02	GL10-P4551	WL100-2P4439
CM12-08EBP-KC1	C40E-0302CB010	WT24-2B210
VTE180-2P42442	AD-ATM60-KA3PR	ATM60-P4H13X13
BEF-WN-W9-2	IME12-04BNSZW2S	KUP-1010-B
VTF18-4N1640	GL6-N4112	IE10-S2
IQ08-02BNSKW2S	KT6W-2N5116	WLA26P-24162100A00
YF2A68-100XXXXLEAX	LL3-DB02	RLY3-OSSD200

FAQ:

1. who are we?
We are based in Fijian, China, start from 2017,sell to Mid East(50.00%),Western Europe(25.00%),Southeast Asia(20.00%),Domestic Market(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PLC,SENSOR,HMI,TRANSMITTERS

4. why should you buy from us not from other suppliers?
Zhicheng insists on striving for excellence business philosophy. whether its industrial automation spare parts or delivery efficiency,We are committed to doing better.
