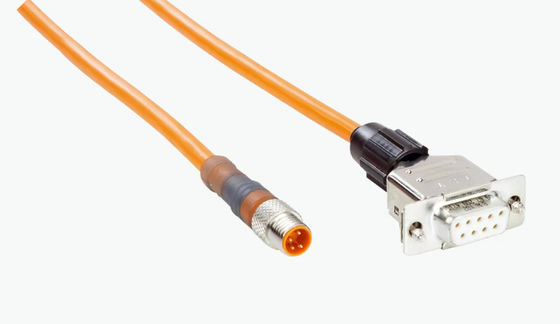

PVC Jacket DSL-8D04G02M025KM1 with 0.25 mm2 Conductor Cross Section

PVC Jacket DSL-8D04G02M025KM1 with 0.25 mm2 Conductor Cross Section

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Plug Connectors And Cables 2 m, PVC 6021195
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Sick
Certification
CE
Model Number
DSL-8D04G02M025KM1
Part No:
6021195
Cable:
2 M, PVC
Jacket Material:
PVC
Jacket Color:
Orange
Cable Diameter:
5 Mm
Current Loading:
4 A
Shielding:
Unshielded
Conductor Cross Section:
0.25 Mm²
Highlight:

PVC Jacket DSL-8D04G02M025KM1

,

DSL-8D04G02M025KM1

Product Description

SICK DSL-8D04G02M025KM1 Plug Connectors And Cables 6021195



Technical specifications

Accessory group Plug connectors and cables
Accessory family Connection cables
Connection type head A Female connector, D-Sub, 9-pin, straight
Connection type head B Male connector, M8, 4-pin, straight
Connector material TPU
Connector color Black
Locking nut material CuZn, nickel-plated brass
Cable 2 m, PVC
Jacket material PVC
Jacket color Orange
Cable diameter 5 mm
Conductor cross section 0.25 mm²
Shielding Unshielded
Reference voltage
  ≤ 35 V
Current loading 4 A
Authorizations UL
Enclosure rating IP67 (EN 60529)
Description For connecting the configuration connection to the serial interface of the PC
Ambient operating temperature
Stationary position –40 °C ... +90 °C



PVC Jacket DSL-8D04G02M025KM1 with 0.25 mm2 Conductor Cross Section 0
