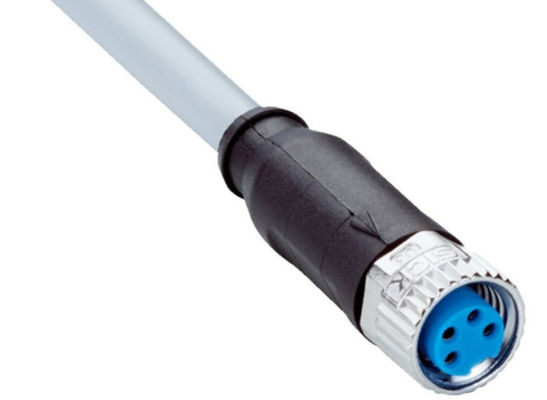

SICK YF8U14-020VA3XLEAX Plug Connectors And Cables 2095888

SICK YF8U14-020VA3XLEAX Plug Connectors And Cables 2095888

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Plug Connectors And Cables M8, 4-Pin, Straight 2095888
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Sick
Certification
CE
Model Number
YF8U14-020VA3XLEAX
Part No:
2095888
Seal Material:
FKM
Tightening Torque:
0.4 Nm
Width Across Flats:
9
Current Loading:
4 A
Rated Impulse Voltage:
1.5 KV
Insulation Resistance:
100 MΩ
Contamination Rating:
3
Highlight:

SICK YF8U14-020VA3XLEAX Plug Connectors

,

SICK YF8U14-020VA3XLEAX Cables

,

2095888 SICK YF8U14-020VA3XLEAX

Product Description

SICK YF8U14-020VA3XLEAX Plug Connectors And Cables 2095888

Technical specifications

Accessory group Plug connectors and cables
Accessory family Connecting cables
Connection type head A Female connector, M8, 4-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.4 Nm
Width across flats 9
Cable 2 m, 4-wire, PVC
Jacket material PVC
Jacket color Gray
Cable diameter 4.8 mm
Conductor cross section 0.25 mm²
Shielding Unshielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Nominal voltage, cable 300 V AC
Test voltage, cable 2,000 V AC
Reference voltage
  50 V AC
  60 V DC
Rated impulse voltage 1.5 kV
Current loading 4 A
Signal type Sensor/actuator cable
Application Zones with chemicals
Authorizations UL
UL File No. E335179
Enclosure rating IP65 / IP66K / IP67
Ambient operating temperature
Flexible use –5 °C ... +80 °C
Stationary position –30 °C ... +80 °C
Head –25 °C ... +85 °C
Contamination rating 3
Insulation resistance 100 MΩ
Overvoltage category III
Specific insulation resistance 30 mΩ
Thermal resistance, piping Flame retardant according to UL 1581 VW1 / CSA FT1


SICK YF8U14-020VA3XLEAX Plug Connectors And Cables 2095888 0
