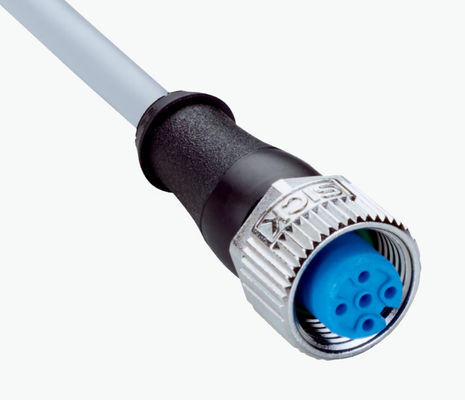

SICK YF2A14-020VB3XLEAX Cordset, Connecting Cables 2096234
  • Name
  • Name

SICK YF2A14-020VB3XLEAX Cordset, Connecting Cables 2096234

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Plug Connectors And Cables M12, 4-Pin 2096234
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Sick
Certification
CE
Model Number
YF2A14-020VB3XLEAX
Part No:
2096234
Connector Material:
TPU
Connector Color:
Black
Tightening Torque:
0.6 Nm
Cable:
2 M, 4-wire, PVC
Cable Diameter:
5 Mm
Conductor Cross Section:
0.34 Mm²
Shielding:
Unshielded
Product Description

SICK YF2A14-020VB3XLEAX Cordset, Connecting Cables 2096234

Technical specifications

Accessory groupPlug connectors and cables
Accessory familyConnecting cables
Connection type head AFemale connector, M12, 4-pin, straight, A-coded
Connection type head BFlying leads
Locking plug connectorScrew connection
Connector materialTPU
Connector colorBlack
Locking nut materialZinc die-cast, nickel-plated
Seal materialFKM
Tightening torque0.6 Nm
Width across flats13
Cable2 m, 4-wire, PVC
Jacket materialPVC
Jacket colorGray
Cable diameter5 mm
Conductor cross section0.34 mm²
ShieldingUnshielded
Bending radius
Flexible use> 10 x cable diameter
Stationary position> 5 x cable diameter
Nominal voltage, cable300 V AC
Test voltage, cable2,000 V AC
Reference voltage
　250 V AC
　250 V DC
Rated impulse voltage2.5 kV
Current loading4 A
Signal typeSensor/actuator cable
ApplicationZones with chemicals
AuthorizationsCE
UL
UL File No.E335179
Enclosure ratingIP65 / IP66K / IP67
Ambient operating temperature
Flexible use–5 °C ... +80 °C
Stationary position–30 °C ... +80 °C
Head–25 °C ... +85 °C
Contamination rating3
Insulation resistance100 MΩ
Overvoltage categoryIII
Specific insulation resistance30 mΩ
Thermal resistance, pipingFlame retardant according to UL 1581 VW1 / CSA FT1


SICK YF2A14-020VB3XLEAX Cordset, Connecting Cables 2096234 0
