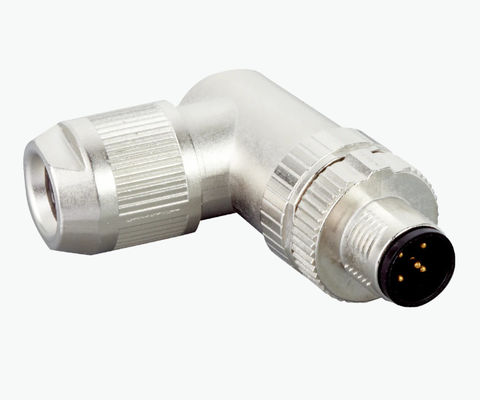

SICK STE-1204-WZ Plug Connectors And Cables Part No 6048262

SICK STE-1204-WZ Plug Connectors And Cables Part No 6048262

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Sick Ste-1204-Wz Plug Connectors And Cables Male Connector, M12, 4-Pin, Angled
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Sick
Certification
CE
Model Number
STE-1204-WZ
Part No:
6048262
Connection Type:
IDC Quick Connection
Cable:
CAT5, CAT5e
Shielding:
Shielded
Permitted Cross-section:
0.14 Mm² ... 0.34 Mm²
Reference Voltage:
≤ 60 V
Current Loading:
≤ 1.75 A
Locking Nut Material:
Die-cast Zinc
Product Description

SICK STE-1204-WZ Plug Connectors And Cables Part No 6048262



Technical specifications

Accessory group Plug connectors and cables
Accessory family Field-attachable connectors
Connection type head A Male connector, M12, 4-pin, angled, D-coded
Connection type IDC quick connection
Locking plug connector Quick screw connection
Locking nut material Die-cast zinc
Cable CAT5, CAT5e
Shielding Shielded
Permitted cable diameter 4 mm ... 8 mm
Permitted cross-section 0.14 mm² ... 0.34 mm²
Reference voltage ≤ 60 V
Current loading ≤ 1.75 A
Signal type PROFINET
Enclosure rating IP67
Description Head A: male connector, M12, 4-pin, angled, D coded, shielded, for cable diameter 4 mm ... 8 mm
Ambient operating temperature
Head –40 °C ... +85 °C
