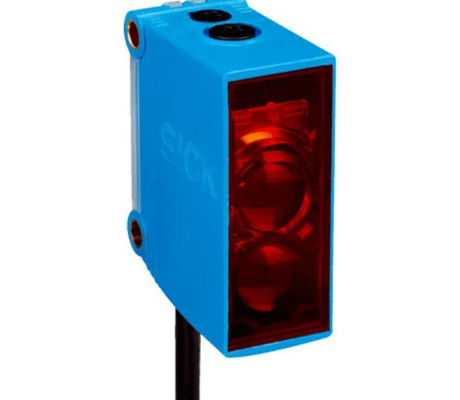

SICK GSE10-P4212 Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12

Products

Foxboro DCS System

Ms. Andy

cocohonghuxin@gmail.com

86-0592-5636807

+8618020763272

Contact Now

SICK GSE10-P4212 Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12

MOQ:	1
Price:	variable
Standard Packaging:	Carton
Delivery Period:	Negotiate
Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12 Conn Part No 1065903
Payment Method:	T/T
Supply Capacity:	30PCS/WEEKS

Details Information

Product Description

Detail Information

Place of Origin

Germany

Brand Name

Certification

Model Number

GSE10-P4212

Part No:

1065903

Sensing Range Max.:

0 M ... 40 M

Sensing Range:

0 M ... 35 M

Type Of Light:

Visible Red Light

Wave Length:

625 Nm

Adjustment:

Potentiometer, 270°

Power Consumption, Sender:

≤ 15 MA

Power Consumption, Receiver:

≤ 20 MA

Product Description

SICK GSE10-P4212 Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12 Conn Part No 1065903

Features

Functional principle	Through-beam photoelectric sensor
Dimensions (W x H x D)	20 mm x 50 mm x 39 mm
Housing design (light emission)	Rectangular
Sensing range max.	0 m ... 40 m
Sensing range	0 m ... 35 m
Type of light	Visible red light
Light source	PinPoint LED ¹⁾
Light spot size (distance)	Ø 180 mm (15 m)
Wave length	625 nm
Adjustment	Potentiometer, 270°

Mechanics/electronics

Supply voltage	10 V DC ... 30 V DC ¹⁾
Ripple	< 5 V_pp ²⁾
Power consumption, sender	≤ 15 mA
Power consumption, receiver	≤ 20 mA
Switching output	PNP
Switching mode	Light/dark switching
Switching mode selector	Selectable via light/dark selector
Output current I_max.	≤ 100 mA
Response time	≤ 500 µs ³⁾
Switching frequency	1,000 Hz ⁴⁾
Connection type	Male connector M12, 4-pin
Circuit protection	A ⁵⁾
	B ⁶⁾
	C ⁷⁾
	D ⁸⁾
Protection class	III
Weight	70 g
Housing material	Plastic, ABS/PMMA
Enclosure rating	IP67
Items supplied	Mounting bracket BEF-G10DC01 (2x)
Electromagnetic compatibility (EMC)	EN 60947-5-2
Test input	Sender OFF at "Test" 0 V
Ambient operating temperature	–30 °C ... +60 °C
Ambient temperature, storage	–40 °C ... +70 °C
UL File No.	NRKH.E348498 & NRKH7.E348498
More standards	UL325 ⁹⁾

SICK GSE10-P4212 Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12 0
