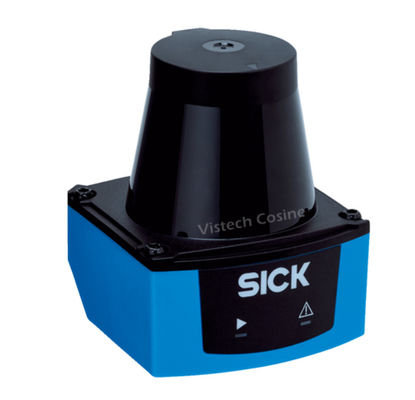

SICK TIM150-3010300 Laser Sensor, 2D LiDAR Sensor Part No 1093243
  • Name
  • Name

SICK TIM150-3010300 Laser Sensor, 2D LiDAR Sensor Part No 1093243

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Laser Sensor, 2d Lidar Sensor Part No 1093243
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
Sick
Certification
CE
Model Number
TIM150-3010300
Part No:
1093243
Application:
Indoor
Light Source:
Infrared (850 Nm)
Aperture Angle:
200°
Scanning Frequency:
14.5 Hz
Working Range:
0.05 M ... 10 M
Output Current:
≤ 100 MA
Power Consumption:
Typ. 2.7 W
Product Description

SICK TIM150-3010300 Laser Sensor, 2D LiDAR Sensor Part No 1093243



Features

Measurement principle HDDM+
Application Indoor
Light source Infrared (850 nm)
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle
Horizontal 200°
Scanning frequency 14.5 Hz
Angular resolution 1°
Working range 0.05 m ... 10 m
Scanning range
At 10% remission 2.8 m ... 3 m, depending on the angle



Mechanics/electronics

Connection type 1 x 5-pin M12 male device connector (rotatable)
Supply voltage 10 V DC ... 28 V DC 1)
Power consumption Typ. 2.7 W
Output current ≤ 100 mA
Housing color Light blue (RAL 5012)
Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Protection class III (IEC 61140:2016-1)
Weight 122 g, without connecting cables
Dimensions (L x W x H) 60 mm x 60 mm x 75.8 m
MTBF 82 years



Performance

Response time Typ. 70 ms
Detectable object shape Almost any
Systematic error ± 40 mm 1)
Statistical error 30 mm 1)
Integrated application Field evaluation
Number of field sets 1 field set
Simultaneous evaluation cases 1 (2 fields)



Interfaces

IO-Link ✔
Function Service interface, parameterization
Digital inputs 1
Digital outputs 2 (Push-pull)
Delay time 69 ms ... 30,015 ms (configurable)
Dwell time 69 ms ... 30,015 ms (configurable)
Optical indicators 2 LEDs (ON, switching status)



Ambient data

Object remission 4 % ... 1,000 % (reflectors)
Electromagnetic compatibility (EMC) IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005
Vibration resistance 　
Sine resonance scan 10 Hz ... 1,000 Hz 1)
Sine test 10 Hz ... 150 Hz, 1 g, 1 frequency cycles 1)
Noise test 10 Hz ... 200 Hz, 5 g RMS, 2 h 2)
Ambient operating temperature –10 °C ... +50 °C
Storage temperature –30 °C ... +70 °C
Permissible relative humidity ≤ 95 %, Non-condensing 3)
Ambient light immunity 30,000 lx



SICK TIM150-3010300 Laser Sensor, 2D LiDAR Sensor Part No 1093243 0
