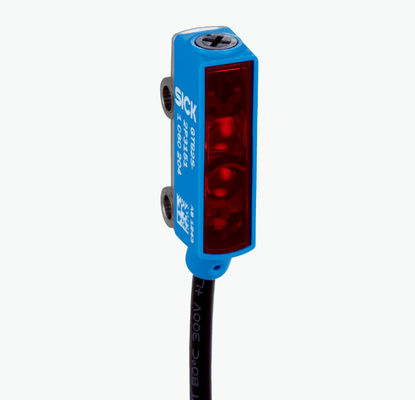

SICK GTB2S-F5451 Background Suppression Photoelectric Sensor, Block Sensor 1064341

SICK GTB2S-F5451 Background Suppression Photoelectric Sensor, Block Sensor 1064341

MOQ: 1
Price: variable
Standard Packaging: Carton
Delivery Period: Negotiate
Background Suppression Photoelectric Sensor, Block Sensor, 2 Mm-120 Mm
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Detail Information
Place of Origin
Germany
Brand Name
Sick
Certification
CE
Model Number
GTB2S-F5451
Part No:
1064341
Dimensions (W X H X D):
7.7 Mm X 27.5 Mm X 13.5 Mm
Light Spot Size (distance):
Ø 3.5 Mm (50 Mm)
Wave Length:
640 Nm
Adjustment:
Potentiometer, 3 Turns
Cable Diameter:
Ø 3 Mm
Ambient Operating Temperature:
–25 °C ... +50 °C
Ambient Temperature, Storage:
–40 °C ... +75 °C
Product Description

SICK GTB2S-F5451 Background Suppression Photoelectric Sensor, Block Sensor 1064341



Features

unctional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 7.7 mm x 27.5 mm x 13.5 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 120 mm 1)
Sensing range 25 mm ... 90 mm 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 3.5 mm (50 mm)
Wave length 640 nm
Adjustment Potentiometer, 3 turns



Mechanics/electronics

Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Current consumption 20 mA 3)
Switching output PNP
Switching mode Dark switching
Output current Imax. ≤ 50 mA
Response time < 0.6 ms 4)
Switching frequency 800 Hz 5)
Connection type Cable with connector M8, 3-pin, 200 mm 6)
Cable material PVC
Cable diameter Ø 3 mm
Circuit protection A 7)
C 8)
D 9)
Weight 17.9 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +50 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493



SICK GTB2S-F5451 Background Suppression Photoelectric Sensor, Block Sensor 1064341 0
