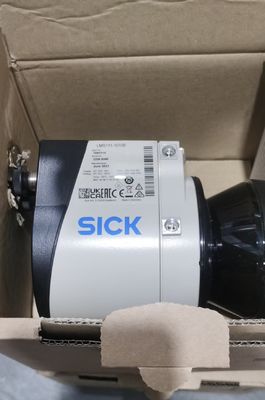

LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135
  • Name
  • Name

LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135

MOQ: 1
Price: variable
Standard Packaging: 160 mm x 155 mm x 185 mm
Delivery Period: 3-5DAYS
Payment Method: T/T
Supply Capacity: 30PCS/WEEKS
Details Information
Product Description
Detail Information
Place of Origin
germany
Brand Name
Sick
Certification
CE
Model Number
LMS511-10100
Part No:
1046135
Variant:
PRO
Application:
Outdoor
Resolution Power:
Standard Resolution
Light Source:
Infrared (905 Nm, ± 10 Nm)
Working Range:
0.2 M ... 80 M
Measurement Accuracy:
± 24 Mm
Weight:
3.7kg
Product Description

Described product:



LMS5xxdataSheet_LMS511-10100-PRO_1046135_en.pdf



Manufacturer SICK AG Erwin-Sick-Str. 1 79183 Waldkirch Germany Copyright This work is protected by copyright. Any rights derived from the copyright shall be reserved for SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal determination of Copyright Law. Any modification, expurgation or translation of this document is prohibited without the express written permission of SICK AG. © SICK AG. All rights reserved. Original document This document is an original document of SICK AG. The LMS5xx laser measurement sensors are certified according to UL 60950-1:2007. Only vaild when marked on the type plate.



These operating instructions apply to the following variants:
LMS5xx variant Resolution

LMS511-22100 Heavy Duty Outdoor High Resolution (HR)
LMS531-10100 PRO Security Outdoor Standard Resolution (SR)
LMS531-11100 Lite Security Outdoor Standard Resolution (SR)
LMS581-10100 PRO Outdoor Standard Resolution (SR)
LMS581-20100 PRO Outdoor High Resolution (HR)





LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135 0

Features
Variant PRO
Application Outdoor
Resolution power Standard Resolution
Light source Infrared (905 nm, ± 10 nm)
Laser class 1 (EN/IEC 60825-1:2014 (Ed.3), EN/IEC 60825-1:2007 (Ed.2) CAN/CSA-E60825-1:2015-11
(Ed.3))
Aperture angle
Horizontal 190°
Scanning frequency 25 Hz
35 Hz
50 Hz
75 Hz
100 Hz
Angular resolution 0.042°, interlaced
0.083°, interlaced
0.1667°
0.25°
0.333°
0.5°
0.667°
1°
Scan field flatness Scan field flatness combined: ± 0.72°
Typical conical error: 1 sigma value - 0.11° ± 0.1°
Typical tilt: 1 sigma value + 0.15° ± 0.08°
Heating Self-heating with additional integrated heating
Working range 0.2 m ... 80 m
Scanning range
At 10% remission 40 m
Measurement accuracy ± 24 mm
Spot size Divergence: 11.9 mrad
At the viewing window: 13.5 mm
Tags:

Sick Detection and Distance sensors sensors,

Sick LiDAR and radar sensors,

Sick Flow measurement
