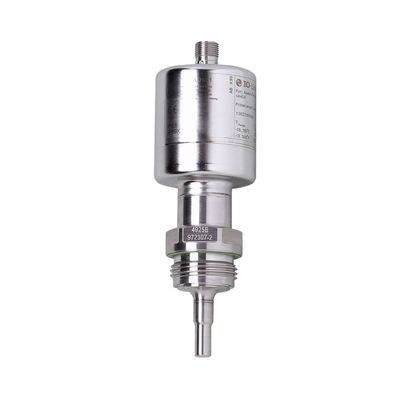

TAD981 Temperature Transmitter With Drift Detection Ifm Including Free 5-point Calibration Certificate

TAD981 Temperature Transmitter With Drift Detection Ifm Including Free 5-point Calibration Certificate

MOQ: 1
Price: 500$/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
TAD981
Measuring Range:
-25...160 °C -13...320 °F
Pressure Rating:
50 Bar 5 MPa
Probe Length L[mm]:
33
Protection:
IP 68; IP 69K
Highlight:

Drift Detection Temperature transmitter

,

5-point Calibration Temperature transmitter

,

TAD981 Temperature transmitter

Product Description
Application
Measuring element   1 x Pt 1000 + 1 x NTC; (thermically coupled, with backup
function (temperature measuring even if one element fails))

Media   liquids and gases
Pressure rating [bar]   50
Minimum installation depth [mm] 25
Electrical data
Operating voltage [V] 18...32 DC; ("supply class 2" tocULus)
Current consumption [mA] 6; (24 V)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 8
Integrated watchdog yes

Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TAD981-03 — 30.05.2017

TAD981
Temperature transmitter
TAD033KLES30-A-ZKG/US
Outputs
Total number of outputs 2
Output signal switching signal; analogue signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 1
Output function normally open / normally closed / diagnostic signal; (parameterisable)
Max. voltage drop switching
output DC
[V]   2
Permanent current rating of
switching output DC
[mA]   150; (200 (...60°C); 250 (...40 °C))
Diagnostic output   diagnostic output for drift and fault monitoring
Number of analogue outputs   1
Analogue current output [mA]   4...20
Max. load [Ω]   (Ub - 15 V) x 50
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection     yes
Measuring/setting range
Measuring range   -25...160 °C -13...320 °F
Note on measuring range   scalable
Factory setting   0...150 °C / 32...302 °F
Drift warning   0.2...5 °C 0.4...9 °F
Drift alarm   0.2...5 °C 0.4...9 °F
Insteps of   0.05 °C 0.1 °F
Resolution
Resolution of analogue [K]   0.05
output
Accuracy / deviations
Precision analogue output [K]   ± 0,2 (-10...130°C); ± 0,3 (130...140°C); ± 0,3 ± 0,1% MS (-25...-10/140...160°C);
(probe completely inserted into the measured medium up to the sealing chamfer)

Temperature coefficient
[% of the span / 10 K]
  < ± 0,01; (in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s] 3 / 6
Software / programming
Parameter setting options drift warning/drift alarm threshold; Fail-Safe; Display unit; scaling
of the analogue output; redundancy switching; performance
diagnostic output; switching logic; normally open / normally closed

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TAD981-03 — 30.05.2017

TAD981
Temperature transmitter
TAD033KLES30-A-ZKG/US
Interfaces
Communication interface IO-Link
Transmission type COM1 (4,8 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
IO-Link device ID 323 d / 00 01 43 h
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port type   A
Process data analogue   1
Process data binary   1
Min. process cycle time [ms]   18.8
Operating conditions
Ambient temperature [°C] -25...70
Storage temperature [°C] -40...85
Protection IP 68; IP 69K

Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 68000-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   213
Note on approval   Including free 5-point calibration certificate.
Mechanical data
Weight [g]   399
Materials   stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)   stainless steel (1.4404 / 316L)
Process connection   threaded connection G 1 external thread Aseptoflex Vario
Surface characteristics Ra/Rz
of the wetted parts
  Ra: < 0.6
Installation length EL [mm]   33
Remarks
Remarks   MS = set measuring span
Pack quantity   1 pcs.
Electrical connection
Connector: 1 x M12; Contacts: gold-plated
