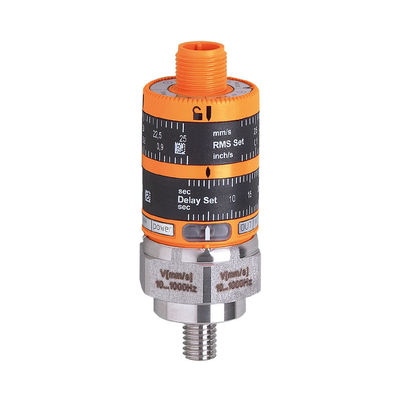

IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR

IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR

MOQ: 1
Price: $291/piece
Standard Packaging: 130*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
VKV021
Weight[g]:
113.5
Type Of Mounting:
M8 X 1,25
Product Description
Product characteristics
Vibration monitor
VKV
Connection via M12 connector
Vibration monitor to DIN ISO 10816
Measuring range RMS: 0...25 mm/s
Switching output NC DC PNP and analogue output 4...20 mA
Application
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 0 IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 1Application Vibration monitor Vrms to DIN ISO 10816
Electrical data
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 2Operating voltage [V] 18...32 DC
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 3Current consumption [mA] < 50
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 4 IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 5Protection class III
Inputs / outputs
Circuit 1 x normally closed DC PNP / 1 x analogue 4...20mA
Inputs / outputs total 2
Outputs
Digital
Output function 1 x normally closed DC PNP
Max. current load per output [mA]   500
Voltage drop [V]   < 2
Short-circuit protection   pulsed
Overload protection   yes
analogue
current output
[mA]   4...20
Max. load [Ω]   < 500
Measuring / setting range
Delay [s] 1...60
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 6Measuring range [mm/s] 0...25 RMS
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 7 IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 8Frequency range [Hz] 10...1000
Accuracy / deviations
Accuracy [% of the final value]
Switch point accuracy
  < ± 3
  < ±4

e koreoo
VKV021
VIBRATION MONITOR Diagnostic systems
Repeatability < 0.5 %
Linearity 0.25 %
Software / programming
Switch point setting Setting ring
Switching delay Setting ring
Environment
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 9Ambient temperature [°C] -25...80, for UL applications: max. 80 °C
Protection   IP 67
Tests / approvals
EMC
  EN 61000-4-2 ESD: 4 kV CD / 8 kV AD
  EN 61000-4-3 HF radiated: 10 V/m
  EN 61000-4-4 Burst: 2 kV
  EN 61000-4-6 HF conducted: 10 V
Shock resistance   400 g
MTTF [Years]   510
Mechanical data
Type of sensor Microelectromechanical system (MEMS)
Number of measurement axes   1
Housing materials     PBT (Pocan); PC (Makrolon); FPM (Viton); stainless steel 316L / 1.4404
Weight   [kg]   0.116
Displays / operating elements
Display
  Operation LED green
Switching status LED yellow
Electrical connection
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 10 IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 11Connection M12 connector
Wiring
IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 12 IFM Vibration monitor with intuitive switch point setting VKV021 VIBRATION MONITOR 131: L+
2: 4...20 mA
3: GND
4: digital output (normally
closed)
