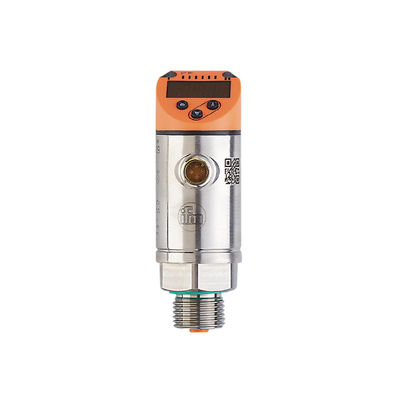

IFM Evaluation unit with display for PT100/PT1000 temperature sensors TR2439

IFM Evaluation unit with display for PT100/PT1000 temperature sensors TR2439

MOQ: 1
Price: $366/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
TR2439
Weight[g]:
200
Dimensions[mm]:
Ø 34 / L = 104
Product Description
Application
Application for Pt100 and Pt1000 measuring elements
Electrical data
Operating voltage [V]   18...32 DC; ("supply class 2" tocULus)
Current consumption [mA]   < 50
Protection class     III
Reverse polarity protection     yes
Power-on delay time [s]   1
Integrated watchdog     yes
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TR2439-00 — 20.10.2015

TR2439
Evaluation unit with display for PT100/PT1000
temperature sensors
TR-000KDBM12-MFPKG/US/
Outputs
Total number of outputs 2
Output signal switching signal; analogue signal; IO-Link; (configurable)
Electrical design   PNP/NPN
Number of digital outputs   1
Output function   normally open / normally closed; (parameterisable)
Max. voltage drop switching
output DC
[V]   2.5
Permanent current rating of
switching output DC
[mA]   250
Number of analogue outputs   1
Analogue current output [mA]   4...20
Max. load [Ω]   500
Analogue voltage output [V]   0...10
Min. load resistance [Ω]   2000
Short-circuit protection   yes
Type of short-circuit
protection
  pulsed
Overload protection   yes
Measuring/setting range
Measuring range   -100...600 °C -148...1112 °F
Factory setting   -40...300 °C / -40...572 °F
Set point SP   -99.8...600 °C -147.6...1112 °F
Reset point rP   -100...599.8 °C -148...1111.6 °F
Analogue start point   -100...595 °C -148...1103 °F
Analogue endpoint   -95...600 °C -139...1112 °F
Insteps of   0.1 °C 0.1 °F
Resolution
Resolution of switching
output
[K]   0.1
Resolution of analogue
output
[K]   current output: MS / 4096; voltage output: MS / 3561
Resolution of display [K]     0.1
Accuracy / deviations
Switch point accuracy [K]   ± 0,3 + (± 0,1 % MS)
Precision analogue output [K]   ± 0,3 + (± 0,1 % MS)
Display accuracy [K]     ± 0,3 + (± 0,1 % MS)
Temperature coefficient
[% of the span / 10 K]
  0,1; (in case of deviation from the reference condition 25 ± 5 °C)
Response times
Response time [ms]   390
Max. response time analogue
output
[ms]   390
Software / programming
Parameter setting options hysteresis / window; normally open / normally closed; switch-on/
switch-off delay; Damping; Display unit; current/voltage output
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TR2439-00 — 20.10.2015

TR2439
Evaluation unit with display for PT100/PT1000
temperature sensors
TR-000KDBM12-MFPKG/US/
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 KBaud)
IO-Link revision 1.1
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 67
Tests / approvals
EMC   DIN EN 61000-6-3
  DIN EN 61000-6-2
Shock resistance   DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   233
UL approval   UL Approval no. K011
Mechanical data
Weight [g]   199.2
Materials   stainless steel (1.4404 / 316L); stainless steel
(1.4301 / 304); PBT+PC-GF30; PBT-GF20; PC
Process connection   threaded connection G 1/2 external thread
Displays / operating elements
  Display unit 2 x LED, green
Display switching status LED, yellow
  measured values alphanumeric display, red/green 4-digit
Remarks
Remarks MS = set measuring span
Pack quantity   1 pcs.
Electrical connection
Connector: 1 x M12; Contacts: gold-plated
