MOQ: | 1 |
Price: | $400/piece |
Standard Packaging: | 150*50*50mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Product characteristics | |||||||||||
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1 Process connection threaded connection M18 x 1,5 internal thread |
|||||||||||
Application | |||||||||||
Special feature | Gold-plated contacts | ||||||||||
Media | water; glycol solutions; air; oils | ||||||||||
Note on media | low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C) | ||||||||||
high-viscosity oils with viscosity: > 40 mm²/s (40 °C) | |||||||||||
Medium temperature | [°C] | -20...90 | |||||||||
Pressure rating | [bar] | 100 | |||||||||
Pressure rating | [Mpa] | 10 | |||||||||
MAWP (for applications according to CRN) |
[bar] | 100 | |||||||||
![]() |
|||||||||||

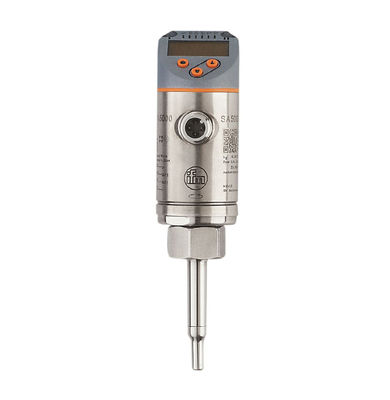

SA5000 | |||||||||||
Flow sensor | |||||||||||
SAD10XDBFRKG/US-100 | |||||||||||
Electrical data | |||||||||||
Operating voltage | [V] | 18...30 DC | |||||||||
Current consumption | [mA] | < 100 | |||||||||
Protection class | III | ||||||||||
Reverse polarity protection | yes | ||||||||||
Power-on delay time | [s] | 10 | |||||||||
Inputs / outputs | |||||||||||
Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||||||||
Outputs | |||||||||||
Total number of outputs | 2 | ||||||||||
Output signal | switching signal; analogue signal; frequency signal; IO-Link; (configurable) | ||||||||||
Electrical design | PNP/NPN | ||||||||||
Number of digital outputs | 2 | ||||||||||
Output function | normally open / normally closed; (parameterisable) | ||||||||||
Max. voltage drop switching output DC |
[V] | 2.5 | |||||||||
Permanent current rating of switching output DC |
[mA] | 250 | |||||||||
Number of analogue outputs | 1 | ||||||||||
Analogue current output | [mA] | 4...20; (scalable) | |||||||||
Max. load | [Ω] | 350 | |||||||||
Short-circuit protection | yes | ||||||||||
Type of short-circuit protection |
pulsed | ||||||||||
Overload protection | yes | ||||||||||
Frequency of the output [Hz] | 0...1000 | ||||||||||
Measuring/setting range | |||||||||||
Probe length L | [mm] | 45 | |||||||||
Operating mode | relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended) |
||||||||||
Note on factory setting | Operating mode: relative | ||||||||||
Liquids | |||||||||||
Setting range Greatest sensitivity |
[m/s] [m/s] |
0.04...6 0.04...3 |
|||||||||
Gases | |||||||||||
Setting range Greatest sensitivity |
[m/s] [m/s] |
0...200 2...100 |
|||||||||
Temperature monitoring | |||||||||||
Measuring range Resolution |
[°C] [°C] |
-20...90 0.2 |
|||||||||
![]() |
|||||||||||
SA5000 | |||||||||||
Flow sensor | |||||||||||
SAD10XDBFRKG/US-100 | |||||||||||
Accuracy / deviations Flow monitoring |
|||||||||||
Temperature drift | [cm/s x 1/K] | 0,003 m/s x 1/K (< 20 °C; > 70 °C) | |||||||||
Temperature gradient [K/min] | 100 | ||||||||||
Accuracy | ± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 20...70 °C; inlet length: 1.5 m; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mounting positions.) |
||||||||||
Repeatability | 0,05 m/s; (water; flow velocity: 0,05...3 m/s) | ||||||||||
Temperature monitoring | |||||||||||
Temperature drift ± 0,005 K/°C Accuracy [K] ± 0,3 / ± 1; (water; flow velocity: 0,3...3 m/s / air; flow velocity: > 10 m/s) |
|||||||||||
Response times Flow monitoring |
|||||||||||
Response time [s] | 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09) | ||||||||||
Temperature monitoring | |||||||||||
Dynamic response T05 / T09 [s] | 1,5 (T09); (water; flow velocity: 0,3...3 m/s) | ||||||||||
Software / programming | |||||||||||
Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; current/ frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour |
||||||||||
Interfaces | |||||||||||
Communication interface | IO-Link | ||||||||||
Transmission type | COM2 (38,4 kBaud) | ||||||||||
IO-Link revision | 1.1 | ||||||||||
SDCI standard | IEC 61131-9 | ||||||||||
Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis | ||||||||||
SIO mode | yes | ||||||||||
Required master port type | A | ||||||||||
Process data analogue | 2 | ||||||||||
Process data binary | 2 | ||||||||||
Min. process cycle time [ms] | 3 | ||||||||||
Supported DeviceIDs | Type of operation | DeviceID | |||||||||
Factory setting / ModE = (REL) | 533 | ||||||||||
ModE = (LIQU) | 540 | ||||||||||
ModE = (GAS) | 547 | ||||||||||
Operating conditions | |||||||||||
Ambient temperature [°C] | -40...80 | ||||||||||
Storage temperature Protection |
[°C] | -40...100 IP 65; IP 67 |
|||||||||
![]() |
|||||||||||
SA5000 | |||||||||||
Flow sensor | |||||||||||
SAD10XDBFRKG/US-100 | |||||||||||
Tests / approvals | |||||||||||
EMC | DIN EN 60947-5-9 | ||||||||||
Shock resistance | DIN EN 60068-2-27 | 50 g (11 ms) | |||||||||
Vibration resistance | DIN EN 60068-2-6 | 20 g (10...2000 Hz) | |||||||||
MTTF [years] | 132 | ||||||||||
UL approval | UL Approval no. | I003 | |||||||||
Mechanical data | |||||||||||
Weight [g] | 314 | ||||||||||
Materials | stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PBT-GF20; PBT-GF30 | ||||||||||
Materials (wetted parts) Process connection |
stainless steel (1.4404 / 316L); Gasket: FKM threaded connection M18 x 1,5 internal thread |
||||||||||
Displays / operating elements | |||||||||||
Display unit | 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³) | ||||||||||
Display | switching status | 2 x LED, yellow | |||||||||
measured values | alphanumeric display, red/green 4-digit | ||||||||||
Remarks | |||||||||||
Remarks | MW = measured value | ||||||||||
MEW = Final value of the measuring range | |||||||||||
Pack quantity | 1 pcs. |
