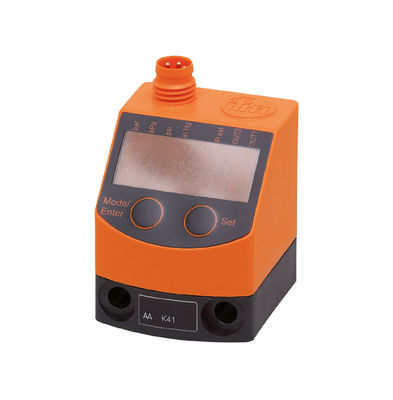

IFM Pressure sensor for pneumatics PQ7834 PQ-010-RHR18-QFPKG/AS

MOQ:	1
Price:	$207/piece
Standard Packaging:	805050mm
Delivery Period:	3 day
Payment Method:	T/T
Supply Capacity:	1piece in stock

Details Information

Product Description

Detail Information

Place of Origin

GERMANY

Brand Name

Certification

Model Number

PQ7834

System:

Gold-plated Contacts

Weight[g]:

Dimensions[mm]:

42 X 30 X 32

Product Description

Product characteristics
Number of inputs and outputs						Number of digital outputs: 2
Measuring range					-1...10 bar	-15...145 psi	-30...296 inHg	-100...1000 kPa
Process connection					threaded connection G 1/8 internal thread
Application
Special feature						Gold-plated contacts
Application					for industrial applications
Media					compressed air
Conditionally suitable for						other media on request
Medium temperature			[°C]			0...60
Min. bursting pressure					30 bar	435 psi	886 inHg	3000 kPa
Pressure rating					20 bar	290 psi	591 inHg	2000 kPa
Vacuum resistance [mbar]					-1000
Type of pressure						relative pressure; vacuum
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PQ7834-00 — 13.04.2023 —

PQ7834
Pressure sensor for		pneumatics
PQ-010-RHR18-QFPKG/AS/
Electrical data
Operating voltage			[V]			18...32 DC; (to SELV/PELV)
Current consumption			[mA]			< 50
Min. insulation resistance			[MΩ]			100; (500 V DC)
Protection class					III
Reverse polarity protection					yes
Overvoltage protection					yes; (< 40 V)
Power-on delay time			[s]		0.3
Integrated watchdog					yes
Inputs / outputs
Number of inputs and outputs						Number of digital outputs: 2
Outputs
Total number of outputs						2
Output signal						switching	signal
Electrical design						PNP
Number of digital outputs						2
Output function					normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC			[V]		2
Permanent current rating of switching output DC			[mA]		100
Switching frequency DC			[Hz]		< 200
Short-circuit protection					yes
Type of short-circuit protection					pulsed
Measuring/setting range
Measuring range					-1...10 bar	-15...145 psi	-30...296 inHg	-100...1000 kPa
Set point SP					-0.9...10 bar	-13...145 psi	-26...296 inHg	-90...1000 kPa
Reset point rP					-0.95...9.95 bar	-14...144 psi	-28...294 inHg	-95...995 kPa
Insteps of					0.05 bar	1 psi	2 inHg	5 kPa
Accuracy / deviations
Switch point accuracy [% of the span]						< ± 0,5
Repeatability	[% of the span]					< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]					< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]					< ± 0,25
Long-term stability						< ± 0,05; (per 6 months)
	[% of the span]
Temperature coefficient zero point [% of the span / 10 K]					0,2; (0...60 °C)
Temperature coefficient span [% of the span / 10 K]					0,2; (0...60 °C)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PQ7834-00 — 13.04.2023 —

PQ7834
Pressure sensor for		pneumatics
PQ-010-RHR18-QFPKG/AS/
Response times
Response time [ms]						< 2.5
Delay time programmable dS, dr				[s]	0; 0,002...5
Software / programming
Parameter setting options					hysteresis / window; normally open / normally closed; diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C]						0...70
Storage temperature [°C]						-25...85
Protection					IP 65
Tests / approvals
EMC					EN 61000-4-2 ESD		4 kV CD / 8 kV AD
					EN 61000-4-3 HF radiated		10 V/m
					EN 61000-4-4 Burst		2 kV
					EN 61000-4-5 Surge		0,5/1 kV
					EN 61000-4-6 HF conducted		10 V
Shock resistance					DIN IEC 68-2-27		50 g (11 ms)
Vibration resistance					DIN IEC 68-2-6		20 g (10...2000 Hz)
MTTF [years]					455
Pressure Equipment Directive					Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g]						84.5
Materials					PBT; FKM; polyester
Materials (wetted parts)					brass; FKM; silicon (coated); PBT
Min. pressure cycles					50 million
Process connection					threaded connection G 1/8 internal thread
Displays / operating elements
Display					Display unit		4 x LED, green
					switching status		2 x LED, yellow
					function display		alphanumeric display, 4-digit
					measured values		alphanumeric display, 4-digit
Display unit						bar; kPa; psi; inHg
Accessories
Accessories (optional)					mounting set for DIN rail: TH 35-7,5 / EN60715, E37340
					Thread extension: 1/8", E30075
					push-in air fitting for tube: Ø 6 mm, E30076
					push-in air fitting for tube: Ø 8 mm, E30077
