MOQ: | 1 |
Price: | $407/piece |
Standard Packaging: | 103 x 45 x 46mm |
Delivery Period: | 3 day |
Payment Method: | T/T |
Supply Capacity: | 1piece in stock |
Application | |||||||||||||
Measuring element | ceramic-capacitive pressure measuring | cell | |||||||||||
Application | for industrial applications | ||||||||||||
Media | liquids and gases | ||||||||||||
Medium temperature [°C] | -25...80 | ||||||||||||
Pressure rating | 75 bar | 1087 psi | 7.5 MPa | ||||||||||
Min. bursting pressure | 150 bar | 2175 psi | 15 MPa | ||||||||||
Type of pressure | relative pressure | ||||||||||||
Electrical data | |||||||||||||
Operating voltage [V] | 18...30 DC; (according to EN 50178 SELV/PELV) | ||||||||||||
Current consumption | [mA] | < 35 | |||||||||||
Min. insulation resistance [MΩ] | 100; (500 V DC) | ||||||||||||
Protection class | III | ||||||||||||
Reverse polarity protection | yes | ||||||||||||
Power-on delay time [s] | < 0.3 | ||||||||||||
Integrated watchdog | yes | ||||||||||||
Inputs / outputs | |||||||||||||
Number of inputs and outputs | Number of digital outputs: 2 | ||||||||||||
![]() |
|||||||||||||

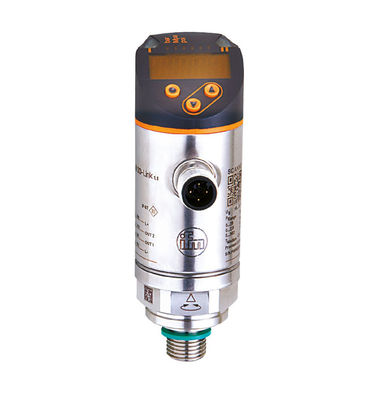

PN7594 | |||||||||||||
Pressure sensor with display | |||||||||||||
PN-010-REG14-QFRKG/US/ /V | |||||||||||||
Outputs | |||||||||||||
Total number of outputs | 2 | ||||||||||||
Output signal | switching signal; IO-Link; (configurable) | ||||||||||||
Electrical design | PNP/NPN | ||||||||||||
Number of digital outputs | 2 | ||||||||||||
Output function | normally open / closed; (configurable) | ||||||||||||
Max. voltage drop switching output DC |
[V] | 2.5 | |||||||||||
Permanent current rating of switching output DC |
[mA] | 150; (200 (...60 °C) 250 (...40 °C)) | |||||||||||
Switching frequency DC | [Hz] | < 170 | |||||||||||
Short-circuit protection | yes | ||||||||||||
Type of short-circuit protection |
yes (non-latching) | ||||||||||||
Overload protection | yes | ||||||||||||
Measuring/setting range | |||||||||||||
Measuring range | -1...10 bar | -14.5...145 psi | -0.1...1 MPa | ||||||||||
Set point SP | -0.9...10 bar | -13.5...145 psi | -0.09...1 MPa | ||||||||||
Reset point rP | -0.95...9.95 bar | -14...144.5 psi | -0.095...0.995 MPa | ||||||||||
Insteps of | 0.05 bar | 0.5 psi | 0.005 MPa | ||||||||||
Accuracy / deviations | |||||||||||||
Switch point accuracy | < ± 0,5 | ||||||||||||
[% of the span] | |||||||||||||
Repeatability | [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) | |||||||||||
Characteristics deviation [% of the span] |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) | ||||||||||||
Hysteresis deviation [% of the span] |
< ± 0,25 | ||||||||||||
Long-term stability [% of the span] |
< ± 0,05; (per 6 months) | ||||||||||||
Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,2; (-0...80 °C) | ||||||||||||
Temperature coefficient span | < ± 0,2; (-0...80 °C) | ||||||||||||
[% of the span / 10 K] | |||||||||||||
Reaction times | |||||||||||||
Response time | [ms] | < 3 | |||||||||||
Delay time programmable dS, dr |
[s] | 0...50 | |||||||||||
Software / programming | |||||||||||||
Parameter setting options | hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit |
||||||||||||
![]() |
|||||||||||||
PN7594 | |||||||||||||
Pressure sensor with display | |||||||||||||
PN-010-REG14-QFRKG/US/ /V | |||||||||||||
Interfaces | |||||||||||||
Communication interface | IO-Link | ||||||||||||
Transmission type | COM2 (38,4 kBaud) | ||||||||||||
IO-Link revision | 1.1 | ||||||||||||
SDCI standard | IEC 61131-9 | ||||||||||||
IO-Link device ID | 403 d / 00 01 93 h | ||||||||||||
Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis | ||||||||||||
SIO mode | yes | ||||||||||||
Required master port class | A | ||||||||||||
Process data analogue | 1 | ||||||||||||
Process data binary | 2 | ||||||||||||
Min. process cycle time [ms] | 2.3 | ||||||||||||
Operating conditions | |||||||||||||
Ambient temperature [°C] | -25...80 | ||||||||||||
Storage temperature Protection |
[°C] | -40...100 IP 65; IP 67 |
|||||||||||
Tests / approvals | |||||||||||||
EMC | DIN EN 61000-6-2 | ||||||||||||
DIN EN 61000-6-3 | |||||||||||||
Shock resistance | DIN EN 60068-2-27 | 50 g (11 ms) | |||||||||||
Vibration resistance | DIN EN 60068-2-6 | 20 g (10...2000 Hz) | |||||||||||
MTTF [years] | 224.01 | ||||||||||||
UL approval | UL approval number | J001 | |||||||||||
Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request | ||||||||||||
Mechanical data | |||||||||||||
Weight | [g] | 260.5 | |||||||||||
Material | stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC | ||||||||||||
Materials (wetted parts) | stainless steel (1.4404 / 316L); ceramics; FKM | ||||||||||||
Min. pressure cycles | 100 million | ||||||||||||
Tightening torque | [Nm] | 25...35; (recommended tightening torque; Depends on lubrication, sealand pressure rating) |
|||||||||||
Process connection | threaded connection G 1/4 external thread Internal threadM5 | ||||||||||||
Restrictor element integrated | no (can be retrofitted) | ||||||||||||
Displays / operating elements | |||||||||||||
Display unit | 3 x LED, green (bar, psi, MPa) | ||||||||||||
Display | Switching status | 2 x LED, yellow | |||||||||||
Measured values | alphanumeric display, red/green 4-digit |
