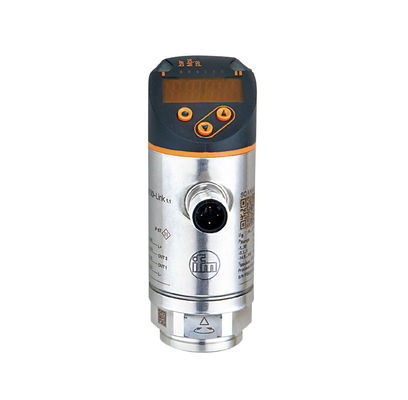

IFM Pressure sensor with display PN7099 PN-1-1BRER14-QFRKG
  • Name

IFM Pressure sensor with display PN7099 PN-1-1BRER14-QFRKG

MOQ: 1
Price: $414/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PN7099
System:
Gold-plated Contacts
Weight[g]:
235.5
Dimensions[mm]:
Ø 34 / L = 90.7
Product Description
Application
Measuring element ceramic-capacitive pressure measuring cell
Application   for industrial applications
Media   liquids and gases
Medium temperature [°C]   -25...80
Pressure rating   10000 mbar
30000 mbar		 145 psi
450 psi		   290 inHg
880 inHg		   1000 kPa
3000 kPa
Min. bursting pressure
Type of pressure     relative pressure
Electrical data
Operating voltage [V]   18...30 DC; (according to EN 50178 SELV/PELV)
Current consumption [mA]     < 35
Min. insulation resistance [MΩ]     100; (500 V DC)
Protection class   III
Reverse polarity protection     yes
Power-on delay time [s]   < 0.3
Integrated watchdog   yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
IFM Pressure sensor with display PN7099 PN-1-1BRER14-QFRKG 0ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN7099-01 — 24.06.2016 —

PN7099
Pressure sensor with display
PN-1-1BRER14-QFRKG/US/ /V
Outputs
Total number of outputs 2
Output signal switching signal; IO-Link; (configurable)
Electrical design   PNP/NPN
Number of digital outputs   2
Output function normally open / closed; (configurable)
Max. voltage drop switching
output DC		 [V]   2.5
Permanent current rating of
switching output DC		 [mA]   150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]   < 170
Short-circuit protection   yes
Type of short-circuit
protection		   yes (non-latching)
Overload protection   yes
Measuring/setting range
Measuring range   -1000...1000 mbar -14.5...14.5 psi -29.4...29.4 inHg   -100...100 kPa
Set point SP   -980...1000 mbar -14.3...14.5 psi -29...29.6 inHg   -98...100 kPa
Reset point rP   -990...990 mbar -14.4...14.4 psi -29.2...29.4 inHg   -99...99 kPa
Insteps of   10 mbar 0.1 psi 0.2 inHg   1 kPa
Accuracy / deviations
Switch point accuracy < ± 0,5
  [% of the span]
Repeatability [% of the span]   < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation
[% of the span]		   < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation
[% of the span]		   < ± 0,25

Long-term stability
[% of the span]		   < ± 0,05; (per 6 months)
Temperature coefficient zero
point
[% of the span / 10 K]		   < ± 0,2; (-0...80 °C)
Temperature coefficient span     < ± 0,2; (-0...80 °C)
  [% of the span / 10 K]
Reaction times
Response time [ms]   < 3
Delay time programmable dS,
dr		 [s]   0...50
Software / programming
Parameter setting options hysteresis / window; normally open / closed; switching
logic; switch-on/switch-off delay; Damping; Display unit
IFM Pressure sensor with display PN7099 PN-1-1BRER14-QFRKG 1 ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN7099-01 — 24.06.2016 —

PN7099
Pressure sensor with display
PN-1-1BRER14-QFRKG/US/ /V
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision   1.1
SDCI standard IEC 61131-9
IO-Link device ID 406 d / 00 01 96 h
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port class   A
Process data analogue   1
Process data binary   2
Min. process cycle time [ms]   2.3
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature
Protection		 [°C]   -40...100
IP 65; IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   224.01
UL approval   UL approval number J001
Pressure equipment directive   sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g]   232.5
Material     stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)   stainless steel (1.4404 / 316L); ceramics; FKM
Min. pressure cycles   100 million
Tightening torque [Nm]   25...35; (recommended tightening torque;
Depends on lubrication, sealand pressure rating)
Process connection   threaded connection G 1/4 Internal thread
Restrictor element integrated     no (can be retrofitted)
Displays / operating elements
  Display unit 4 x LED, green (bar, psi, kPa, inHg)
Display Switching status 2 x LED, yellow
  Measured values alphanumeric display, red/green 4-digit
Remarks
Pack quantity 1 pcs.
