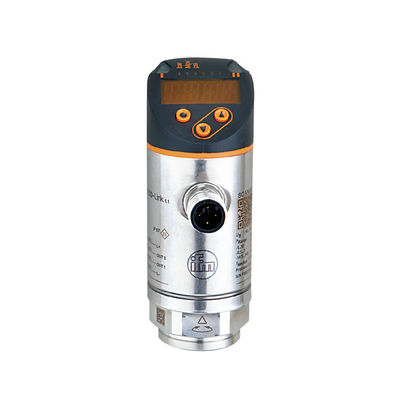

IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG

IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG

MOQ: 1
Price: $403/piece
Standard Packaging: 110*60*60mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PN7094
Electrical Design:
PNP/NPN
Weight[g]:
241.7
Dimensions[mm]:
Ø 34 / L = 90.7
Product Description
Electronic pressure monitor
M12 connector
Function programmable
Measuring element: ceramic-capacitive pressure measuring cell
Process connection: G ¼ I
2 outputs
OUT1 = switching output
OUT2 = switching output
4-digit alphanumeric display / alternating indication of red and green
Measuring range: -1...10 bar / -14.5...145 psi / -0.1...1.0 MPa
Application
Application Type of pressure: relative pressure
  liquids and gases of the fluid group 2 according to Article 9 of the Pressure Equipment
    Directive (PED)
    For gas applications > 25 bar: select PN7x7x series
Pressure rating IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 0 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 1 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 2 75 bar 1087 psi 7.5 MPa
Bursting pressure min. IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 3 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 4 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 5 150 bar 2175 psi 15 MPa
Medium temperature [°C]   -25...80
Electrical data
Electrical design DC PNP/NPN
Operating voltage [V]   18...30 DC ¹)
Current consumption [mA]   < 35
Insulation resistance [MΩ]   > 100 (500 V DC)
Protection class     III
Reverse polarity protection   yes
Outputs
Output 2 outputs
  OUT1 = switching output
  OUT2 = switching output
Output function IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 6 2 x normally open / closed programmable

PN7094
PN-010-RER14-QFRKG/US/ /V Pressure sensors
Current rating [mA]   150; 200 (...60 °C); 250 (...40 °C)
Voltage drop [V]   < 2.5
Short-circuit protection     pulsed
Overload protection     yes
Switching frequency [Hz]   ≤ 170
Measuring / setting range
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 7 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 8 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 9 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 10Measuring range -1...10 bar -14.5...145 psi -0.1...1.0 MPa
Setting range
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 11 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 12 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 13 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 14 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 15 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 16 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 17 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 18 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 19 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 20 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 21 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 22Set point, SP -0.90...10 bar -13.5...145 psi -0.09...1 MPa
Reset point, rP -0.95...9.95 bar -14...144.5 psi -0.095...0.995 MPa
insteps of 0.05 bar 0.5 psi 0.005 MPa
Accuracy / deviations
Accuracy / deviations
(in % of the span)
Switch point accuracy < ± 0.5
Characteristics deviation *)   < ± 0.25 (BFSL) / < ± 0.5 (LS)
Hysteresis   < ± 0.25
Repeatability **)   < ± 0.1
Long-term stability ***)   < ± 0.05
Temperature coefficients (TEMPCO) in the temperature range -25...80° C (in % of the span per 10 K)
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 23Greatest TEMPCO of the zero point 0.2
Greatest TEMPCO of the span 0.2
Reaction times
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 24Power-on delay time [s] < 0.3
Min. response time switching [ms]   < 3
output
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 25Delay time programmable dS, dr [s] 0...50
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 26Integrated watchdog yes
Software / programming
Programming options hysteresis / window function; NO / NC; output polarity; on delay, off delay; damping;
display unit
Interfaces
IO-Link device
Transfer type COM2 (38.4 kBaud)
IO-Link revision   1.1
SDCI standard   IEC 61131-9
IO-Link device ID   403 d / 00 01 93 h
Profiles   Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port class   A
Process data analogue   1
Process data binary   2
Min. process cycle time [ms]   2.3
Environment
Ambient temperature [°C]
Storage temperature [°C]
  -25...80
  -40...100
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 27
PN7094
PN-010-RER14-QFRKG/US/ /V Pressure sensors
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 28 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 29Protection IP 65 / IP 67
Tests / approvals
Pressure equipment directive Sound engineering practice
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 60068-2-27   50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6   20 g (10...2000 Hz)
MTTF [Years]       224.01
UL approval number       J001
Mechanical data
Process connection G ¼ I
Materials (wetted parts) 1.4404; ceramics; FKM
Housing materials 1.4404; PBT+PC-GF 30; PBT-GF 20; PC
Switching cycles min.   100 million
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 30Tightening torque [Nm] 25...35 (recommended tightening torque²)
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 31Weight [kg]   0.234
Displays / operating elements
Display Display unit 3 x LED green (bar, psi, MPa)
Switching status 2 x LED yellow
4-digit alphanumeric display / alternating indication
Measured values of red and green
Electrical connection
IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 32 IFM Pressure sensor with display PN7094 PN-010-RER14-QFRKG 33Connection M12 connector; Gold-plated contacts
Wiring
 Core colours
BK black
BN brown
BU blue
WH white
      OUT1: switching output or IO-Link
      OUT2: switching output
      Colours to DIN EN 60947-5-2
Remarks
Remarks ¹) to EN50178, SELV, PELV
  *) BFSL = Best Fit Straight Line / LS = Limit Value Setting
**) with temperature fluctuations < 10 K
***) in% of the span / 6 months
  ²) Depends on lubrication, sealand pressure rating
Pack quantity [piece]   1
