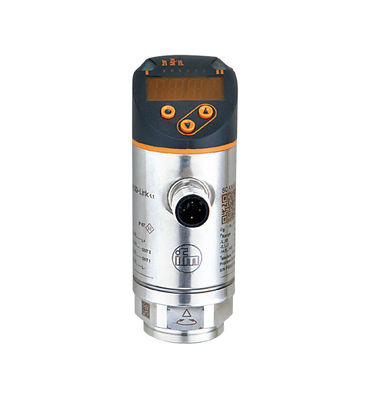

IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG
  • Name

IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG

MOQ: 1
Price: $403/piece
Standard Packaging: 103 x 45 x 46mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PN7071
Weight[g]:
239.2
Dimensions[mm]:
Ø 34 / L = 90.7
Product Description
Product characteristics
Output signal switching signal; IO-Link; (configurable)
Measuring range   0...250 bar 0...3620 psi 0...25 MPa
Process connection   threaded connection G 1/4 internal thread
Application
Special feature Gold-plated contacts
Measuring element metallic thin film cell
Application for industrial applications
Media   liquids and gases
Medium temperature [°C]     -25...80
Min. bursting pressure     1100 bar 15950 psi 110 MPa
Pressure rating     500 bar 7250 psi 50 Mpa
Vacuum resistance [mbar]   -1000
Type of pressure       relative pressure
IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 0ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN7071-02 — 27.11.2019 —

PN7071
Pressure sensor with display
PN-250-SER14-QFRKG/US/ /V
Electrical data
Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
Current consumption [mA]     < 35
Min. insulation resistance [MΩ]   100; (500 V DC)
Protection class     III
Reverse polarity protection     yes
Power-on delay time [s]   < 0.3
Integrated watchdog   yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Outputs
Total number of outputs 2
Output signal switching signal; IO-Link; (configurable)
Electrical design   PNP/NPN
Number of digital outputs   2
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching
output DC		 [V]   2.5
Permanent current rating of
switching output DC		 [mA]   150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]   < 170
Short-circuit protection   yes
Type of short-circuit
protection		   pulsed
Overload protection   yes
Measuring/setting range
IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 1 IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 2 IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 3 IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 4 Measuring range 0...250 bar 0...3620 psi 0...25 MPa
Factory setting / CMPT = 2
Set point SP   2...250 bar   40...3620 psi   0.2...25 MPa
Reset point rP   1...249 bar 20...3600 psi 0.1...24.9 MPa
Min. difference between SP
and rP		   2 bar 20 psi 0.2 MPa
  1 bar   0.1 MPa
Insteps of   IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 5 20 psi
Status_B High Resolution / CMPT = 3
Set point SP   2...250 bar   30...3626 psi   0.2...25 MPa
Reset point rP   1...249 bar 12...3608 psi 0.1...24.9 MPa
Min. difference between SP
and rP		   2 bar 19 psi 0.2 MPa
  1 bar   0.1 MPa
Insteps of   IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 6 1 psi
Accuracy / deviations
Switch point accuracy
[% of the span]		   < ± 0,5
Repeatability [% of the span]   < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation   < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
  [% of the span]
Hysteresis deviation     < ± 0,25
IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 7ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN7071-02 — 27.11.2019 —

PN7071
Pressure sensor with display
PN-250-SER14-QFRKG/US/ /V
[% of the span]
Long-term stability
[% of the span]		   < ± 0,05; (per 6 months)
Temperature coefficient zero
point
[% of the span / 10 K]		   0,2; (-25...80 °C)
Temperature coefficient span     0,2; (-25...80 °C)
  [% of the span / 10 K]
Response times
Response time [ms]   < 3
Delay time programmable dS,
dr		 [s]   0...50
Software / programming
Parameter setting options hysteresis / window; normally open / normally closed; switching
logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
SIO mode yes
Required master port type   A; (when pin 2 not connected: B)
Process data analogue   1
Process data binary     2
Supported DeviceIDs   Type of operation DeviceID
  Factory setting / CMPT = 2 400
  Status_B High Resolution / CMPT = 3 598
  PN7001 308
Note   For further information please see the IODD PDF file under "Downloads"
Factory setting / CMPT = 2
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time [ms]   2.3
IO-Link resolution pressure [bar]   1
IO-Link resolution pressure [MPa]     0.1
IO-Link process data
(cyclical)		   function bit length
  pressure 14
  binary switching information 2
IO-Link functions (acyclical)     application specific tag
IFM Pressure sensor with display PN7071 PN-250-SER14-QFRKG 8 ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN7071-02 — 27.11.2019 —

PN7071
Pressure sensor with display
PN-250-SER14-QFRKG/US/ /V
Status_B High Resolution / CMPT = 3
Profiles   Smart Sensor ED2: Digital Measuring Sensor
(0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time [ms]   3
IO-Link resolution pressure [bar]   0.1
IO-Link resolution pressure [MPa]   0.02
IO-Link process data
(cyclical)		   function bit length
  pressure 16
  device status 4
  binary switching information 2
IO-Link functions (acyclical)   application specific tag
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature
Protection		 [°C]   -40...100
IP 65; IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   214
UL approval   UL Approval no. J003
Pressure Equipment Directive   Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g]   239.2
Materials     1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)   1.4542 (17-4 PH / 630)
Min. pressure cycles   100 million
Tightening torque [Nm]   25...35; (recommended tightening torque; depends on lubrication, sealand pressure rating)
Process connection   threaded connection G 1/4 internal thread
Restrictor element integrated   no (can be retrofitted)
Displays / operating elements
  Display unit 3 x LED, green (bar, psi, MPa)
Display switching status 2 x LED, yellow
  measured values alphanumeric display, red/green 4-digit
Remarks
Pack quantity 1 pcs.
Electrical connection
