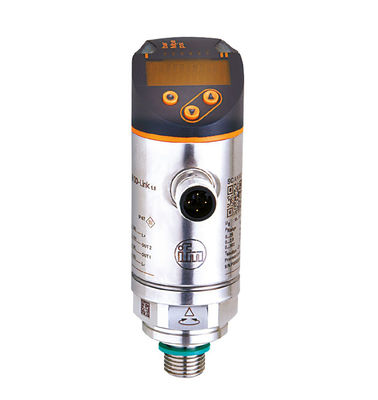

ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG
  • Name

ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG

MOQ: 1
Price: $468/piece
Standard Packaging: 80*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PN3594
System:
Gold-plated Contacts
Weight[g]:
242.15
Product Description
Application
Measuring element ceramic-capacitive pressure measuring cell
Media group 2 fluids according to the Pressure Equipment Directive (PED)
Conditionally suitable for   group 1 fluids on request
Medium temperature [°C]     -25...80
Pressure rating   75 bar 1087 psi 7.5 MPa
Min. bursting pressure   150 bar 2175 psi 15 MPa
Vacuum resistance [mbar]     -1000
Type of pressure       relative pressure
Electrical data
Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
Current consumption [mA]     < 35
Min. insulation resistance [MΩ]   100; (500 V DC)
Protection class     III
Reverse polarity protection   yes
Power-on delay time [s]   0.3
Integrated watchdog   yes
Inputs / outputs
Number of inputs and outputs   Number of digital outputs: 1; Number of analog outputs: 1
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG 0ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN3594-01 — 24.05.2016 —

PN3594
Pressure sensor with display
PN-010-REG14-MFRKG/US/ /V
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design   PNP
Number of digital outputs   1
Output function normally open / closed; (configurable)
Max. voltage drop switching
output DC		 [V]   2.5
Permanent current rating of
switching output DC		 [mA]   150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]   < 170
Number of analog outputs   1
Analog current output [mA]   4...20; (0 bar = 4 mA; 10 bar = 20 mA)
Max. load [Ω]   500
Analog voltage output [V]   0...10; (0 bar = 0 V; 10 bar = 10 V)
Min. load resistance [Ω]   2000
Short-circuit protection   yes
Type of short-circuit
protection		   yes (non-latching)
Overload protection     yes
Measuring/setting range
Measuring range   -1...10 bar -14.5...145 psi -0.1...1 MPa
Set point SP   -0.9...10 bar -13.5...145 psi -0.09...1 MPa
Reset point rP   -0.95...9.95 bar -14...144.5 psi > -0.095 MPa
Insteps of   0.05 bar 0.5 psi 0.005 MPa
Accuracy / deviations
Switch point accuracy < ± 0,5
  [% of the span]
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation
[% of the span]		   < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)

Hysteresis deviation
[% of the span]		   < ± 0,25
Long-term stability
[% of the span]		   < ± 0,05; (per 6 months)

Temperature coefficient zero
point
[% of the span / 10 K]		   < ± 0,2; (-0...80 °C)
Temperature coefficient span
[% of the span / 10 K]		   < ± 0,2; (-0...80 °C)
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG 1 ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN3594-01 — 24.05.2016 —

PN3594
Pressure sensor with display
PN-010-REG14-MFRKG/US/ /V
Reaction times
Response time [ms]   < 3
Delay time programmable dS,
dr		 [s]   0...50
Damping for the switching
output dAP		 [s]   0...4
Damping for the analog
output dAA		 [s]   0...4
Max. response time analog
output		 [ms]   3
Software / programming
Parameter setting options hysteresis / window; normally open / closed; switch-on/
switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interface IO-Link
Transmission type COM2
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 431 d / 00 01 afh
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port class   A
Process data analogue   1
Process data binary   1
Min. process cycle time [ms]   2.3
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature
Protection		 [°C]   -40...100
IP 65; IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   181
UL approval   UL approval number J004
Pressure equipment directive   sound engineering practice
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG 2 ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN3594-01 — 24.05.2016 —

PN3594
Pressure sensor with display
PN-010-REG14-MFRKG/US/ /V
Mechanical data
Weight [g]   281.5
Material     stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)     stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM
Min. pressure cycles   100 million
Tightening torque [Nm]   25...35; (recommended tightening torque;
Depends on lubrication, sealand pressure rating)
Process connection     threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal threadM5
Process connection sealing     FKM (to DIN 3869)
Restrictor element integrated   no (can be retrofitted)
Displays / operating elements
  Display unit 3 x LED, green (bar, psi, MPa)
Display Switching status 1 x LED, yellow
  Measured values alphanumeric display, red/green 4-digit
Remarks
Pack quantity 1 pcs.
Electrical connection
Tags:

Ifm Industrial pressure sensors,

Ifm Submersible pressure / level transmitters,

Ifm Pressure transmitters

Recommended Products
PM1705 - Flush pressure sensor - ifm - ifm electronic Resistant to high-pressure cleaning with aggressive cleaning agents

PM1705 - Flush pressure sensor - ifm - ifm electronic Resistant to high-pressure cleaning with aggressive cleaning agents

Contact Now
PI1709 - Flush pressure sensor with display - ifm - ifm electronic Resistant to high-pressure cleaning with aggressive cleaning agents

PI1709 - Flush pressure sensor with display - ifm - ifm electronic Resistant to high-pressure cleaning with aggressive cleaning agents

Contact Now
PI2715 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating

PI2715 - Flush pressure sensor with display - ifm - ifm electronic High temperature resistance and high protection rating

Contact Now
IFM Inductive Sensor IE5312 Connector 1 X M12 Ifm Electronic Inductive Threaded Barrel

IFM Inductive Sensor IE5312 Connector 1 X M12 Ifm Electronic Inductive Threaded Barrel

Contact Now
IFM Inductive Sensor IES203 IEB3006-BPKG/V4A/K1/2M/PUR Industrial Part No IES203

IFM Inductive Sensor IES203 IEB3006-BPKG/V4A/K1/2M/PUR Industrial Part No IES203

Contact Now
IE5366 Ifm Electronic Inductive Threaded Barrel Inductive Inductive Sensor IE5366

IE5366 Ifm Electronic Inductive Threaded Barrel Inductive Inductive Sensor IE5366

Contact Now
IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338

IFM Inductive Sensor IE5338 Threaded Type Connector 1 X M8 | Part No IE5338

Contact Now
IFM Inductive Sensor IE5329 Industrial Automation And Controls Part No IE5329 Connector 1 X M8

IFM Inductive Sensor IE5329 Industrial Automation And Controls Part No IE5329 Connector 1 X M8

Contact Now
IFM Inductive Sensor IE5318 IEK3002BBPKG/OELVER/US-104 Connector 1 X M12 Part No IE5318

IFM Inductive Sensor IE5318 IEK3002BBPKG/OELVER/US-104 Connector 1 X M12 Part No IE5318

Contact Now
IFM Inductive Sensor ID5046 IDE3060-FPKG Connector 1 X M12 | Part No ID5046

IFM Inductive Sensor ID5046 IDE3060-FPKG Connector 1 X M12 | Part No ID5046

Contact Now
IFM GM705S Fail Safe Inductive Sensor Ifm Ifm Electronic Connector 1 X M12

IFM GM705S Fail Safe Inductive Sensor Ifm Ifm Electronic Connector 1 X M12

Contact Now

products
PRODUCTS DETAILS
Products

PLC Interface Module

B&R PLC Module

Allen Bradley PLC Module

Beckhoff PLC Modules

Georg Fischer Piping System

Bently Nevada Extension Cable

Honeywell Automation Module

SICK Laser Sensor

Harting Connector Han

Phoenix Contact Housing

Hokuyo Laser Sensor

Yokogawa Module

Keyence Vision Systems

Euchner Safety Switch

IFM Pressure Sensor

Foxboro DCS System
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG
  • Name
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG
MOQ: 1
Price: $468/piece
Standard Packaging: 80*50*50mm
Delivery Period: 3 day
Payment Method: T/T
Supply Capacity: 1piece in stock
Detail Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
IFM
Certification
3C
Model Number
PN3594
System:
Gold-plated Contacts
Weight[g]:
242.15
Minimum Order Quantity:
1
Price:
$468/piece
Packaging Details:
80*50*50mm
Delivery Time:
3 day
Payment Terms:
T/T
Supply Ability:
1piece in stock
Product Description
Application
Measuring element ceramic-capacitive pressure measuring cell
Media group 2 fluids according to the Pressure Equipment Directive (PED)
Conditionally suitable for   group 1 fluids on request
Medium temperature [°C]     -25...80
Pressure rating   75 bar 1087 psi 7.5 MPa
Min. bursting pressure   150 bar 2175 psi 15 MPa
Vacuum resistance [mbar]     -1000
Type of pressure       relative pressure
Electrical data
Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
Current consumption [mA]     < 35
Min. insulation resistance [MΩ]   100; (500 V DC)
Protection class     III
Reverse polarity protection   yes
Power-on delay time [s]   0.3
Integrated watchdog   yes
Inputs / outputs
Number of inputs and outputs   Number of digital outputs: 1; Number of analog outputs: 1
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG 0ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN3594-01 — 24.05.2016 —

PN3594
Pressure sensor with display
PN-010-REG14-MFRKG/US/ /V
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design   PNP
Number of digital outputs   1
Output function normally open / closed; (configurable)
Max. voltage drop switching
output DC		 [V]   2.5
Permanent current rating of
switching output DC		 [mA]   150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]   < 170
Number of analog outputs   1
Analog current output [mA]   4...20; (0 bar = 4 mA; 10 bar = 20 mA)
Max. load [Ω]   500
Analog voltage output [V]   0...10; (0 bar = 0 V; 10 bar = 10 V)
Min. load resistance [Ω]   2000
Short-circuit protection   yes
Type of short-circuit
protection		   yes (non-latching)
Overload protection     yes
Measuring/setting range
Measuring range   -1...10 bar -14.5...145 psi -0.1...1 MPa
Set point SP   -0.9...10 bar -13.5...145 psi -0.09...1 MPa
Reset point rP   -0.95...9.95 bar -14...144.5 psi > -0.095 MPa
Insteps of   0.05 bar 0.5 psi 0.005 MPa
Accuracy / deviations
Switch point accuracy < ± 0,5
  [% of the span]
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation
[% of the span]		   < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)

Hysteresis deviation
[% of the span]		   < ± 0,25
Long-term stability
[% of the span]		   < ± 0,05; (per 6 months)

Temperature coefficient zero
point
[% of the span / 10 K]		   < ± 0,2; (-0...80 °C)
Temperature coefficient span
[% of the span / 10 K]		   < ± 0,2; (-0...80 °C)
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG 1 ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN3594-01 — 24.05.2016 —

PN3594
Pressure sensor with display
PN-010-REG14-MFRKG/US/ /V
Reaction times
Response time [ms]   < 3
Delay time programmable dS,
dr		 [s]   0...50
Damping for the switching
output dAP		 [s]   0...4
Damping for the analog
output dAA		 [s]   0...4
Max. response time analog
output		 [ms]   3
Software / programming
Parameter setting options hysteresis / window; normally open / closed; switch-on/
switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interface IO-Link
Transmission type COM2
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 431 d / 00 01 afh
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode   yes
Required master port class   A
Process data analogue   1
Process data binary   1
Min. process cycle time [ms]   2.3
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature
Protection		 [°C]   -40...100
IP 65; IP 67
Tests / approvals
EMC   DIN EN 61000-6-2
  DIN EN 61000-6-3
Shock resistance   DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance   DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]   181
UL approval   UL approval number J004
Pressure equipment directive   sound engineering practice
ifm Pressure sensor with display PN3594 PN-010-REG14-MFRKG 2 ifmefector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — PN3594-01 — 24.05.2016 —

PN3594
Pressure sensor with display
PN-010-REG14-MFRKG/US/ /V
Mechanical data
Weight [g]   281.5
Material     stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)     stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM
Min. pressure cycles   100 million
Tightening torque [Nm]   25...35; (recommended tightening torque;
Depends on lubrication, sealand pressure rating)
Process connection     threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal threadM5
Process connection sealing     FKM (to DIN 3869)
Restrictor element integrated   no (can be retrofitted)
Displays / operating elements
  Display unit 3 x LED, green (bar, psi, MPa)
Display Switching status 1 x LED, yellow
  Measured values alphanumeric display, red/green 4-digit
Remarks
Pack quantity 1 pcs.
Electrical connection
